Clay soil drying equipment oil sludge treatment rotary drum dryer

heat source, feeding machines, feeder, rotary drum, discharging machine, draft fan, discharge and power distribution cabinet.

Technical Feature

  • New
  • Drum Drying Equipment
  • Henan, China (Mainland)
  • ZJN
  • ZJN ST sludge treatment equipment
  • 380V/50HZ
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$13~20

PRIMARY PARAMETERS

Condition
New
Type
Drum Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
ZJN
Model Number
ZJN ST sludge treatment equipment
Voltage
380V/50HZ
Power(W)
30KW
Dimension(L*W*H)
1380*2500*2500
Weight
80000KG
Certification
ISO9001
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Patent product
Yes
Application
drying high viscosity and humidity material treatment
Material Type
high viscosity and humidity material
Technology
Triple-Pass drying technology
Heat source
coal,LPG,CH4,etc
Color
customized
Capacity
customized
Cylinder number
3
Raw material
Stainless steel

DETAIL DESCRIPTION

if you have any other questions,please contact us feel free

Product Description

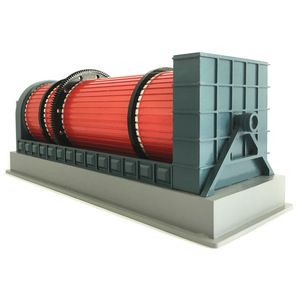

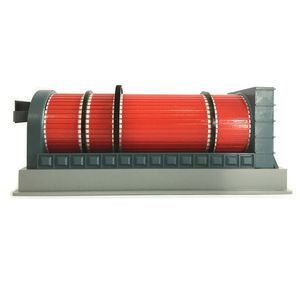

 ZJN Clay Soil Dryer Equipment Introduction:

Product Name

Clay Soil Dryer

Producer

Jiaozuo ZJN Environmental Protection Equipment Technology Co.,Ltd

Voltage(v)

380V or customized

Total motor power(kw)

According to Materials Moisture

Early moisture(%)

80±5% (Clay Soil before drying)

Final moisture(%)

10%(adjusting)

Capacity(t/d)

10t-200t

Suitable materials

All kinds of Clay Soil

Application

Clay Soil drying

Usage

Reduce Material's Moisture

Weight(ton)

50t

Matching Products

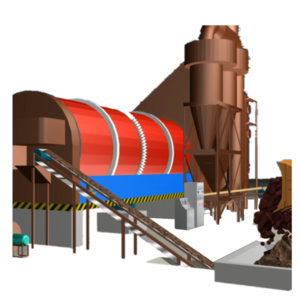

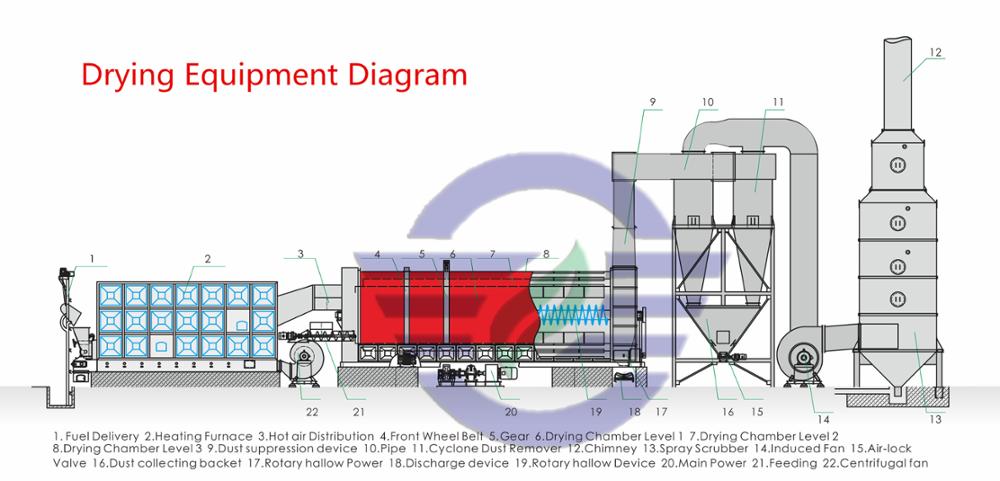

heat source, feeding machines, feeder, rotary drum, discharging machine, draft fan, discharge and power distribution cabinet.

Core Technology
  1. “Triple Level Drying Core®”,use rotary harrow and auto down and convection unique key patented technology.
  2. “Mechanical Material Guiding”technology, the material can move forward or back under the guiding system.

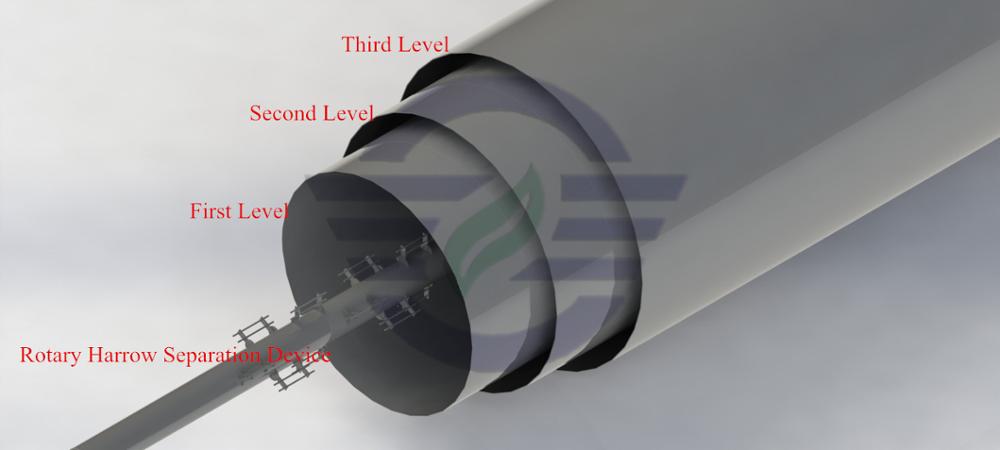

  3. Exclusive patented technology:Triple Pass Multi-level, the main structure is consists of three different metal steel cylinder with different diameter, it can get a bigger evaporation area, and drying faster,
  4. “Low-Temperature Larger Air Flow”drying technology, the wet material can get a larger and fast evaporation performance under a larger Low-Temperature and air flow.
  5. “Auto-Reciprocating Feeding Back ”technology.based on this the wet and the dry material can get a fully mixture and rolling in the meantime,and separated into scattered condition.
  6. “Pros And Cons Material Spreading System”,through pros and cons material system, the materials can make pros and cons rolling movements,forming many material falls in the drum,so all material can fully spreaded inside the drum which fully contact with the hot air.in another words, there’s no dead spots for the material inside the drum.
  7. “Negative pressure”working condition, clean work site and operating reliably.
  8.
Cases video

           Video Link Address                                        Application

https://youtu.be/PdPS8Y6eGLs                    Clay Soil Drying

https://youtu.be/wxomOVlRlpk                  Alcohol Residue Drying

https://youtu.be/CMjHZfc32fQ               Electricplating Clay Soil Drying

https://youtu.be/C3blzL2om5Y                 Leather Clay Soil Drying

https://youtu.be/eNd4mjc9rTI                 Papermaking Clay Soil Drying

https://youtu.be/f5OiKpBh96w                 Chemical Clay Soil Drying

https://youtu.be/BFPEf3gpgFA               3D Operating Principle Video

Customers

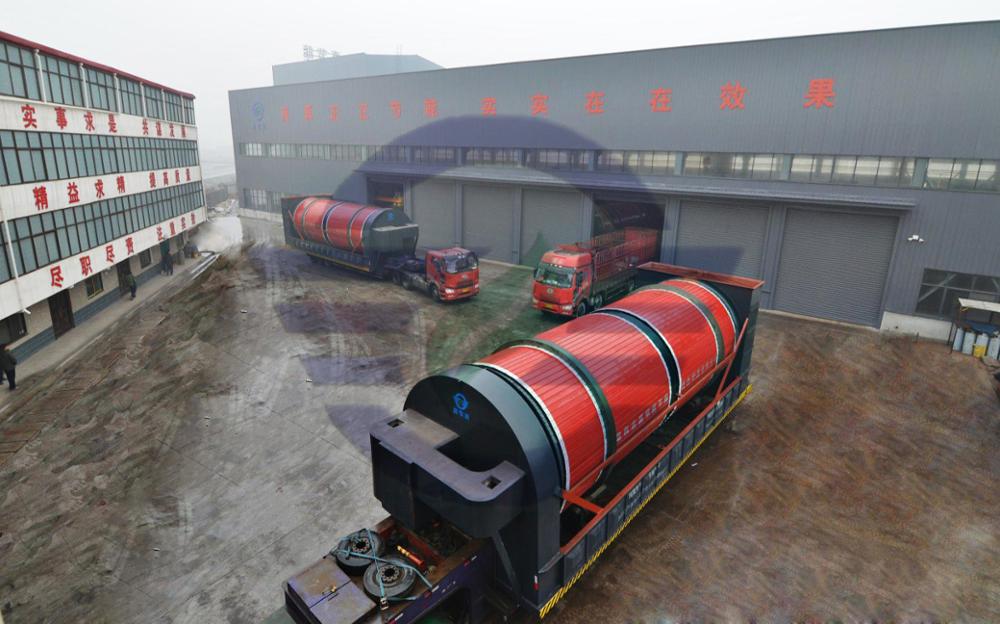

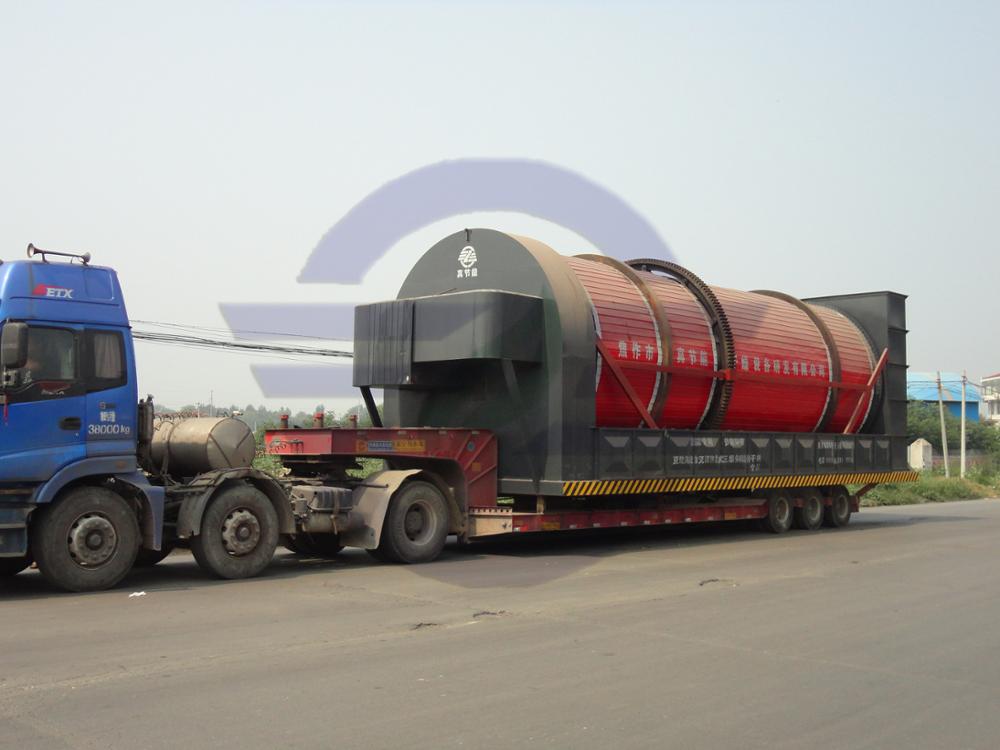

Packaging & Shipping


Our Services

Our Services
1.Pre-sale services:
We provide you with the prophase plan,process flow design and manufacture equipment according to your special demand.
2.Sale service:
Send technicians to the jobsite for guiding the installation and adjustment,training operators and finishing the check and accept together with you.
3.After-sale service:
To establish long term friendship, we will regularly pay return visit to customers.Supplying technique,buiding design, instruction,installation and debugging for free.
4.We provide one year warranty to make sure your machine runs consistenly.

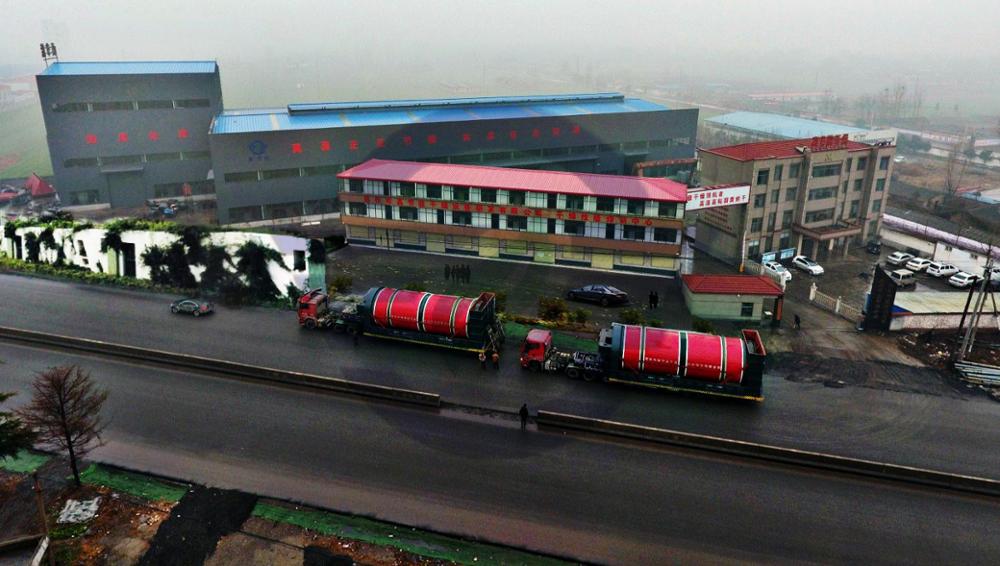

Company Information

ZJN© COMPANY, a leading manufacture specialized in the manufacturing and R&D of Clay Soil drying / Clay Soil processing equipment ,with the newest Clay Soil drying technology and drying techniques, have been serving many customers for about 20 years.

we are located in Jiaozuo City, Henan Province, China, very near by to the Tianjin and Qingdao Port, only 3 hours to there.

 we only do one thing that foucing on the R&D and Solutions about the Industrial waste material drying & recycling,environmental equipments.

hope can work with you.if you have any other questions,

please contact us feel free.
