28 years experiences manufacturer roller drum dryer
Rotary dryer:
Drier is a kind of machine with a rotating cylinde which is a little bit incline.It
is widly used in building material, metallurgy, chemical industuy, cement to dry the slag, limestone, coal powder,clay,etc.it is simply structure, polished manufacture, high capacity, low cinsumption, conveninent transportation and so on.
Rotary drum dyier is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc.
Principle of operation:
the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed. Rotary dryer is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries. Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.
Main technical parameters of dryer:
model | The diameter | The length | Slope(°) | Speed | Power | Volume |
(mm) | (m) | (r/min) | (kw) | (m3) | ||
0.6×8-12 | 600 | 8-12 | 3-5 | 8 | 4 | 2.26 |
0.8×10-10 | 800 | 10-12 | 3-5 | 7.2 | 4 | 5.02 |
1.0×10-12 | 1000 | 10-12 | 3-5 | 6.73 | 5.5 | 7.85 |
1.2×12-18 | 1200 | 12-18 | 3-5 | 5.8 | 11-15 | 13.31 |
1.5×12-18 | 1500 | 12-18 | 3-5 | 4.8 | 15-22 | 21.2 |
1.8×12-18 | 1800 | 12-18 | 3-5 | 3.2 | 185-30 | 48.22 |
2.2×12-22 | 2200 | 12-22 | 3-5 | 3 | 22-30 | 70.43 |
2.8×15-24 | 2800 | 15-24 | 3-5 | 2.59 | 30-55 | 147.8 |

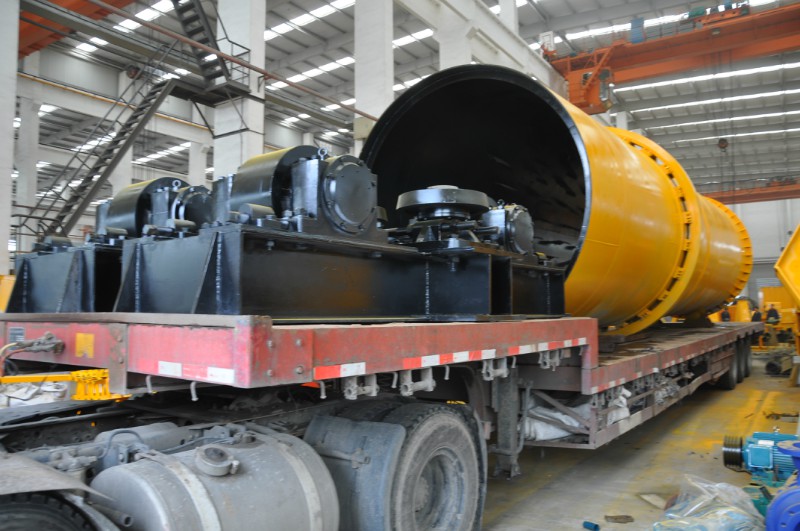

Packing and Loading: These machines are processed to be rustproof and moisture proof before delivery. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.

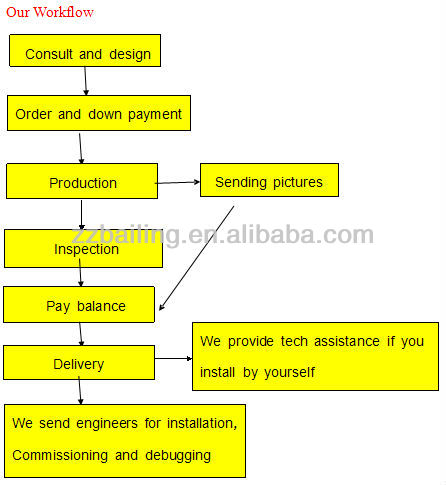

Introduction
1. Pre-sale services:
Act as a good adviser and assistant of clients
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients;
2.Services during the sale:
Respect clients; considering every aspect and details for our customers
(1) check products ahead of delivery;
(2)keep costumers informed about the delivery process
3. After-sale services
We promise excellent after-sale service!
(1) Assist clients to prepare for the first construction scheme;

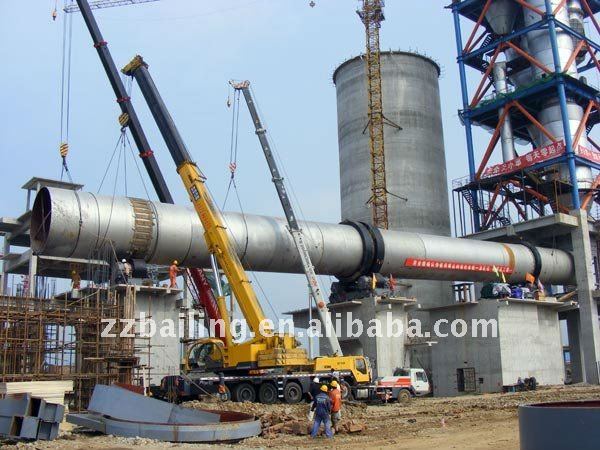

(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4)Take initiative to eliminate the troubles rapidly at site;
(5)Provide maintenance for big items.
And other rational requirement brought up by our clients.
