Rotary drier is a kind of dryer with a rotating cylinde which is a little bit incline.
Uasge: It is widly used in building material, metallurgy, chemical industuy, cement to dry the slag, limestone, coal powder,clay,etc.
Structure: it is simply structure, polished manufacture, high capacity, low cinsumption, conveninent transportation and so on.
Rotary drier is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc.
Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed. Rotary dryer is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries. Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.
Main tech parameters:
model | The diameter (mm) | The length (m) | Slope(°) | Speed (r/min) | Power (kw) | Volume (m3) |
0.6×8-12 | 600 | 8-12 | 3-5 | 8 | 4 | 2.26 |
0.8×10-10 | 800 | 10-12 | 3-5 | 7.2 | 4 | 5.02 |
1.0×10-12 | 1000 | 10-12 | 3-5 | 6.73 | 5.5 | 7.85 |
1.2×12-18 | 1200 | 12-18 | 3-5 | 5.8 | 11-15 | 13.31 |
1.5×12-18 | 1500 | 12-18 | 3-5 | 4.8 | 15-22 | 21.2 |
1.8×12-18 | 1800 | 12-18 | 3-5 | 3.2 | 185-30 | 48.22 |
2.2×12-22 | 2200 | 12-22 | 3-5 | 3 | 22-30 | 70.43 |
2.8×15-24 | 2800 | 15-24 | 3-5 | 2.59 | 30-55 | 147.8 |

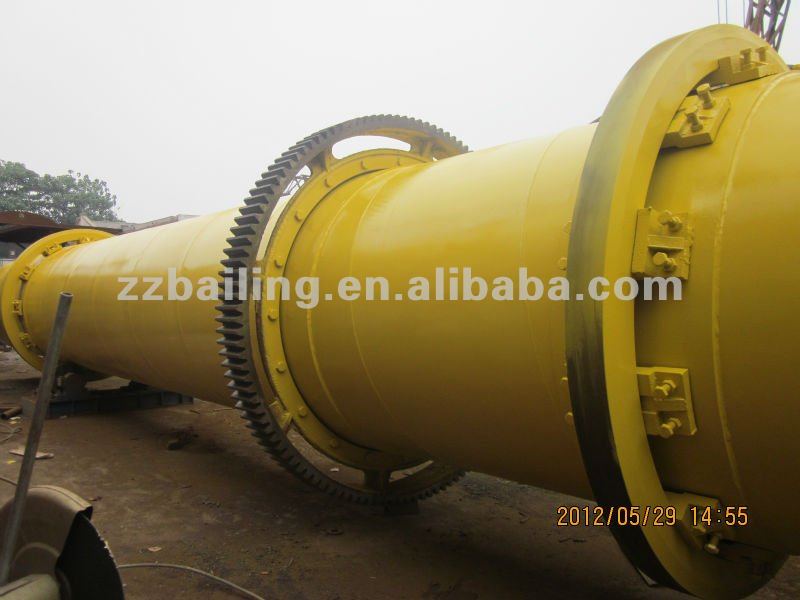

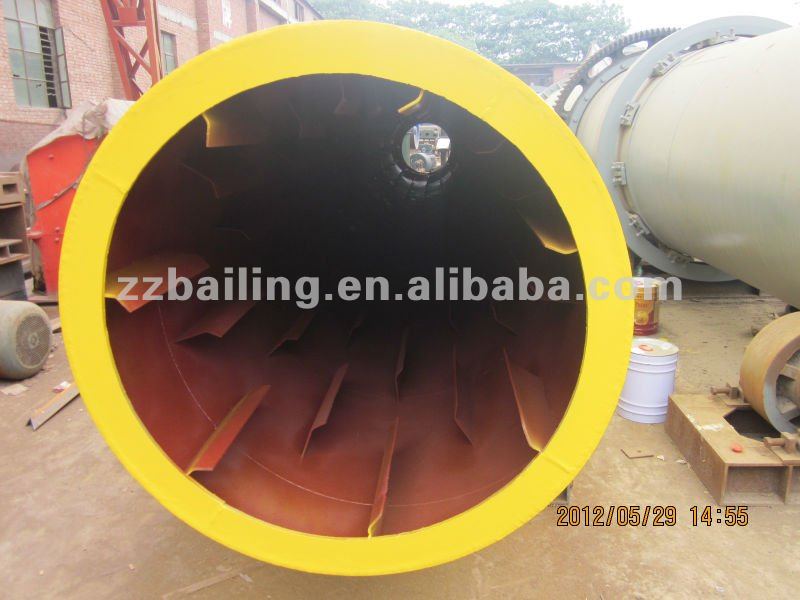

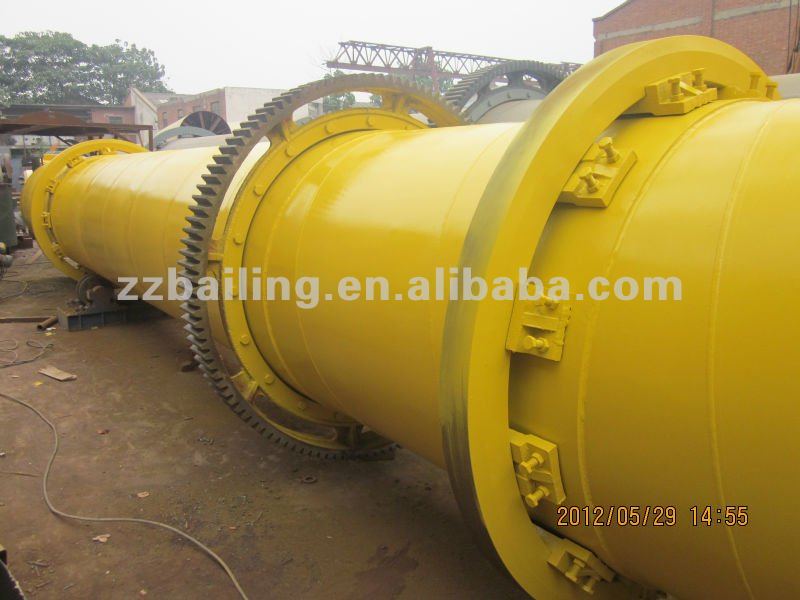

Pictures of our rotary drier:
