Hot sale EFB fiber Rotary Drum Dryer
Email: vera(at)rotexmaster.cn Mob: 0086 15253124296
skype: vera.rotex Whatsapp/Wechat: 0086 152 5312 4296
 |  |  |
| Rotary dryer | wood chipper | hammer mill |

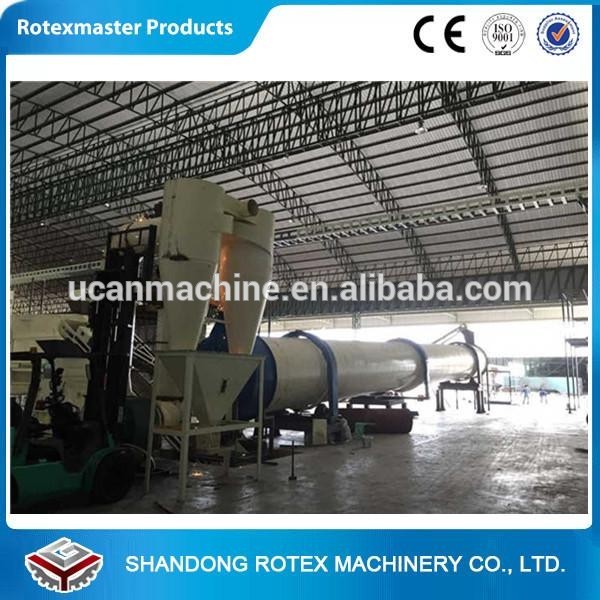

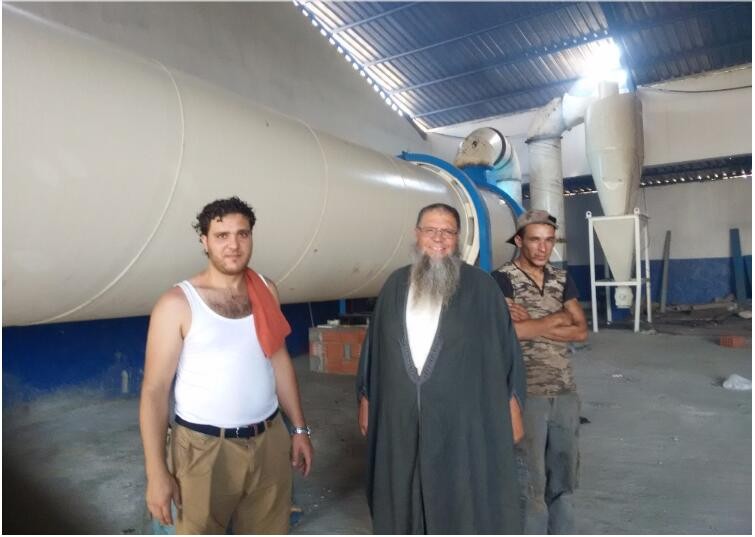

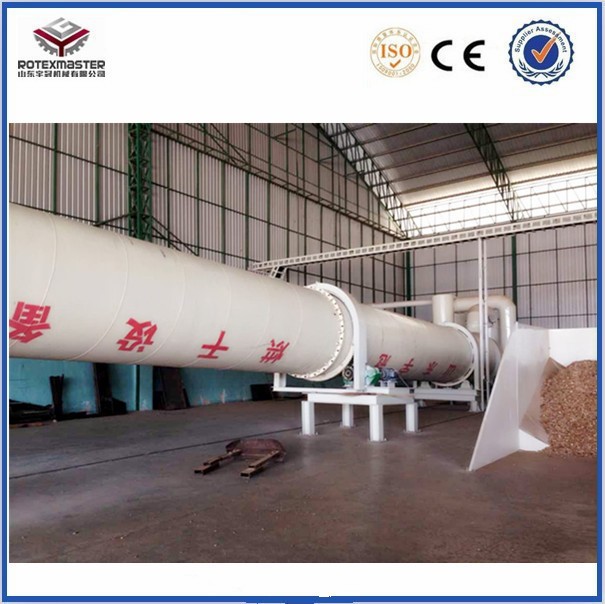

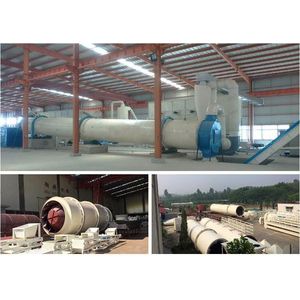

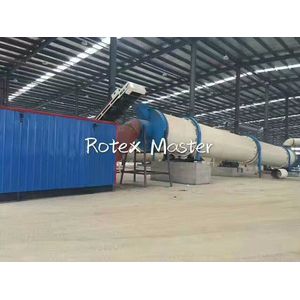

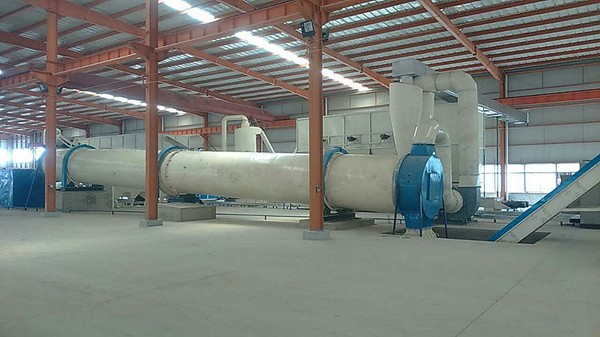

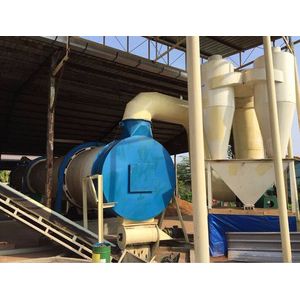

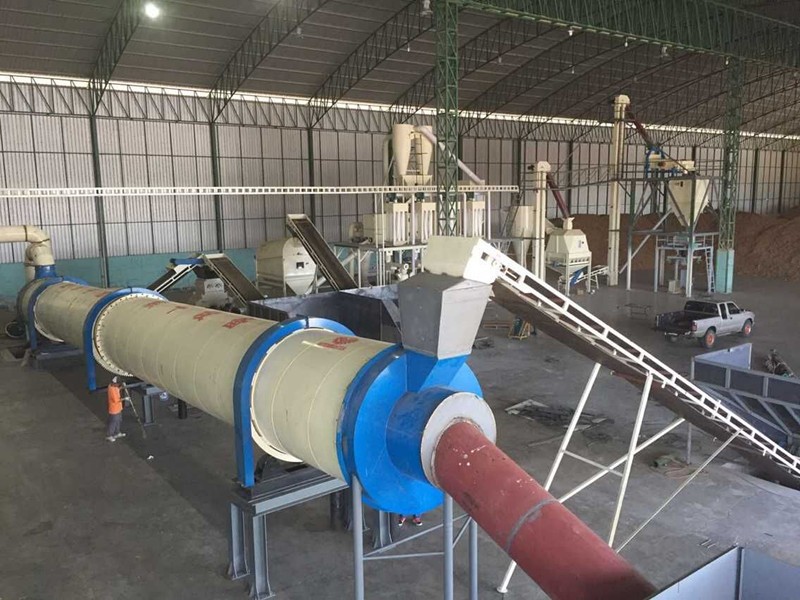

Successful Cases of rotary dryer

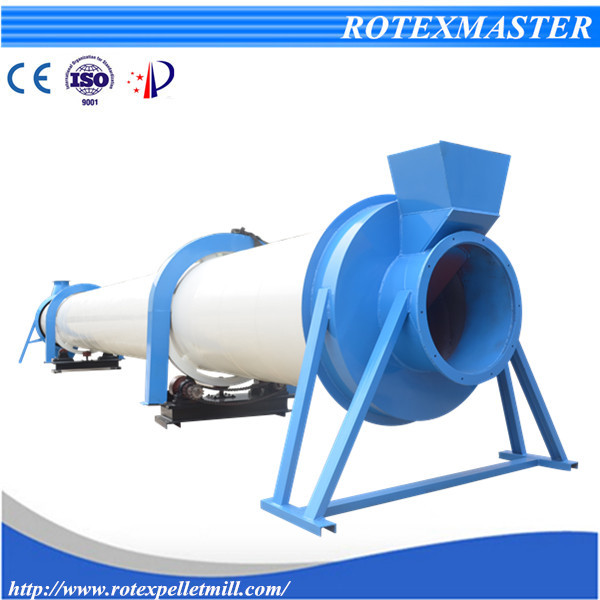

Introduction of rotatry dryer
Sawdust dryer with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port. Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder.
Sawdust dryer is widely used in industries like biomass fuel, charcoal making, wood pellet fuel, sawdust briquette, farming and sand etc. The applicable materials are wood powder, wood shavings, sawdust, wood chipps, straws, grass, sand, etc
Application of rotatry dryer
Sawdust dryer of rotary drum type is widely used in industries like straw briquette fuel, charcoal machinery, wood pellet fuel, sawdust briquette, farming and animal husbandry engineering etc. such as the drying of agricultural fiber materials like maize straw, soybean straw, cotton straw, wheat straw, sorghum stalk, wood powder, wood shavings, sawdust, ginkgo leaves, mulberry leaves etc.
Parameter of rotatry dryer
| Model | Diameter (m) | Length (m) | Power (kw) | Evaporation Capacity (t/h) |
| YGHG1.0*12 | 1.0 | 12 | 5.5 | 0.18-0.28 |
| YGHG1.2*12 | 1.2 | 12 | 5.5 | 0.27-0.54 |
| YGHG1.5*12 | 1.5 | 12 | 5.5 | 0.42-0.85 |
| YGHG1.5*18 | 1.5 | 18 | 7.5 | 0.42-0.85 |
| YGHG1.8*12 | 1.8 | 12 | 7.5 | 0.8 |
| YGHG1.8*18 | 1.8 | 18 | 11 | 1.0 |
| YGHG1.8*24 | 1.8 | 24 | 11 | 1.22-1.5 |
| YGHG2.0*24 | 2.0 | 24 | 15 | 1.5-2.0 |
| YGHG2.2*24 | 2.2 | 24 | 15 | 1.82-3.65 |

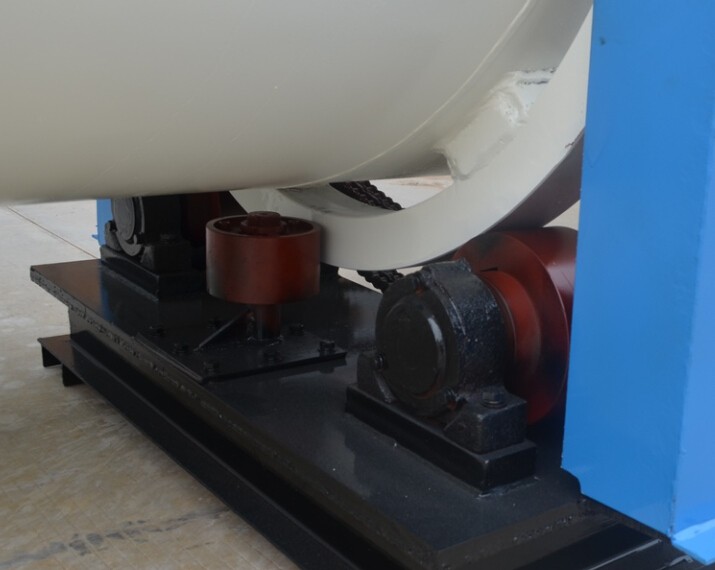

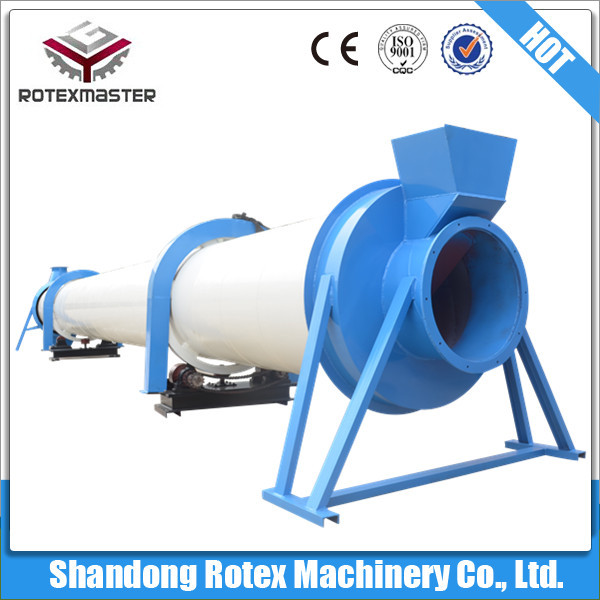

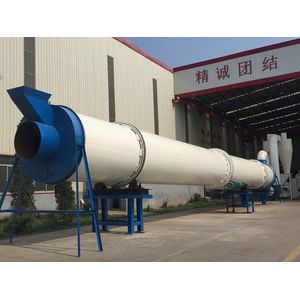

Details of sawdust dryer

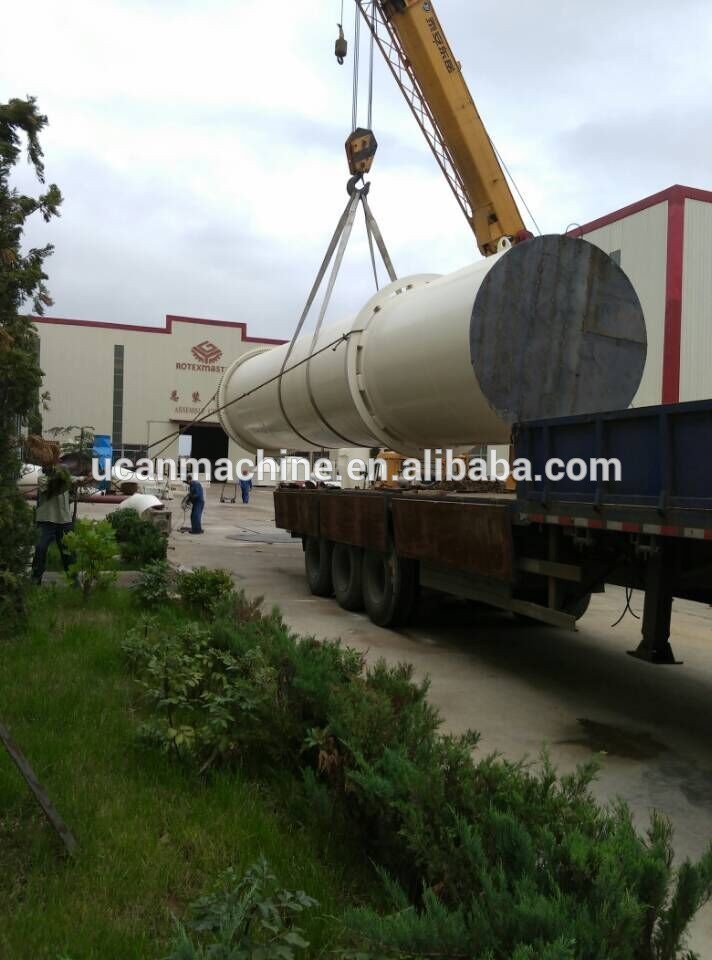

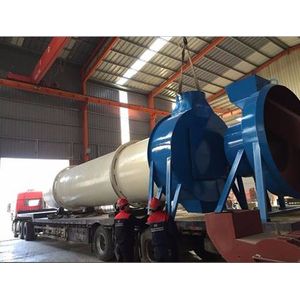

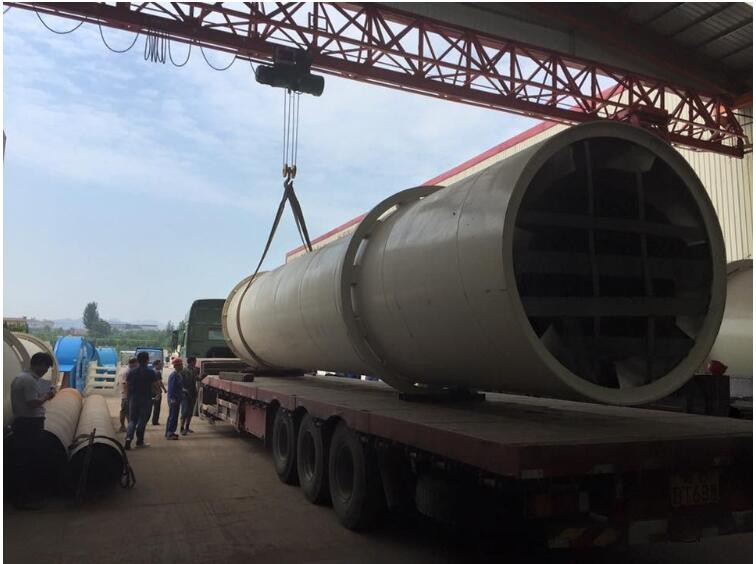

Delivery of Rotary Dryer

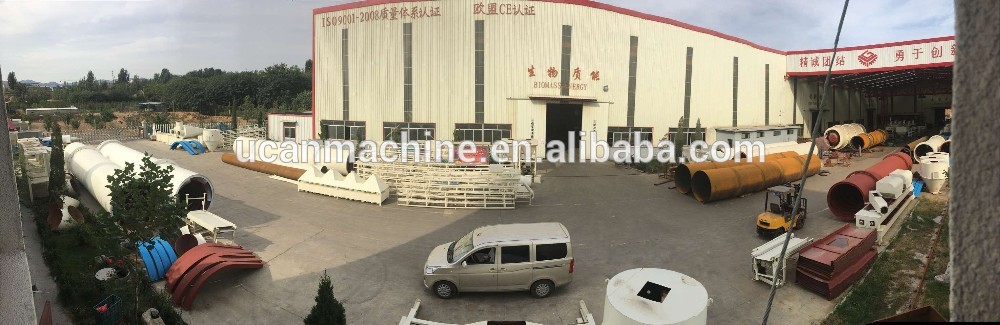

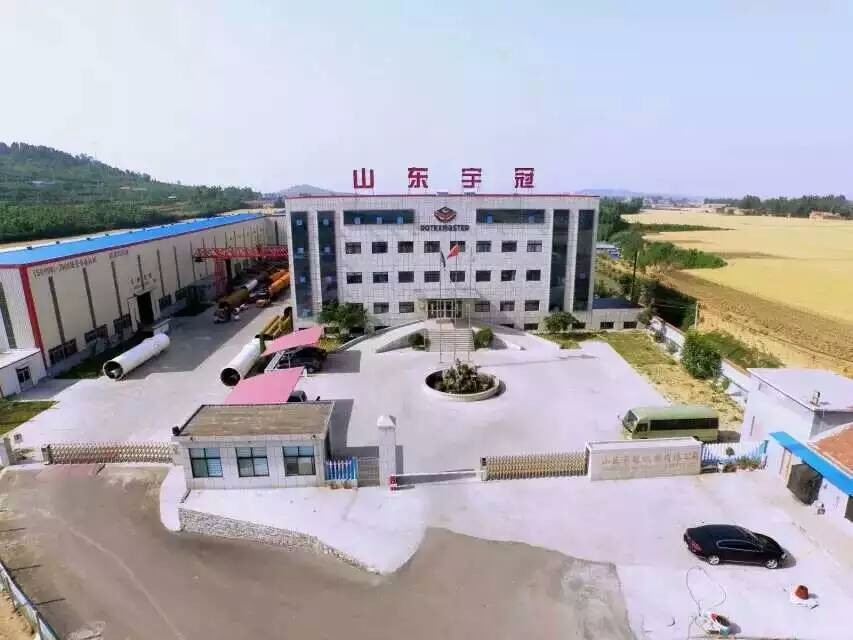

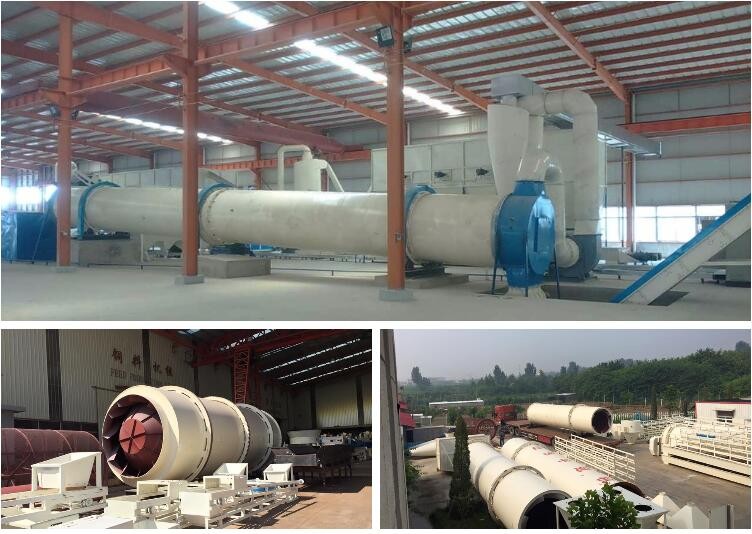

Our Factory
China
