Cassava dryer/cassava rotary dryer/cassava starch dryer
with us your money in safe your business in safe
Tel:+86 18615687606 Email:ucan03(at)rotexmaster.com Skype:pelletmachine06

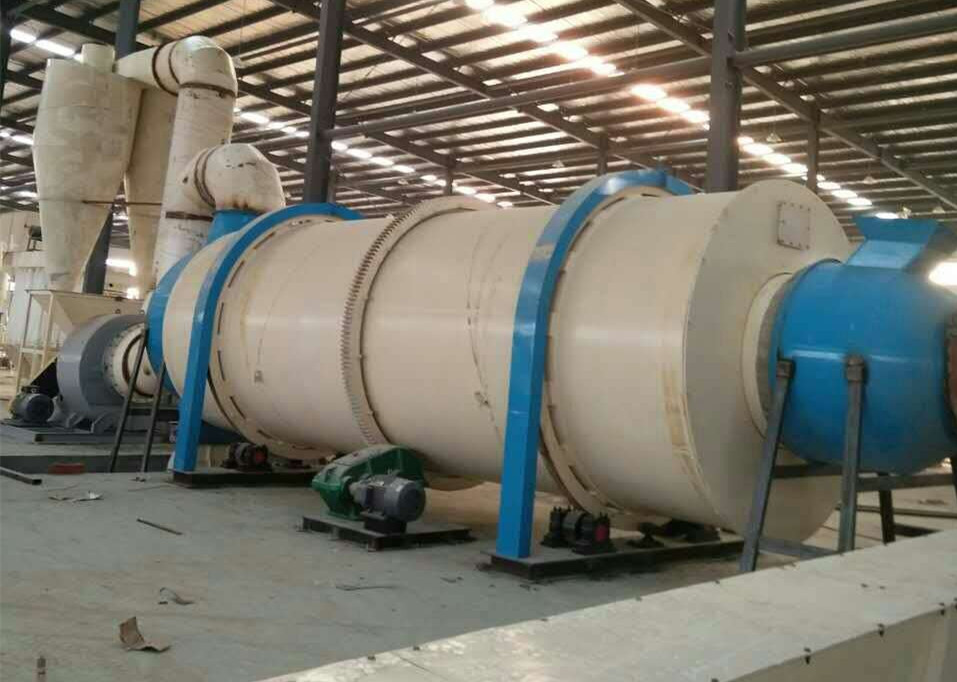

The rotary dryer is a type of industrial dryer employed to reduce or minimize
the liquid moisture content of the material it is handling by bringing it into direct
contact with a heated gas.
Rotary dryers are customized drying equipment for your specific requirement.
our ROTEXMASTER’s design team are able to design rotary drying equipment which
can effectively save your budget and efficiently running.
Highly various material from the feed screw directly into the breaking drum dryer,
the plate is on the inner wall of the roller against taking the fall. Break bulk material
with a negative pressure of the high temperature medium full contact, complete
heat transfer process. Since the inclination and the action of the draft fan, the
material from the feed end to the discharge end to move slowly, and then in the
discharging end airflow extraction, via the conveying pipe after further drying
into the dust, the airlock discharge.
Technical details of the rotary dryer
Model | Inner diameter (mm) | Power(kw) | Capacity (t/h) | Inlet temperature | Outlet temperature | Weight (t) |
YGHG1.0*12 | 1000 | 5.5 | 0.18-0.28 | 400-600°C | 60-90°C | 3.5 |
YGHG1.2*12 | 1200 | 5.5 | 0.27-0.5 | 4.2 | ||
YGHG1.5*12 | 1500 | 7.5 | 1 | 6.2 | ||
YGHG1.8*12 | 1800 | 7.5 | 0.8 | 7.2 | ||
YGHG2.0*24 | 2000 | 15 | 1.5 | 25.9 | ||
YGHG2.2*12 | 2200 | 11 | 1.2 | 14.5 | ||
YGHG2.2*24 | 2200 | 15 | 2 | 28 | ||
YGHG2.5*24 | 2500 | 15 | 2.5 | 23.8 | ||
YGHG2.8*12 | 2800 | 18.5 | 1.8 | 16.7 | ||
YGHG2.8*24 | 2800 | 22 | 2.95-5.91 | 31.5 |
1.The rotary speed is adjustable.
2.simple structure
3.The dryer can dry high moisture content and large volume materials.
4.There is elastic plate sealing strip in feed inlet and outlet.

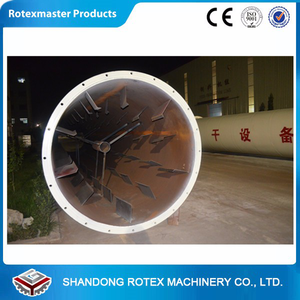

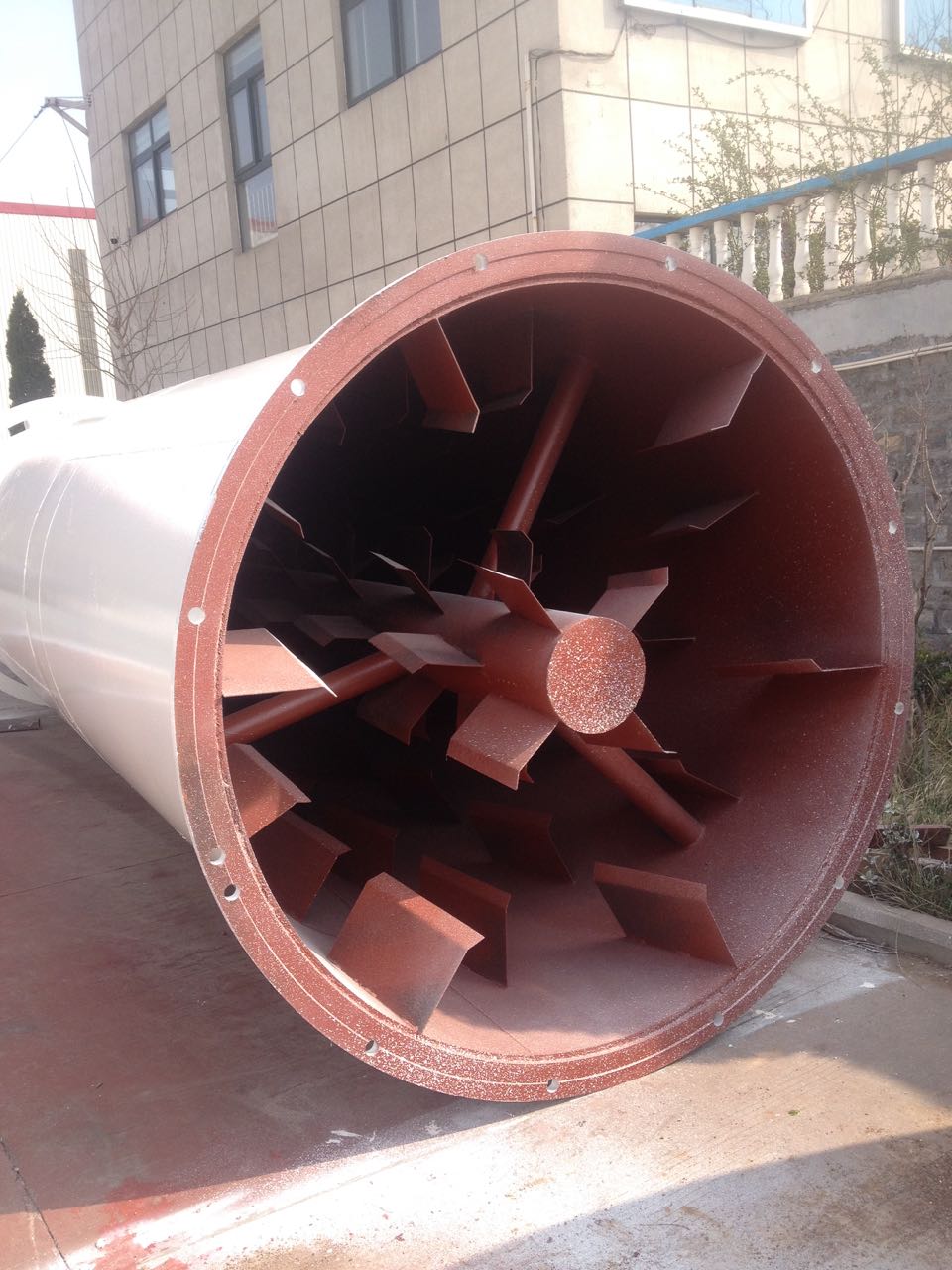

5.There is lifting blade in the inner cylinder, it can make the material mixed
with the heat flow fully.
6.It is matched with stove.
Quality is first, Customer is first !!!
Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development,
manufacturing, international trade as a whole, registered capacity is 10 million Yuan,
more than 200 staff. Strong technical force, advanced production technology,perfect
after-sales service.
Mainly produce: biomass fuel pellet production line, feed pellet production line,organic
fertilizer and Municipal Solid Waste processing equipment, agricultural equipment,
forestry equipment, etc.
