Secondary shredding machine
High quality rasper

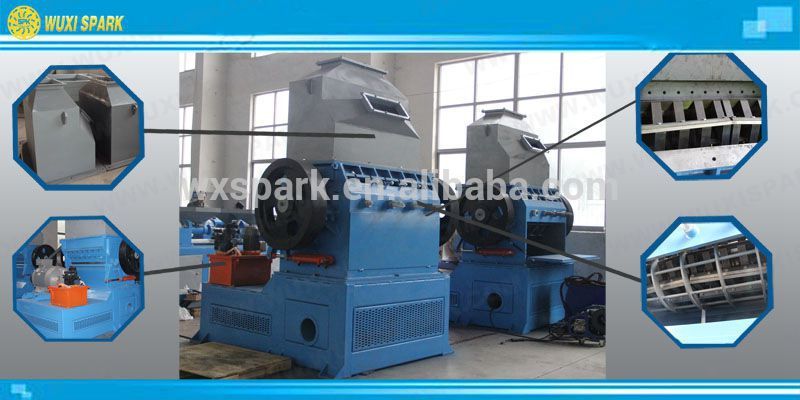

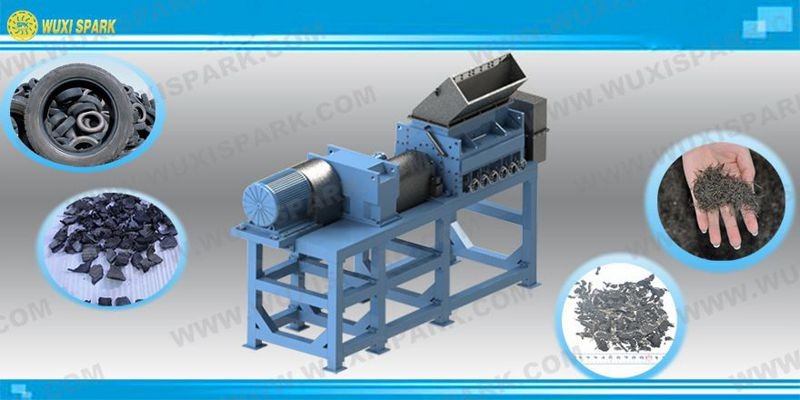

Rasper
Spark Rasper can cut the rubber chips into 10-30mm mulches, meanwhile, the magnetic is designed to remove the steels, the end product will be steel free rubber mulches. And the replaceable blades makes it efficiency to replace the blades in a low cost.
| Spesification for Rasper | ||||||
| Rasper | SU315 | SU132 | SU90 | SU75 | SU55 | SU45 |
| Motor | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens |
| Power(KW) | 315 | 132 | 90 | 75 | 55 | 45 |
| Voltage | as per request | as per request | as per request | as per request | as per request | as per request |
| Cutting Chamber L*W | 700*1500 | 750*1200 | 600*1200 | 550*800 | 450*800 | 450*600 |
| Equipment Dimensions | 6200*2200*3600 | 2000*2600*4000 | 2100*2200*4000 | 2000*2000*4100 | 1700*1700*2300 | 1400*1200*2200 |
| Equipment Weight(KG) | 24000 | 7000 | 5000 | 3500 | 2000 | 1800 |
| Hopper Opening | 1700*900*900 | 1400*900*1400 | 1200*700*1300 | 1000*700*1300 | 900*600*900 | 700*600*900 |
| Capacity(T/H) | 3-6 | 1.5-3 | 1-1.5 | 0.7-1 | 0.5-0.7 | 0.3-0.5 |
| Final Product(mm) | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 |
2D Files for Rasper
Rasper

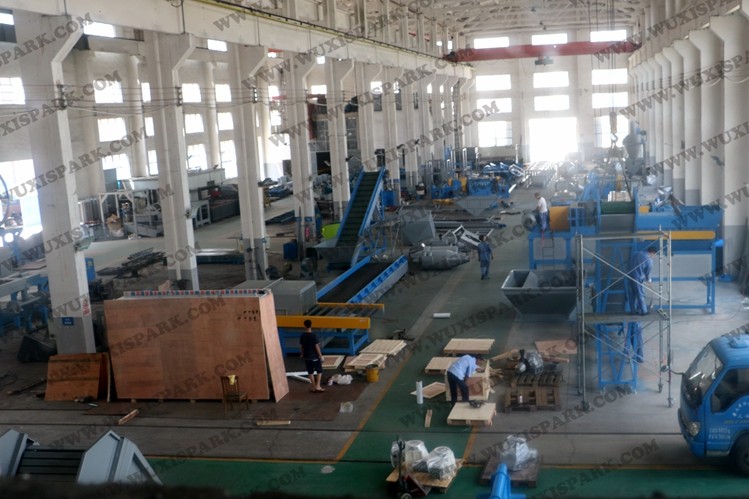

The second tire recycling line Italy customer ordered, picture shows the on-site inspection.
Main Features
1)It is specially designed to make pre-shredded tires chips into 12-25mm (0.5″-1″) wire free rubber chip.
2) The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.
3) Another unique feature of this machine is the ability to turn the knives before having to send them to be sharpened or replaced, minimizing operating costs.
Spark shred is located in Wuxi, China, covering an area of more than thirty thousand square meters, and has the modernized technology center and all kinds of processing and testing equipment with more than 200 experienced staff over 30 professional engineers. Our main focus is to provide our customer cost-effective tire recycling system ranges from TDF system, Wire-free Mulch System, Rubber Crumb Sysetm, Rubber Powder Line etc, the main products are single shaft shredder, double shaft shredder, four shaft shredder, grate, granulator, miller etc.
Our company has an efficient management and service team comprises of multi-culture and bi-lingual professionals fluent in English, Spanish and Mandarin Chinese. Our experienced logistics team can transport our products to major ports with the best quality service all over the world, and our perfect service system and experienced after-sales service team can ensure the most timely installation, commission and training work in customer workshop. Our mission is to provide our customers the best recycling solutions with our best quality service and technology!
With more than ten years’ experience in this industry, SPARK has been approved as a leader of high-end professional waste recycling solution, the projects installed in Asia, Africa, Europe, America, Middle East are tailored to clients’ requirements, these projects have been approved they are cost-effective, high efficiency and reliable.
Our recycling plant for used tires have a lot certification, and reach the CE standard. We have all the CE certification for tire shredding recycling equipment, like Tire Recycling Shredder, Tire Recycling Rasper, Tire Recycling Granulator, Tire Recycling Miller, Recycling lines for Tires.
1.Best pre-sales service to make customers know all details about our high-tech tire shredder works. All our sales people are engineers which can easily commucate with customer and know the customer real demands on tire recycling shredding details. 24 hours service is provided.
2.Best production service to make customer knows everything in the shredder for tyres in production process, the technical report on everything material, the production schedule and weekly report is provided by us to warrenty the customer get best quality machine in time.
3.Best after-sales service to make customers no any risk on our tire shredding reycling machine. Excellant logistic team to guarantee the shredder machine to be safely shipped to customer warehouse, no extra fee on export or import on custom. 2 engineers will be provided for installing and commission service, also traning the worker is included inside. Lifelong quality gurantee and engineer sent service.
Shredder
The first step of cutting the tires, cut the tires into rubber strips. All the shredder blades thinkness ranges from 25mm-152mm depending on type of tires, output, final product. The shredder can process pre-cut OTR tires, truck tires and car tires from 1ton to 20ton per hour.
granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 1mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades, the Granulator produces a very uniform cut and high quality granule. During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.
Miller
The Spark's miller is designed to produce rubber powder from 500kgs to 5tons an hour in capacity and the powder size can be as fine as 120mesh which is determined by adjustable centrifugal screen. Its features are convenient operation and high speed grinding tray which makes a continuous operation.
1.A layer of plastic wraps to protect machine from duct, moisture and corrosion.
2.Wooden case is used as the outside package. Or according to the customer requirements.
3.Excellant logistic team to guarantee the shredder machines to be safely shipped to customer warehouse, no extra fee on export or import on custom.
