Spark Rasper can cut the rubber chips into 10-30mm mulches, meanwhile, the magnetic is designed to remove the steels, the end product will be steel free rubber mulches. And the replaceable blades makes it efficiency to replace the blades in a low cost.
| Spesification for Rasper | ||||||
| Rasper | SU315 | SU132 | SU90 | SU75 | SU55 | SU45 |
| Motor | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens |
| Power(KW) | 315 | 132 | 90 | 75 | 55 | 45 |
| Voltage | as per request | as per request | as per request | as per request | as per request | as per request |
| Cutting Chamber L*W | 700*1500 | 750*1200 | 600*1200 | 550*800 | 450*800 | 450*600 |
| Equipment Dimensions | 6200*2200*3600 | 2000*2600*4000 | 2100*2200*4000 | 2000*2000*4100 | 1700*1700*2300 | 1400*1200*2200 |
| Equipment Weight(KG) | 24000 | 7000 | 5000 | 3500 | 2000 | 1800 |
| Hopper Opening | 1700*900*900 | 1400*900*1400 | 1200*700*1300 | 1000*700*1300 | 900*600*900 | 700*600*900 |
| Capacity(T/H) | 3-6 | 1.5-3 | 1-1.5 | 0.7-1 | 0.5-0.7 | 0.3-0.5 |
| Final Product(mm) | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 |
2D Files for Rasper

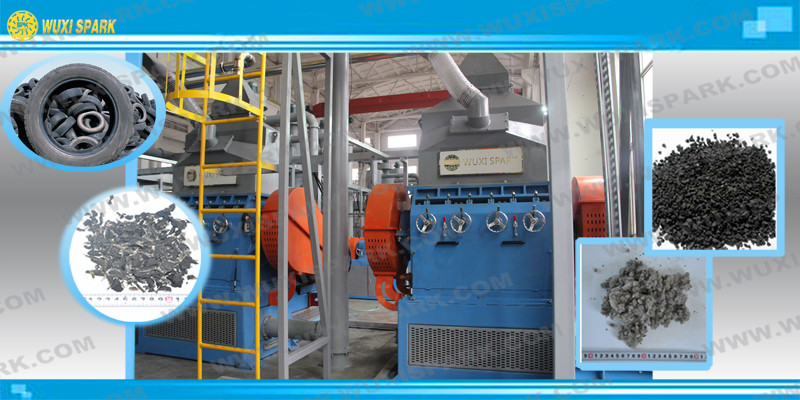

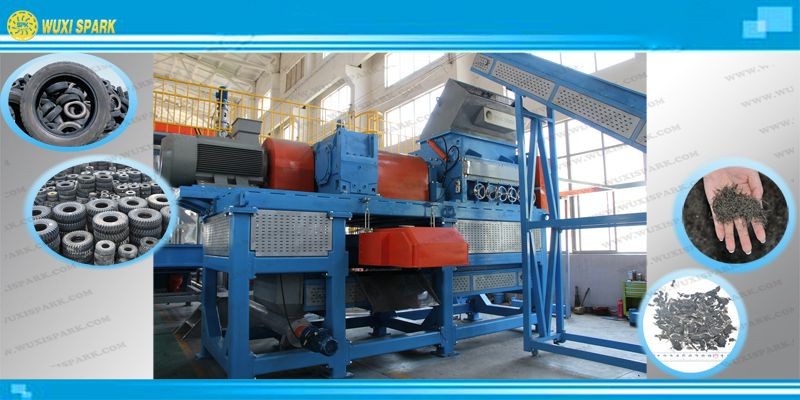

Rasper on production
On-site inspection,picture shows Italian cutomer is checking the shredder working
Main Features
1)It is specially designed to make pre-shredded tires chips into 12-25mm (0.5″-1″) wire free rubber chip.
2) The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.
3) Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.
Wuxi Spark Engergy Equipment Co.,Ltd is a company working in recycling industry for more than 10 years, we are specialised in supplying all kinds of recycling lines and shredding machines, our products can recycle tires, cars, wires, e-waste, plastic and paper, etc.
Obeying the rule of always supplying high quality and best service, we are proud of having customers all over the world, like the USA, Italy, South Africa, Poland and India, etc. Within the positive feedback, we will insist on improving our products to meet high requirements.
"Rethink tires" or rethink any other things may make the miracle to provide a cleaner environment for people, we are responsible to our living conditions and we try to do better.
Our recycling plant for used tires have a lot certification, and reach the CE standard. We have all the CE certification for tire shredding recycling equipment, like Tire Recycling Shredder, Tire Recycling Rasper, Tire Recycling Granulator, Tire Recycling Miller, Recycling lines for Tires.
1.Best pre-sales service to make customers know all details about our high-tech tire shredder works. All our sales people are engineers which can easily commucate with customer and know the customer real demands on tire recycling shredding details. 24 hours service is provided.
2.Best production service to make customer knows everything in the shredder for tyres in production process, the technical report on everything material, the production schedule and weekly report is provided by us to warrenty the customer get best quality machine in time.
3.Best after-sales service to make customers no any risk on our tire shredding reycling machine. Excellant logistic team to guarantee the shredder machine to be safely shipped to customer warehouse, no extra fee on export or import on custom. 2 engineers will be provided for installing and commission service, also traning the worker is included inside. Liftlong quality gurantee and engineer sent service.
1.A layer of plastic wraps to protect machine from duct, moisture and corrosion.
2.Wooden case is used as the outside package. Or according to the customer requirements.
3.Excellant logistic team to guarantee the shredder machines to be safely shipped to customer warehouse, no extra fee on export or import on custom.
Shredder
The first step of cutting the tires, cut the tires into rubber strips. All the shredder blades thinkness ranges from 25mm-152mm depending on type of tires, output, final product. The shredder can process pre-cut OTR tires, truck tires and car tires from 1ton to 20ton per hour.
Granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 1mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades, the Granulator produces a very uniform cut and high quality granule. During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.
Miller
The Spark's miller is designed to produce rubber powder from 500kgs to 5tons an hour in capacity and the powder size can be as fine as 120mesh which is determined by adjustable centrifugal screen. Its features are convenient operation and high speed grinding tray which makes a continuous operation.
