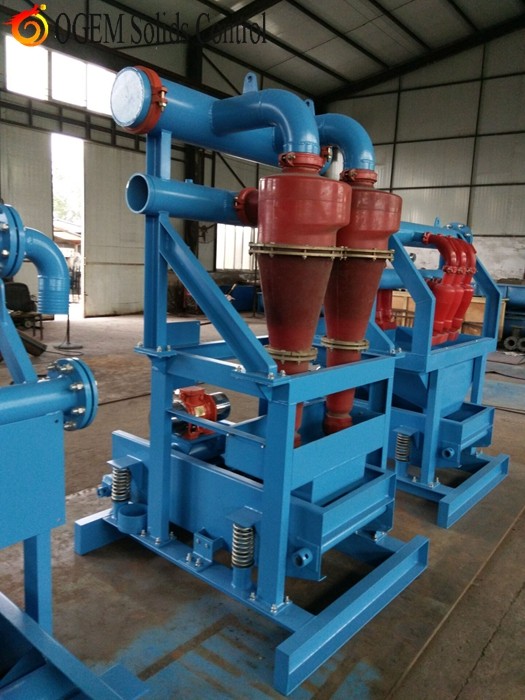

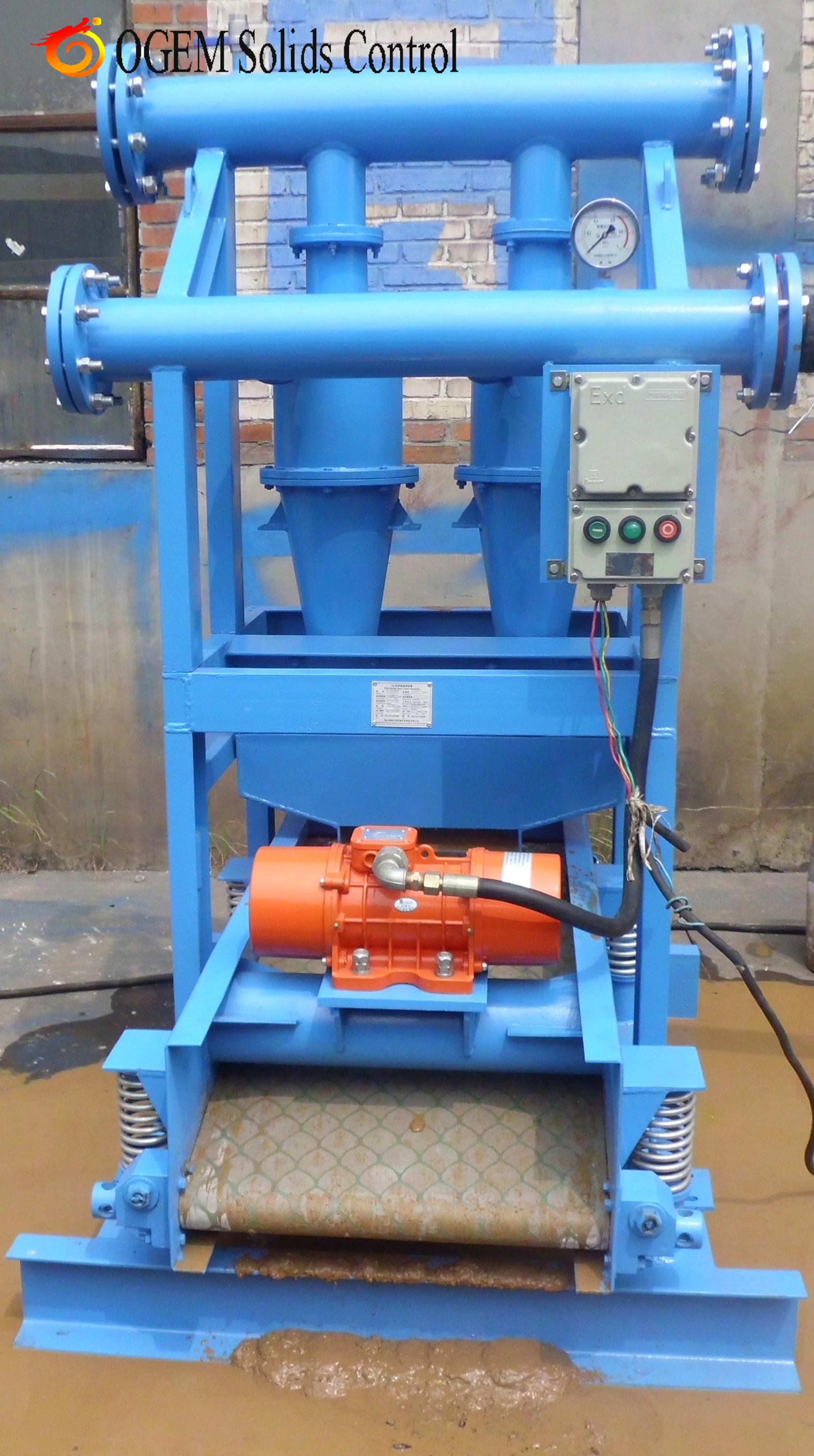

Introduction of The Hydrocyclone Desander
| CSQ seriesHydrocyclone desander is 2nd solids control equipment, and mainly use 8”,10”, 12” desander cones. |
| Desander is to separate particle sized 47~76μm. |
| The treating capacity and cones configuration depend on client’s demand. |
| OGEM desander is widely used in oil and gas drilling, HDD, slurry separation, etc. industry. |
Features
Sand size solids removal (47~76 microns) |
Polymeric cones |
Lightweight, compact |
Customizable cones configuration as per clients' need |
Lifting eye welded to frame |
Benefits
Provide better effect for subsequent process |
Provides durable and low cost replacement |
Save much space and provide easy handling |
More flexible, user-friendly and proper cost |
Better to protect equipment when handle and transport |
Technique parameters
| Model | CSQ200 | CSQ250 | CSQ300 |
| Treating capacity | ≤120m3/h ≤528GPM | ≤180m3/h ≤792GPM | ≤240m3/h ≤1056GPM |
| Desander cones | 8" | 10" | 12" |
| Cones quantity | 1~3EA | 1~3EA | 1~3EA |
| Working pressure | 0.15~0.35Mpa | ||
| Feed inlet | 125mm | 150mm | 150mm |
| Discharge output | 150mm | 200mm | 200mm |
| Separation size | 47~76μm | ||
| Bottom shaker screen | 1.0m2(600×1600mm) Optional |
The products of OGEM can ensure the quality, which will not appear the quality problem. And our customers have a high evaluation to our products.Any demands, please contact me.
