We Tangshan Aojie Petroleum Machinery Equipment Make Co., Ltd is an intergated company specialized on designing, producing and selling mud process equipments and system. Our equipment main application is oila nd gas drilling fluids solids control system, HDD drilling or Trenchless mud recycling system, CSM drilling fluid system, Pilling mud circulation etc.

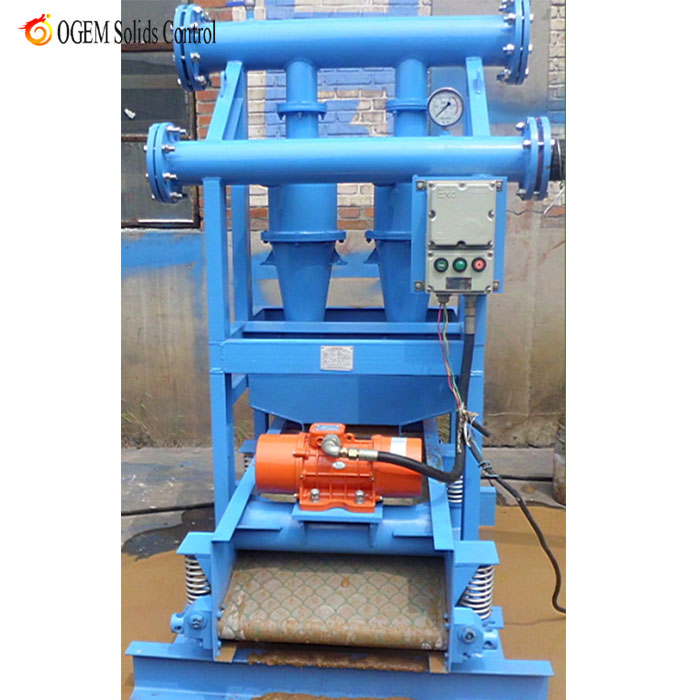

CSQ Hydrocyclone Desander
Features
Sand size solids removal (47~76 microns)

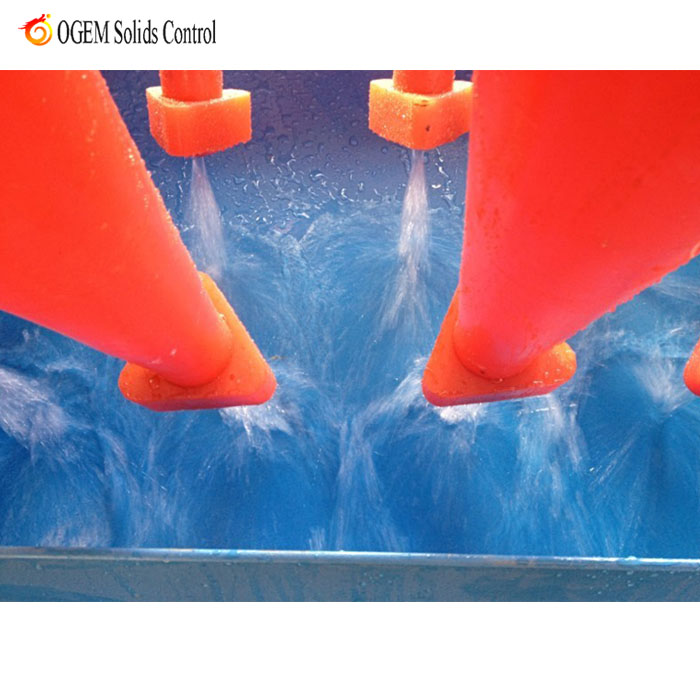

Polymeric cones
Lightweight, compact
Customizable cones configuration as per clients' need
Lifting eye welded to frame
Benefits
Provide better effect for subsequent process
Provides durable and low cost replacement
Save much space and provide easy handling
More flexible, user-friendly and proper cost
Better to protect equipment when handle and transport
Technique parameters
| Model | CSQ200 | CSQ250 | CSQ300 |
| Treating capacity | ≤120m3/h ≤528GPM | ≤180m3/h ≤792GPM | ≤240m3/h ≤1056GPM |
| Desander cones | 8" | 10" | 12" |
| Cones quantity | 1~3EA | 1~3EA | 1~3EA |
| Working pressure | 0.15~0.35Mpa | ||
| Feed inlet | 125mm | 150mm | 150mm |
| Discharge output | 150mm | 200mm | 200mm |
| Separation size | 47~76μm | ||
| Bottom shaker screen | 1.0m2(600×1600mm) Optional |
Service &Guarantee of OGEM Equipment
1. Before service: According to client requirements, OGEM will provide optimal solutions at earliest time.
2. After service: All OGEM equipments will have one year guarantee after commissioning date except wearing parts and illeagle operation.
3. Commissioning: As per user demand, OGEM can arrange engineer do 1st commissioning for free. We can also provide training courses to client staff.
4. Emergency solution: The time to client job site depend on visa issuance. Anyhow, we will do our best to solve emergency as soon as we can.
5. Sapre parts supply: OGEM have considerable stock to stare various spare parts. This guarantees the spare parts can be sent to the clients in time.
