Mud cleaner is easy to Removable type cyclone support, facilitate desanders ,desilters

1.Petroleum drilling hydrocyclone desilter is the 3rd phase equipments in solids control system.

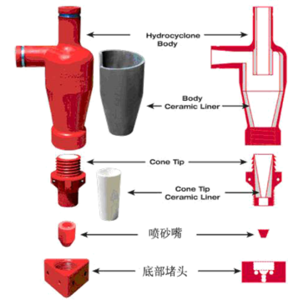

2. AJCNQ series hydrocyclone desilter cone includes 4” and 5”and it mainly separates 12~47μm solid.

3.OGEM Solids Control desilter is high efficient equipment, decrease cones block chance. Bottom shaker holds good performance, lower noise, and long usable life. The balanced feeding design keeps it working very well.
Desanders and desilters are solid control equipment with a set of hydrocyclones that separate sand and silt from the drilling fluids in drilling rigs. Desanders are installed on top of the mud tank following the shale shaker and the degasser, but before the desilter. Desander removes the abrasive solids from the drilling fluids which cannot be removed by shakers. Normally the solids diameter for desander to be separated would be 45~74μm, and 15~44μm for desilter.
A centrifugal pump is used to pump the drilling fluids from mud tank into the set of hydrocyclones.

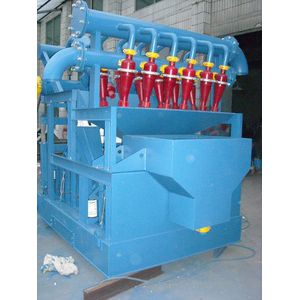

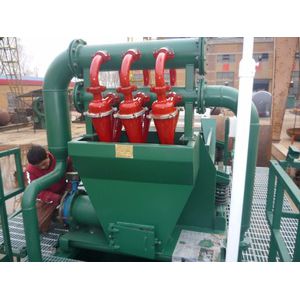

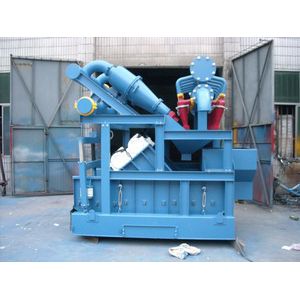

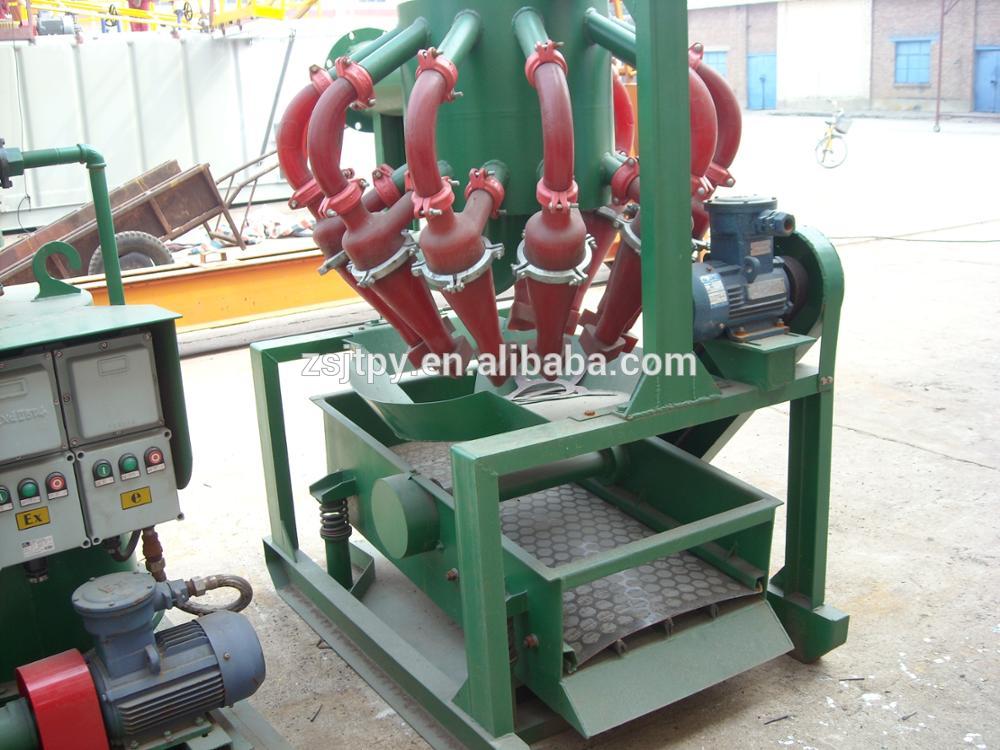

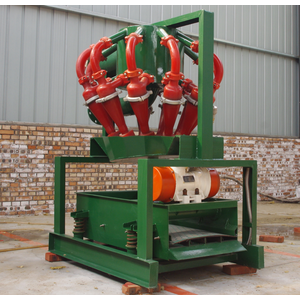

As a solids control equipment of the third stage in drilling operation, desilter is used to remove solid particles of 20-40 µm in drilling liquid. The desilter of this type that has been reformed many times on the applications for years is reliable in technical performance and provides very good treatment results. Its water cyclone is of long service life and stable performance. It is applicable to various kinds of drills in the oilfields.

The inlet and outlet of water cyclone can be connected very quickly, which is convenient for replacement and maintenance.

and desilter.

ZQJ100×12 Desilter

ZQJ100×16 Desilter

Puyang Zhongshi Group Co.,Ltd. is a formal reformation enterprise from Zhongshi Oil Field a modernized corporation integrated science, industry and trade, it belongs to Hi & New Tech Enterprise of Henan Province and Sci-Tech Enterprise. The group not only deals in exporting of machinery for petroleum drilling and mining machinery, but also importing and exporting following products: special equipment for petroleum and petrochemical, electronic instruments, various kinds of furniture and crafts & arts products, steels, plating armor plates, non-ferrous metal, construction materials, petrochemical products, dopes and oil paint, etc.Zhongshi Group has passed ISO9001 International Quality Certification, and its primary Petroleum Machinery Products such as pumping unit, subsurface oil pump, sucker rod and wellhead have been certified by American Petroleum Institute. Among these products, fifteen of them gain national patent. The Group is granted AAA credit rate enterprise by Industrial & Commercial Bank of China, and a member of Sinopec Corporation Materials Resources Market.

Puyang Zhongshi Group Co.,Ltd. is a professional manufacturer of various oilfield equipment and cementing accessories since 1997, restructured enterprise of SINOPEC. We have the certificatesof API-5CT, API-10D, API-11E, API-6A, API-11AX, ISO9001:2008, ISO14001:2004 etc. and 15 of products have gained national patents .We are the first-class supplier of resources market of SINOPEC and CNPC. Domestic:our products are widely used in power plants, coal mines, cement factories, fertilizer plants, petroleum industry, machinery industry, steel mills and other industries. Overseas:our main customers come from America,Russia,Vietnam,Middle East,Southeast Asia,Central Asia and Sudan,Yemen, Egypt etc.African countries .

Our company is willing to cooperate and make common progress with friends at home and abroad with first-calss products, first-class service and reasonable prices.

All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.

1. Q: Can I get Hydrocyclone Desilter samples?
A: We are honored to offer you samples for quality check.

2. Q: Do you have the products of Oilfiled Desilter in stock?

A : No. All bikes are to be produced according to your order including samples.

3. Q: What’s the delivery time?

A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.

4. Q: Can I mix different models of Solids Control Desilter in one container?

 A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.

5. Q: How does your factory do regarding quality control?
A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production.  Every product will be fully assembled and carefully tested before it's packed for shipment.

6. Q:What's your warranty terms?
A:  We offer different warranty time for different products. Please contact with us for detailed warranty terms.

7. Q: Will you deliver the right goods as ordered? How can I trust you?

 A: Yes, we will. Zhongshi Group is belongs to Hi&New Tech Enterprise of Henan Province and Sci-Tech Enterprise, which have more than 10 years exporting experience. So the Zhongshi Group can be your sincerely partners.The core of our company culture is honesty and credit. Highper has been alibaba’s Gold supplier . If you check with alibaba, you will see that we have never got any complaint from our customers.
