Water Cyclone Separator Sand Separator Hydrocyclone Desander for piling construction

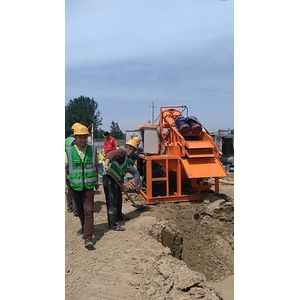

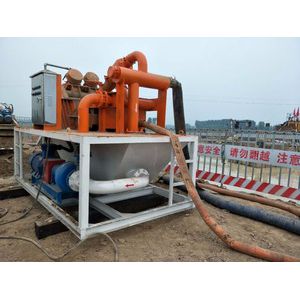

ZS Slurry Treatment Plant and Slurry Treatment System has demonstrated its high-performance capabilities at many job sites worldwide including the applications of tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction, etc.
Features:
1.High mud handling capacity, sand can be removed efficiently.
2.The oscillating screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance.
3.Slag charge screened by advanced straight-line oscillating system is effectively dewatered.
4.The adjustable vibrating force, angle and mesh size of the oscillating screen enable the equipment possess a high screening efficiency in all kind of strata.
5.The high screening efficiency of the machine can excellently support drillers raise bore and advance in different strata.
6.Energy saving efficiency is significant since the power consumption of the oscillating motor is low.
Drilling mud desander is a kind of solid control equipment, which is commonly used in oil and gas field for drilling rigs.
Drilling mud desander can be widely applied in the triple-process of the drilling fluid and when it is used efficiently, the desanders can effectively clear the solid-phase granules with diameter of more than 30 microns in the drilling fluid. It is one indispensable device for stabilizing and adjusting the drilling fluid technical parameters, suitable for those drillers as ZJ70, ZJ50 and ZJ40. And it can be used together with the sealed circulatory system of the drilling fluid.
As a solids control equipment of the second stage in drilling operation, desander is used to remove harmful solid particles of 40-74µm in drilling liquid.Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence.
At present time, six types,JZQJ300×2,JZQJ250×2, JZQJ200×2 and JZQJ300×1, JZQJ250×1, JZQJ200×1are available. The former applies to over 3000-meter-long drills, and the latter applies to small drills of less than 3000 meters and service rig.
The desander plant systerm cleaner is mainly used to remove finer solid particles from the drilling fluid. The equipment desalination capacity than the previous desander to increase 30% -50%, in order to improve the drilling speed and reduce the cost of drilling to provide reliable protection, and can play the role in the deep well desander and desilter.

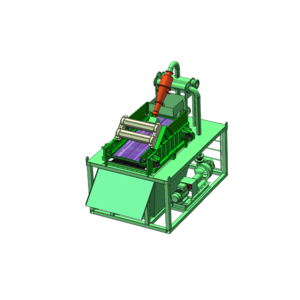

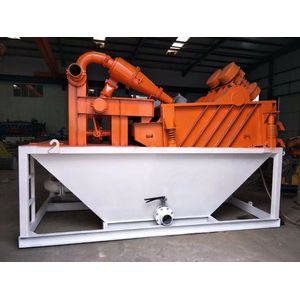

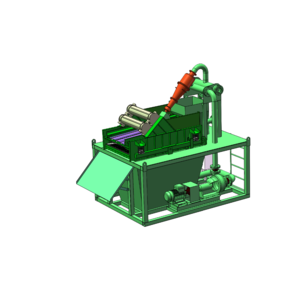

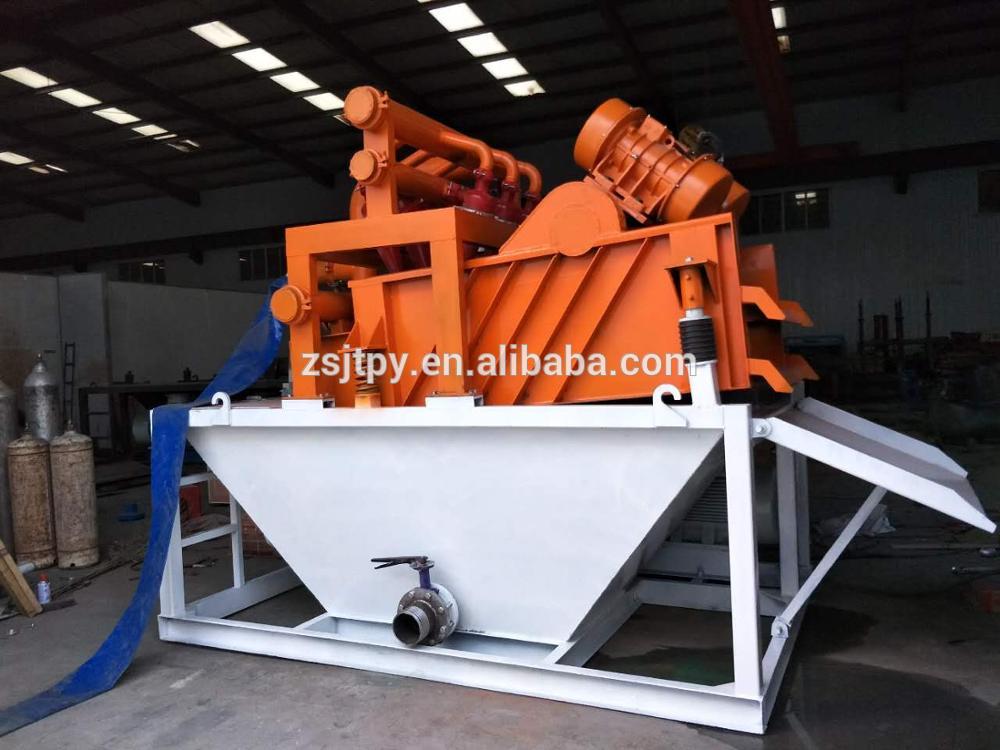

Hydrocyclone Desander Mud system
| ZSMS Mud system(380v/50hz) | |||
| Model | ZSMS200D | ZSMS500D | ZSMS1000D |
| Treating Capacity | 200GPM(45M3/h) | 500GPM(120M3/h) | 1000GPM(240M3/h) |
| Solids feed capacity | 10~30t/h | 25~50t/h | 25~80t/h |
| cut point | 20~60um | 20~60um | 20~60um |
| Mud cleaner | SSZS3/2 | SSZS3/2 | SSZS3/2 |
| Vibration Strength | ≤6.0g | ≤6.0g | ≤6.0g |
| UPPER Screen Area: | 1.71 m2 (2 pcs 1040mm×820mm×(20-40)Meshes ) | 1.71 m2 (2 pcs 1040mm×820mm×(20-40)Meshes ) | 1.71 m2 (2 pcs 1040mm×820mm×(20-40)Meshes ) |
| Bottom Screen Area: | 2.34 m2 (3 pcs 1150mm×680mm×(20-60) Meshes ) | 2.34 m2 (3 pcs 1150mm×680mm×(20-60) Meshes ) | 2.34 m2 (3 pcs 1150mm×680mm×(20-60) Meshes ) |
| Desander Size: | 8`10Inch | 10Inch | 10Inch |
| Cone Number: | 1 | 1 | 2 |
| Centrifugal pump | ZSSB4×3(15kw) | ZSSB6×5(37kw) | ZSSB8×6(55kw) |
| Total Power: | 18KW | 41KW | 58KW |
| InLand Shipping Dimension: | L3200×W2350×H1500 | L3200×W2350×H1500 | L3200×W2350×H1500 |
| Total Weight: | 2750kg | 2950kg | 3150kg |
Puyang Zhongshi Group Co.,Ltd. is a formal reformation enterprise from Zhongshi Oil Field a modernized corporation integrated science, industry and trade, it belongs to Hi & New Tech Enterprise of Henan Province and Sci-Tech Enterprise. The group not only deals in exporting of machinery for petroleum drilling and mining machinery, but also importing and exporting following products: special equipment for petroleum and petrochemical, electronic instruments, various kinds of furniture and crafts & arts products, steels, plating armor plates, non-ferrous metal, construction materials, petrochemical products, dopes and oil paint, etc.Zhongshi Group has passed ISO9001 International Quality Certification, and its primary Petroleum Machinery Products such as pumping unit, subsurface oil pump, sucker rod and wellhead have been certified by American Petroleum Institute. Among these products, fifteen of them gain national patent. The Group is granted AAA credit rate enterprise by Industrial & Commercial Bank of China, and a member of Sinopec Corporation Materials Resources Market.
Puyang Zhongshi Group Co.,Ltd. is a professional manufacturer of various oilfield equipment and cementing accessories since 1997, restructured enterprise of SINOPEC. We have the certificatesof API-5CT, API-10D, API-11E, API-6A, API-11AX, ISO9001:2008, ISO14001:2004 etc. and 15 of products have gained national patents .We are the first-class supplier of resources market of SINOPEC and CNPC. Domestic:our products are widely used in power plants, coal mines, cement factories, fertilizer plants, petroleum industry, machinery industry, steel mills and other industries. Overseas:our main customers come from America,Russia,Vietnam,Middle East,Southeast Asia,Central Asia and Sudan,Yemen, Egypt etc.African countries .
Our company is willing to cooperate and make common progress with friends at home and abroad with first-calss products, first-class service and reasonable prices.
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
1. Q: Can I get Solid control system drilling desander unit samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products of Desander Plant Dealer in stock?
A : No. All bikes are to be produced according to your order including samples.
3. Q: What’s the delivery time?
A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: Can I mix different models of Hydrocyclone desander in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
6. Q:What's your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. Zhongshi Group is belongs to Hi&New Tech Enterprise of Henan Province and Sci-Tech Enterprise, which have more than 10 years exporting experience. So the Zhongshi Group can be your sincerely partners.The core of our company culture is honesty and credit. Highper has been alibaba’s Gold supplier . If you check with alibaba, you will see that we have never got any complaint from our customers.
