Features
2.High capacity
3.Heavy duty conveying paddles
4.Fabricated with heavy duty tubs
5.Oversize bearings and gears
6.Thick-walled shafts
7.Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox
8.The compound drive divides the operating load over an optimal combination of oversized helical and spur gears
9.Continuous grinding and abrading log washer paddles
10.Adjustable water discharge gates on both sides of lower end of the tub

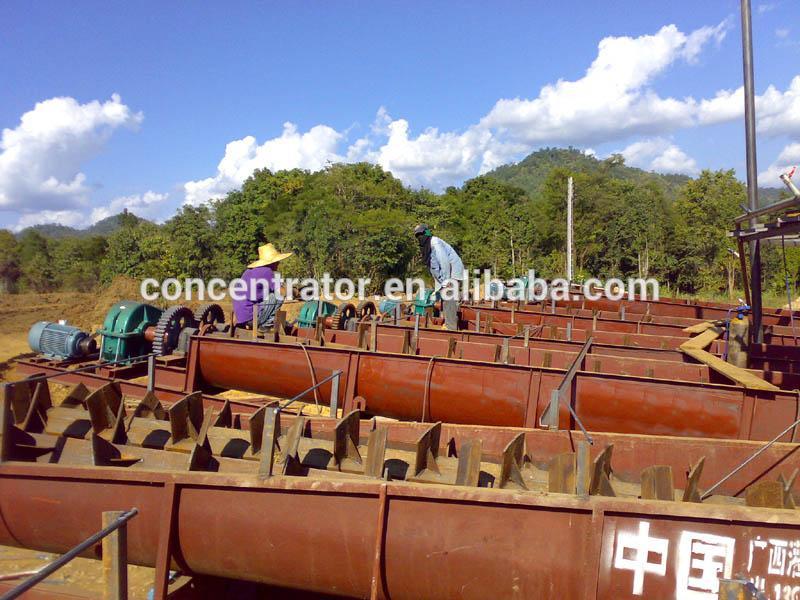

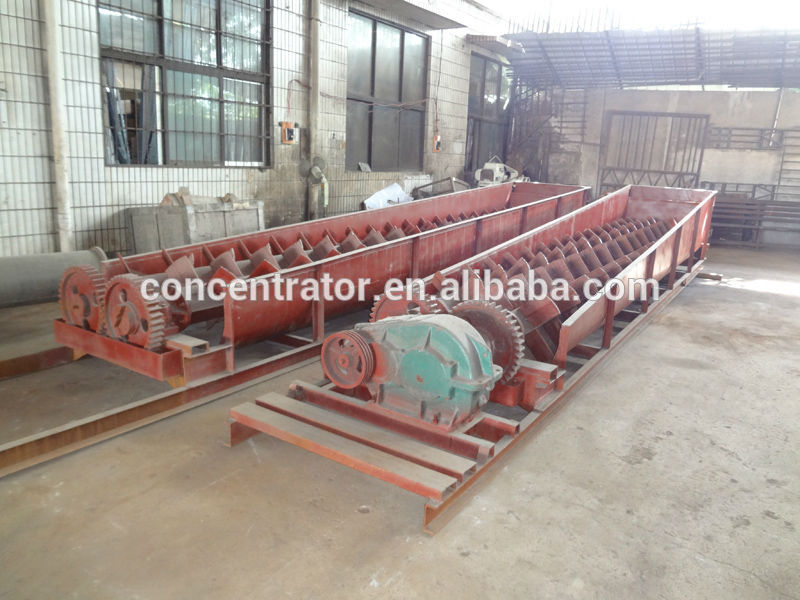

Our Log Washers are ideal for scrubbing difficult material such as gold ore. Tough insoluble clays, conglomerates and soft stone, and certain cemented aggregates are too difficult to clean properly in normal screw machines. The Log Washer thoroughly scouring, breaks down, and cleans the toughest materials. These high quality, highly durable machines perform well under the toughest clay conditions with minimum power, water and downtime.
Feed material is normally delivered between two to four feet from the feed end of the box and is subjected to an aggressive washing action resulting from the intermeshing paddle design. The paddles perform two functions: they help convey material and are the catalyst to material on material scrubbing. The clean material works uphill, between the shafts, and is discharged out the bottom of the box. Deleterious materials are absorbed into water and carried over a weir on either side of the box. The length of the washer box is dependent upon the percentage and tenacity of clay or the waste to be removed.
Technical Specification
Model | Spiral Dia. (mm) | Rotating Speed (r/min) | Feeding size (mm) | Tank slope (o) | Output (t/h) | Power (kw) | Weight (t) |
2RXL320 | Φ320×3200 | 28 | ≤30 | ≤12 | 10 | 4 | 0.9 |
2RXL400 | Φ400×4600 | 23 | ≤30 | ≤12 | 20 | 5.5 | 1.9 |
2RXL540 | Φ540×4600 | 23 | ≤30 | ≤12 | 25 | 7.5 | 3.9 |
2RXL750 | Φ750×7600 | 22.7 | ≤70 | ≤12 | 50 | 40 | 17.2 |
2RXL800 | Φ800×7600 | 22 | ≤70 | ≤12 | 70 | 45 | 18.9 |
2RXL914 | Φ914×7600 | 21 | ≤70 | ≤12 | 100 | 55 | 23 |
GANDONG Factory has one group of experienced professionals who specialized in over 20 majors including geology, mining survey , mining. mining machinery, layout for road and transportation in plant area , mineral processing, smelting, civil engineering, water supply and drainage, tailings, industrial design, electricity, automation, communications, investment banking, technical economy, budget estimate, and so on. So far, Well Company has got a dozen of technological achievements in gold, ferrous metal, nonferrous metal and nonmetal. Besides, Well has rich experience for mineral mining and processing, which involves nearly 70 kinds of minerals including gold, silver, copper, lead, zinc, iron, nickel, chrome, titanium, vanadium, tungsten, molybdenum, manganese, arsenic, stibium, mercury, tin, rare metal, silicon sand(quartzite), feldspar, fluorite, apyre, baroselenite, garnet, graphite, diopside, rutile, spodumene, tourmalin, phosphorite, plaster, etc.
