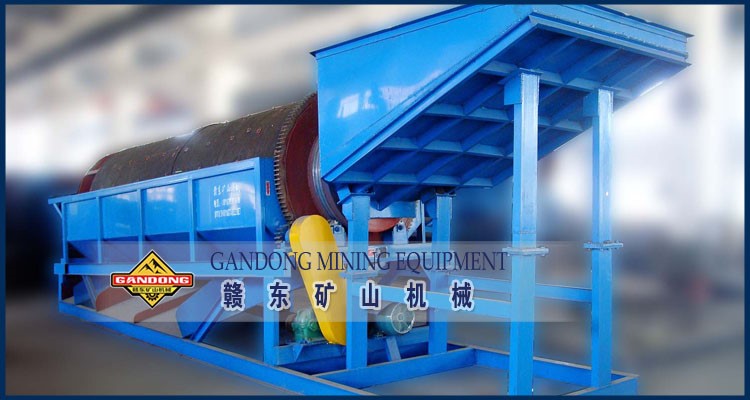

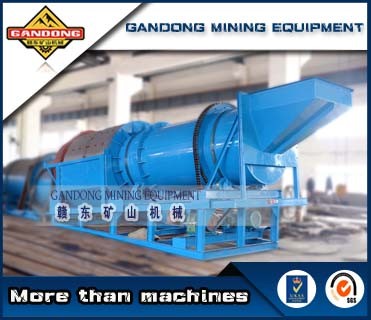

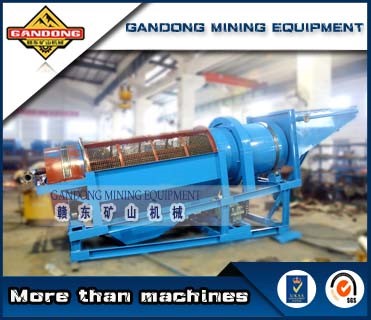

High-quality rotary drum filter
How it works: material feeds into the drum, is lifted up by the rotation as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
The rotary drum filter provides a simple, efficient and economical solution to upgrading a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality while allowing rapid and large volume processing. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal concentrator, spiral chute, jig, sluice, etc.
Our rotary drum filter is constructed of high-quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
| Model | Capacity (t/h) | Power (Kw) | Drum dia. (mm) | Drum len. (mm) | Screen size (mm) | Dimension (mm) | Weight (Kg) |
| GT1015 | 10-15 | 4 | 1000 | 1500 | 2-25 | 3400*1500*2030 | 2200 |
| GT1020 | 15-25 | 5.5 | 1000 | 2000 | 2-25 | 3808*1500*2130 | 2800 |
| GT1225 | 25-40 | 7.5 | 1200 | 2500 | 2-25 | 4176*1506*2232 | 4200 |
| GT1230 | 40-60 | 7.5 | 1200 | 3000 | 2-25 | 4780*1506*2450 | 4800 |
| GT1530 | 60-80 | 11 | 1500 | 3000 | 2-25 | 5535*1860*2525 | 5100 |
| GT1545 | 80-150 | 15 | 1500 | 4500 | 2-25 | 7021*1860*2528 | 6000 |
| GT1848 | 150-200 | 22 | 1800 | 4800 | 2-25 | 7400*2150*3000 | 7500 |
| GT2055 | 200-260 | 30 | 2000 | 5500 | 2-25 | 8500*2500*3600 | 8600 |
Qualified material, reasonable design and reinforced structure.
Dense and strong steel bar can protect outer screen in order to increase service life.
Chain transmission can increase stress surface in order to decrease wear and tear.

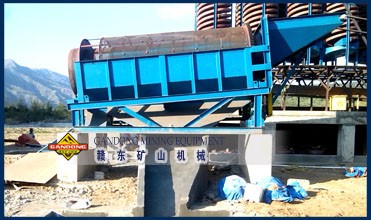

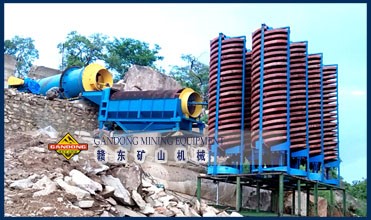

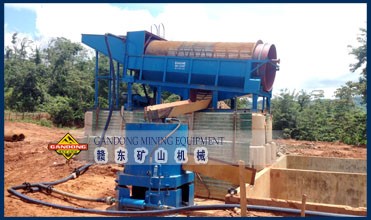

Application site
Rotary drum filter application in production of tantalum niobium ore in Nigeria.
Application site
Rotary drum filter application in production of chromite ore in Philippines.
Application site
Rotary drum filter application in production of alluvial gold ore in Laos.
Packing Details : Non-packed because its large size.
Delivery Details : 20-30 days after down payment.

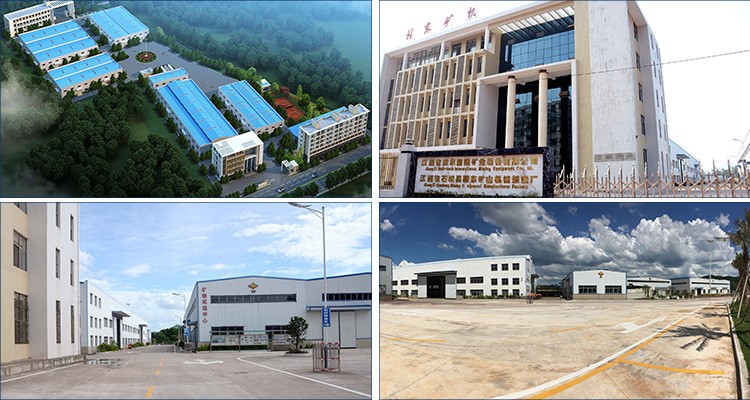

Factory

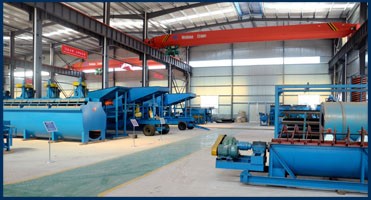

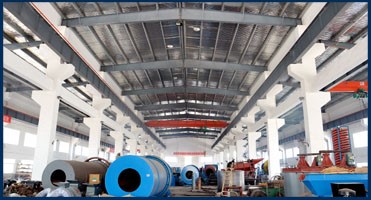

Workshop
Our Workshop
Warehouse
Our Warehouse

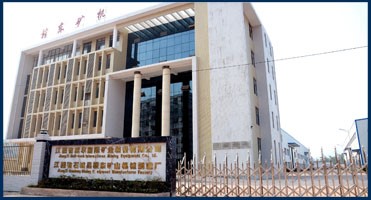

Office
Our Office
Customized design and production service
According to customer's different requirements to design and produce a really suitable machine. Final products have been inspected and tested strictly before leave factory. Save your money.
Layout design service
According to processing flow chart and site condition to design professional reasonable layout by direct-view 3D. Save your time.
Installation service
Our professional technicians will come to customer's site to install and debug the machines, and train the workers. Save your money and time.
1. Q: Can you provide production flow chart?
A: Yes we can. Our experienced and professional engineers can design scientific and reasonable flow chart for various ores, such as iron ore, tin ore, manganese ore, gold ore, tungsten ore, tantalum ore, etc.
2. Q: Can you test our sample ore to see what result can we get?
A: Yes we can. We have professional laboratory to offer ore test for customers by free charge.
3. Q: How do you provide after-sales service?
A: We can send our professional technicians to the working site for equipment installation, adjustment, and operation training. All of our technicians have rich overseas installation experiences. Anything you need in future we have professional person to follow up.
4. Q: What is your terms of payment?
A: T/T 30% paid in advance, and 70% before the shipment. You come personally or assign SGS for products inspection or we show product photos before you pay the balance.
5. Q: How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
6. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we supply spare parts also.
7. Q: Can I visit your factory?
A: Of course welcome. Many domestic and overseas customers visited our factory every year.
8. Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit, and we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Warmly welcome you come to visit our factory! Our factory located at Ganzhou city, Jiangxi province, China. Please take flight from your country to Guangzhou or Shanghai or Beijing airport in China, then transfer to Ganzhou airport, and then we will send our car to pick you up at Ganzhou airport.
Mobile trommel screen
It's all in one machine suitable for thin alluival ore, it can move one mining spot to another very expediently.
Rotary scrubber
It's a heavy clay washing machine, it can loose mud lump very efficiently.
Vibrating sluice box
It usually be used after trommel or scrubber to collect useful heavy mineral. It's high efficiency, simple operation but low cost.
