Automatic poultry crate cleaning machine/ egg plastic box washing machine/ stainless steel tray cleaner/ plastic pallet washer/ plastic cages washing and cleaning machine
1. Brief Introduction of plastic crate/pallet cleaning washer
This box washing machine is suitable for cleaning the turnover box/crate/pallet of various food processing enterprises such as meat, aquatic products, poultry, fruit and vegetables, etc.
The whole machine is made of high quality stainless steel, with hot water cleaning pump, the machine can copletely replace traditional manual cleaning operation to meet the cleaning requirements of a large number of turnaround boxes in different food enterprises.
2. Working principle of plastic crate/pallet cleaning washer
first put the crate/palets on the chains of inlet part, then chains will convey them forward into the washing tunnel, after 3 times different washing, the crate/pallets will come our from the outlet.
Washing tunnel of our standard machine is made up of 3 parts:
1. High temperature alkaline water cleaning part:with heating function, the Strong alkali water first clean Stubborn stain like Feces, oil stains,etc.
2. heating Detergent cleaning part: after first cleaning part, the products may be not very clean, so better washed twice, thus guaranteee washing effects.
3. clean water Rinse part: this part is the last washing part, to remove the Residual detergent, making the products clean completely, guaranteeing health and safety.
3. parameters of plastic crate/pallet cleaning washer
Model | XK600 |
Working height | 500mm |
Crate size | customized |
Air pressure | 3-4kg |
Water consumption | 100L/min |
Steam consumption | <80kg/h |
Total power | 15kw |
weight | 500kg |
size | 6600*1500*1700 |
4. Features of plastic crate/pallet cleaning washer
1. High capacity | Adopting Variable frequency speed regulating motor, conveying speed can be adjustable |

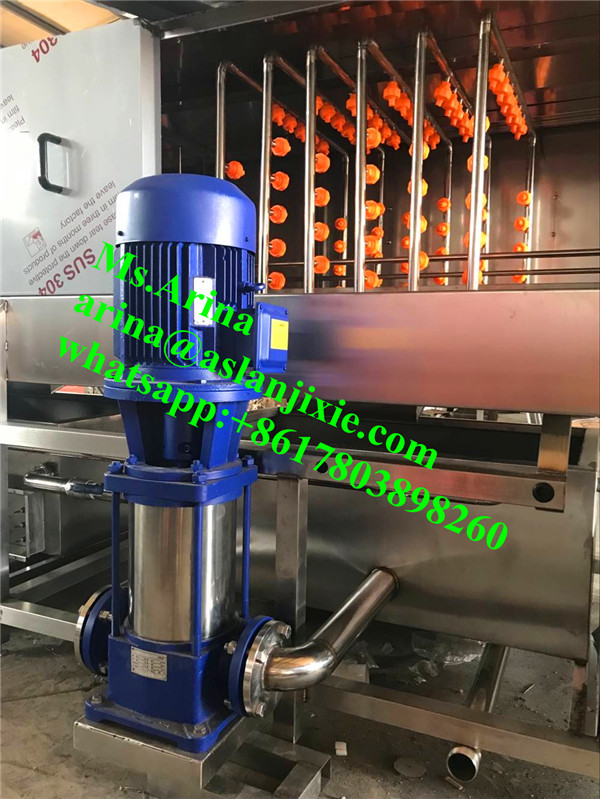

2. Water saving | Water tank adopting Centrifugal pump, circulating spray water cleaning |
3.Thorough cleaning | 3 times of Both hot and cold water cleaning, making cleaning more thorough |
4.Stain filtration | Each water tank is equipped with a filter, easy to clean up the waste at any time |
5. Smoothly running | The unique track plus hook design makes the turnover box more stable, and the distance can be adjusted according to the width of the box. |
6.easy to clean | main parts are detachable, and all the pipes and joints are all designed with quick change joints, so that no tools can be assembled and disassembled for convenience, sanitation and clean-up without dead ends. |
7. customized | You can choose 2 washing parts or adding drying part and sterilizing part according to your specail needs |

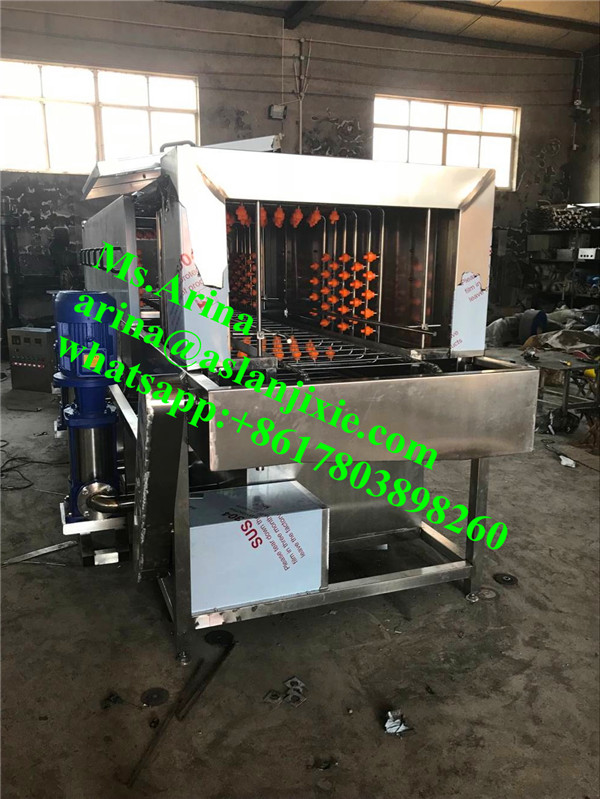

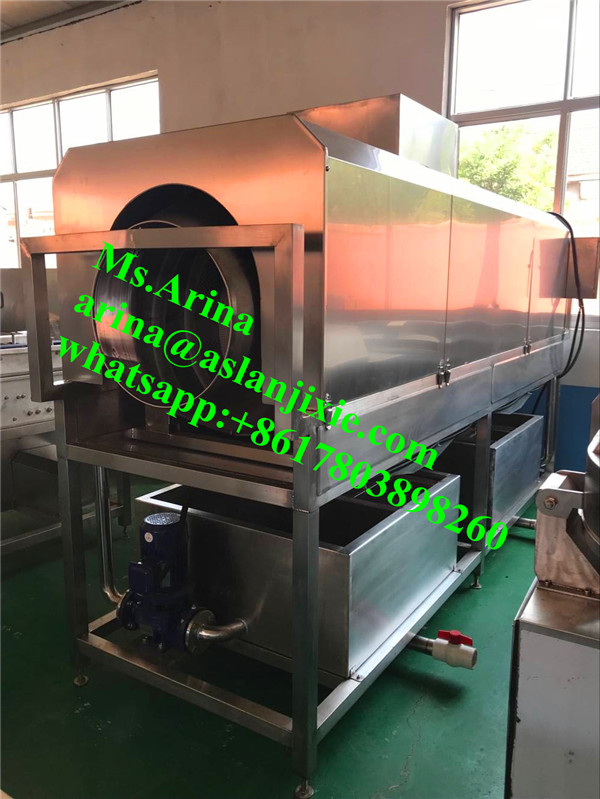

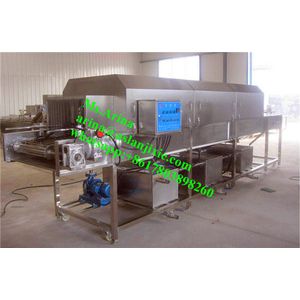

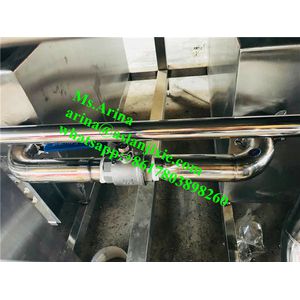

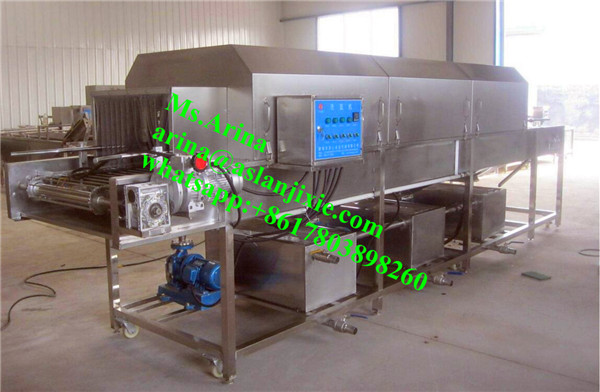

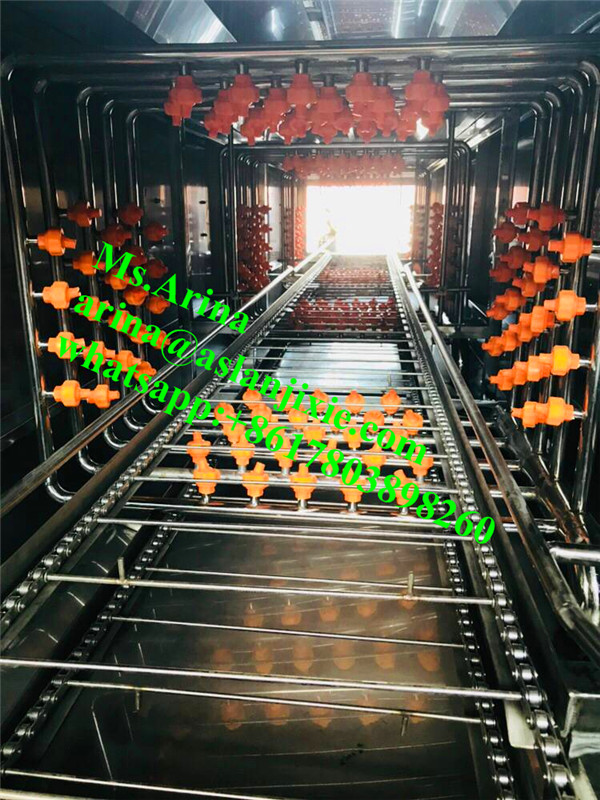

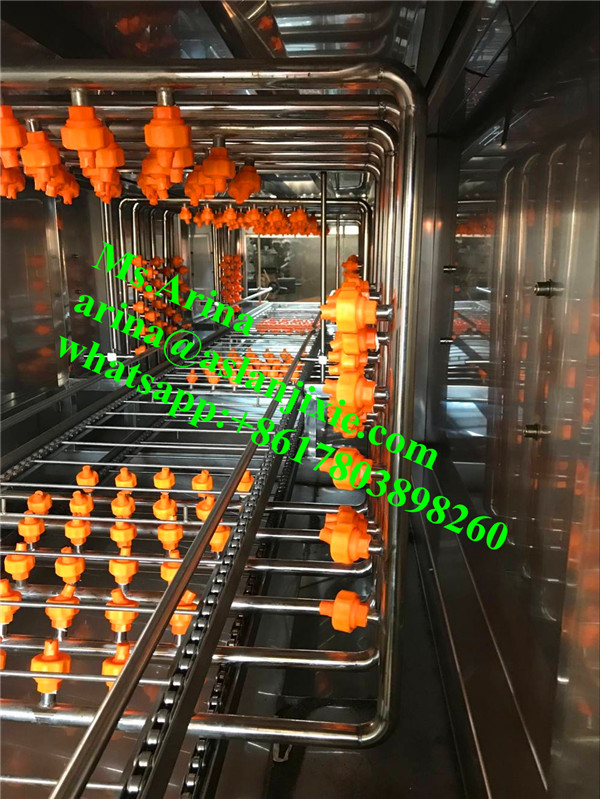

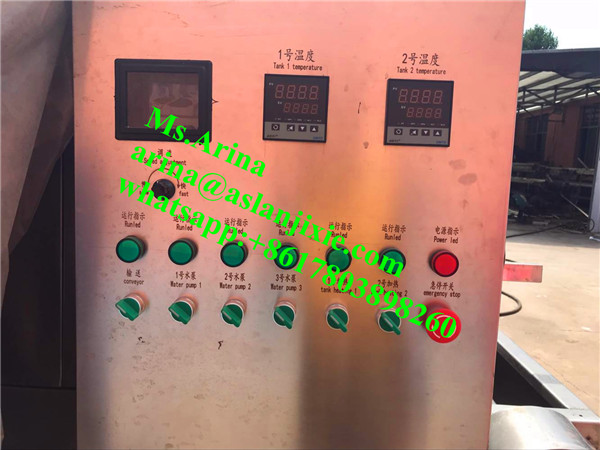

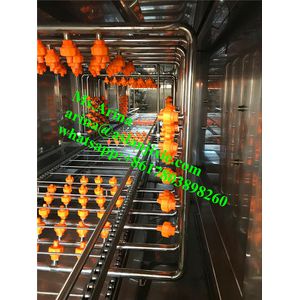

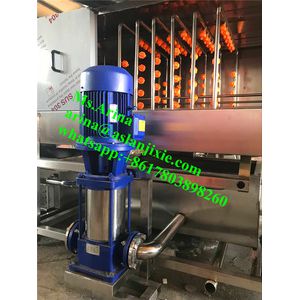

5. Detailed pictures of plastic crate/pallet cleaning washer

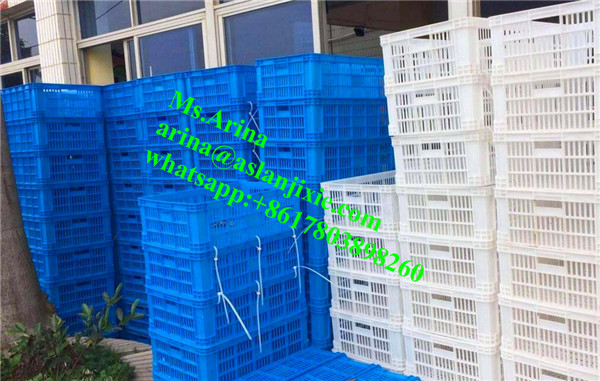

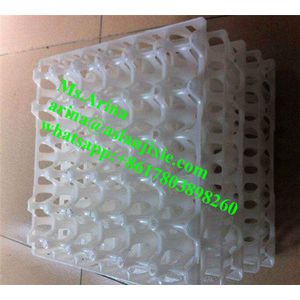

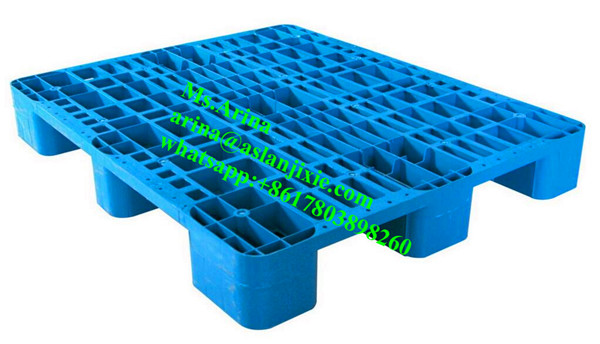

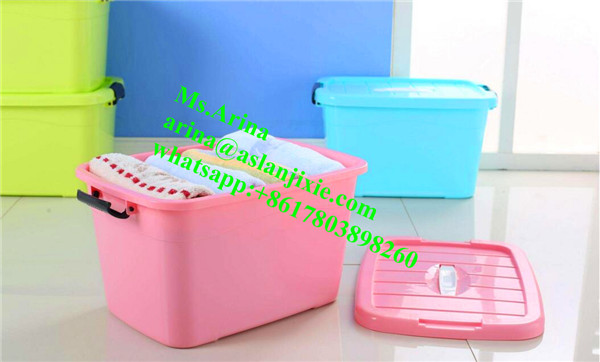

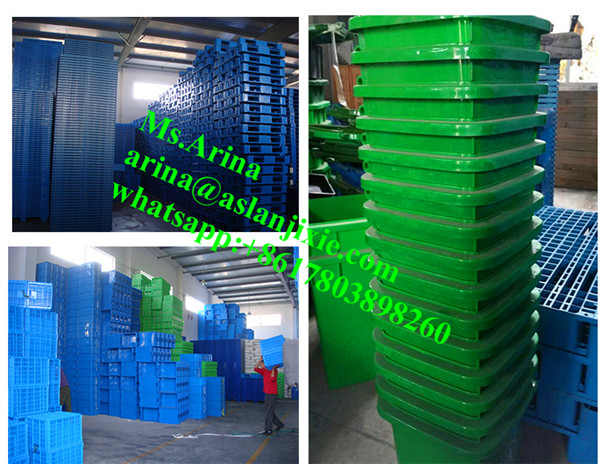

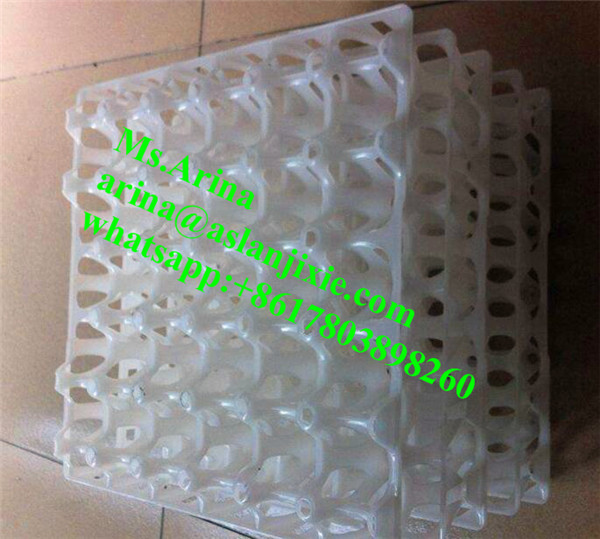

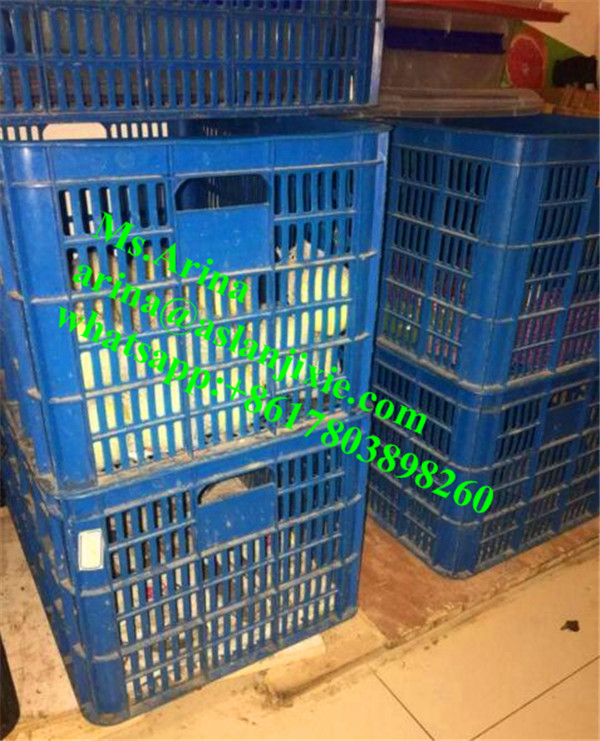

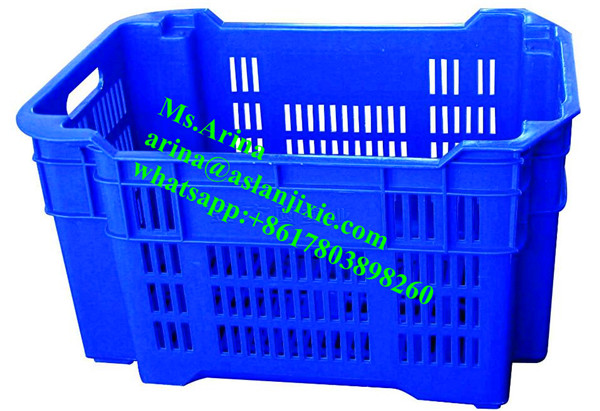

6. Working effects of plastic crate/pallet cleaning washer
