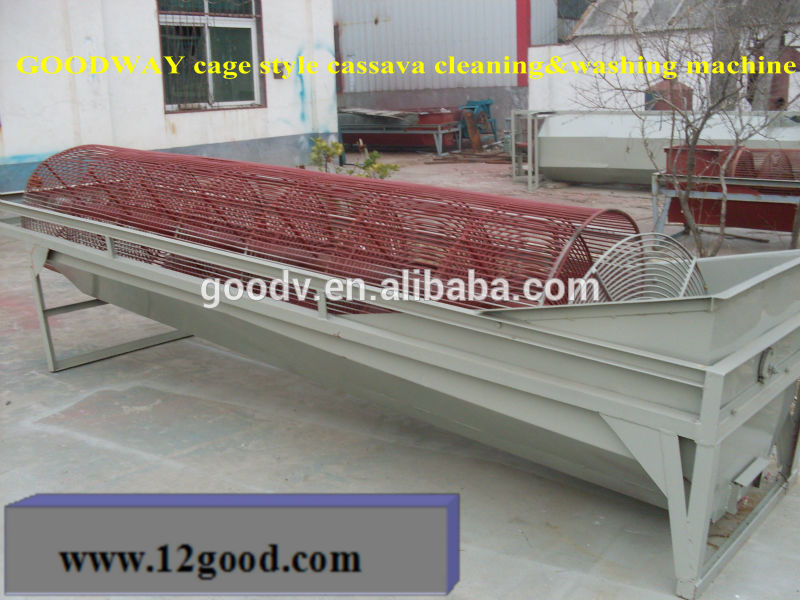

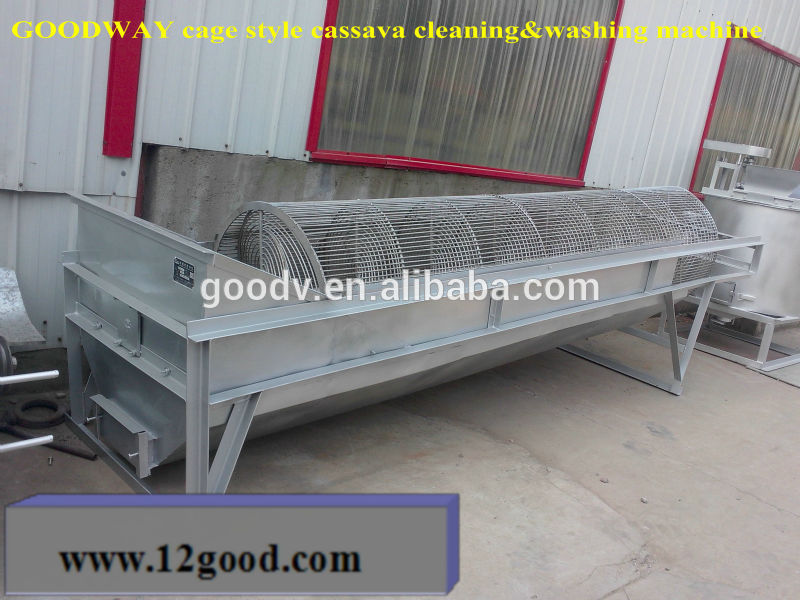

GoodWay factory supply cage type cassava cleaning machine for cassava starch processing/cassava cleaner
Goodway cassava processing machinery:
We are professional manufacturer of cassava starch &flour processing machinery since year 1992 in NanYang,HeNan Province,focusing on all kinds of tubers crops processing machinery always,such as cleaning machine ,peeling machine ,chipping machine ,dehydration machine ,drying machine ,packing machine ,etc for cassava,potato,etc .
design ,installation ,debugging &training and after services offered by us and turn-key project scheme available for cassava flour&starch processing machinery.
Advantage :
1.widely used for many kinds of Tubers material peeling and cleaning
2.Peeling process can be controlled according to actual status .
3.continuous operation available ,can connect to other cleaning equipments
4.High efficiency :8-10times than traditional operation
Equipment character:
1. Mainly used for cleaning potato materials with mud, stones and potato skins.

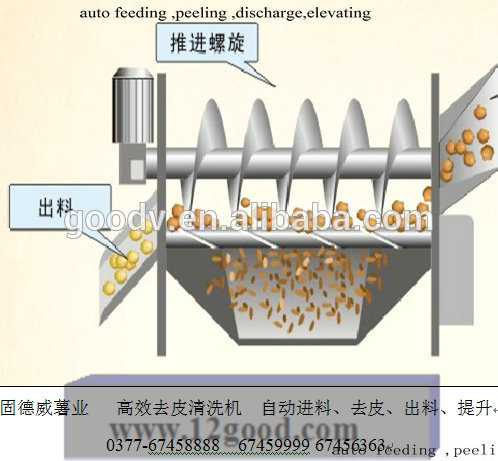

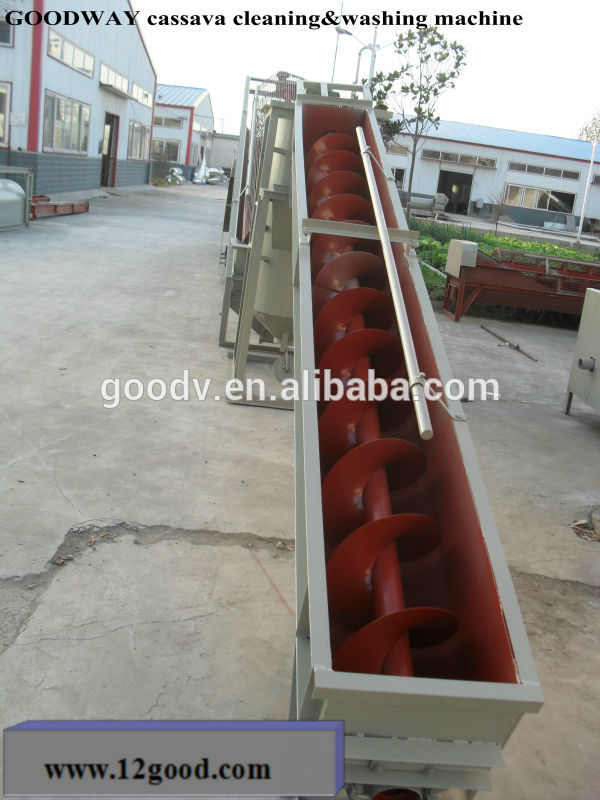

2. Adopts horizontal in spirals guide roller in feeding, material going under the pushing of spirals guide roller.
3. The structure is simple, has large quantity capacity, cleaning effect, saving energy and water.
4. The machine going smoothly, the material broken rates lower, which benefit at the extraction of starch.
5. This machine can be widely used for cassava starch processing industry raw material cleaning.
Main technical parameters:
Model | Diameter of cage (mm) | Speed of roller(r/min) | Length of roller(mm) | Power (Kw) | Dimension (mm) | Weight (Kg) | Capacity (t/h) |
GD100 | 1000 | 20 | 4200-6800 | 5.5/7.5 | (4200-6800)*2300*2000 | 3000 | 15-20 |
GD120 | 1200 | 20 | 5500-7500 | 7.5 | (5500-7500)*2300*2000 | 3800 | 20-25 |
Peeling effect view

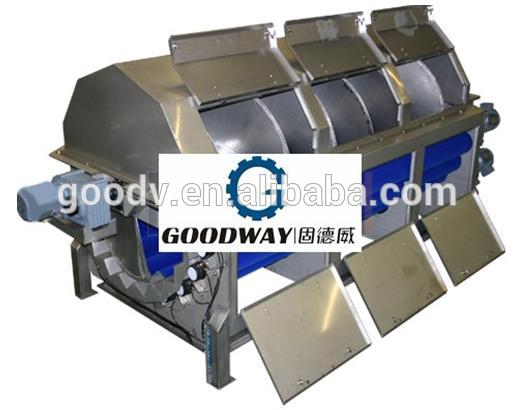

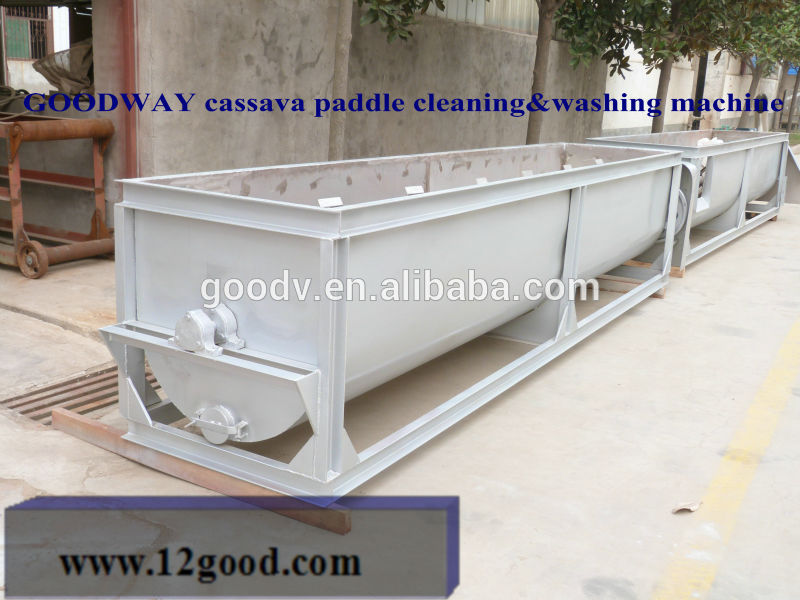

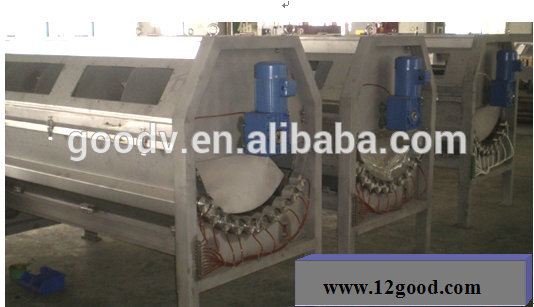

Other cleaning and washing machinery :
