INTRODUCTION TO THE PRODUCT:

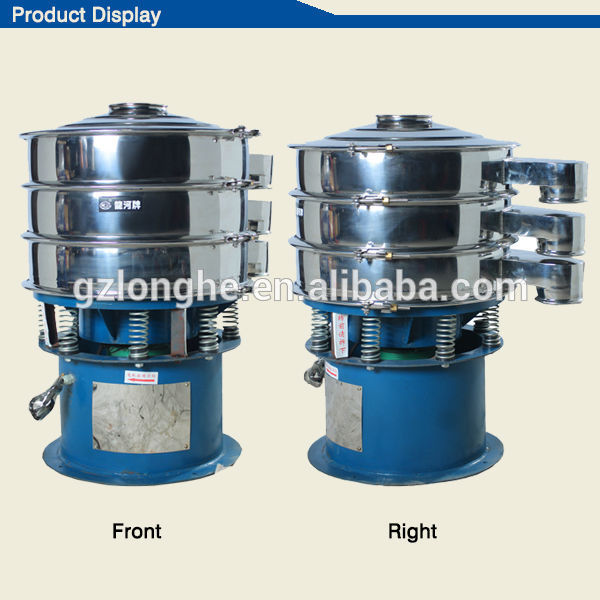

3D Vibrating Sieve Filter is the latest and most advanced sieving equipment in the world with the functions of horizontal screen,swinging screen and drum screen,and suitable sieving powder and granule materials and liquild in different industries.
PROPERTIES:
1.The machine adopts specical high performance vertical motor to provide powerful force and supports constant work.
2.The parts which contact material are made of class a stainless steel board,and is sanitary and axenic with high corrosion and wear resistance.

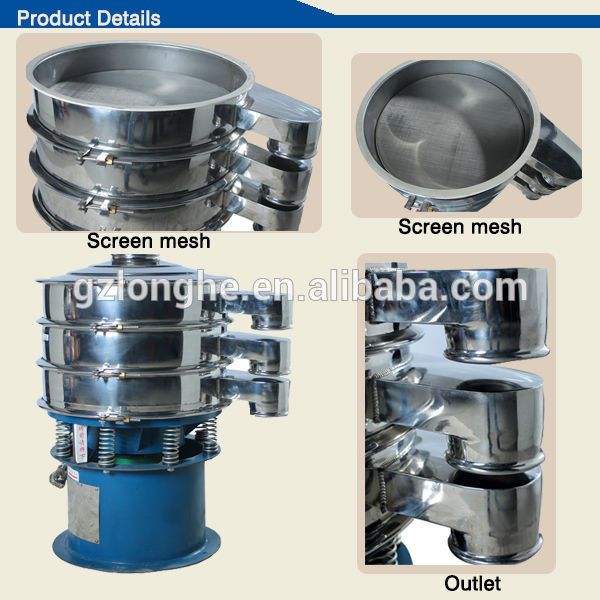

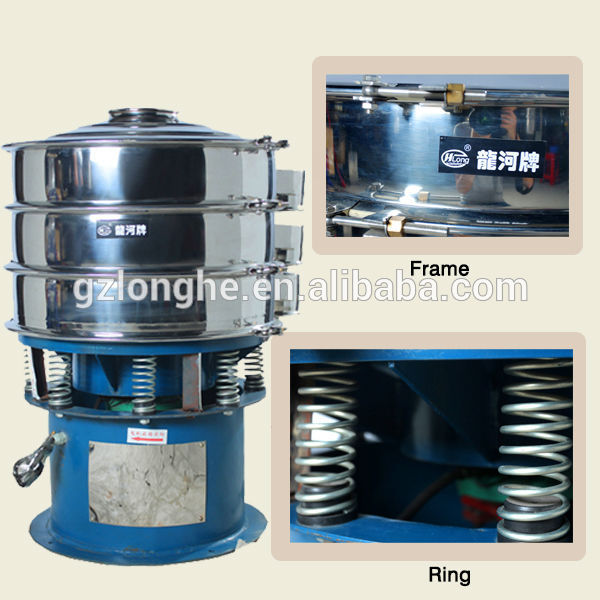

3.Vibrating Sieve adopts unique V-shaped reinforced lock ring and professional mesh frame,and is safe and soild.

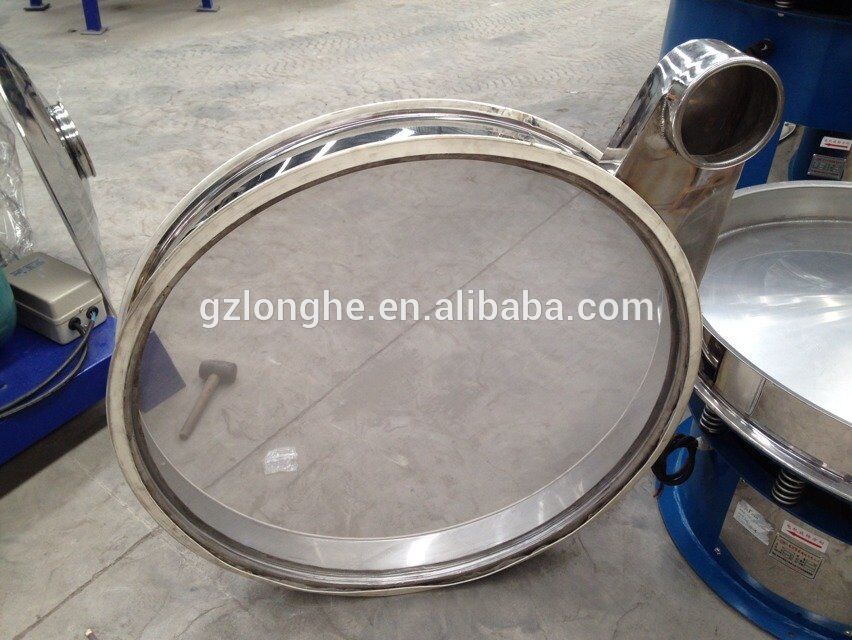

4.The sieve adopts the top stretching technology in the industry,which powerfully increases the effective area of the sieve with extremely high sieving precision,thus increasing the output volume.
5.Convenient cleaning,the mesh won't be jammed and can be used repeatedly,fast and conveinet 4nt for replacing mesh within 3-5min.
6.Wide application as the ideal equipment for classifying,impurity removing,materials mixing,vibrating and filtering for industries such as foods,drink,medicine,chemicals,plastic,grinding materials,ceramics,paper making and nanometer materials.
7.Ideal equopment for soild and liquid separation.
TECHNICAL PARAMETERS:
| Model | WR-400 | WR-600 | WR-800 | WR-1000 | WR-1200 | WR-1500 | WR-1800 | WR-2000 |
| Nominal Diameter(mm) | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 |
| Mesh Diameter(mm) | 340 | 530 | 720 | 900 | 1100 | 1400 | 1710 | 1910 |
| Effective Sieve Area(mm) | 0.09 | 0.22 | 0.4 | 0.63 | 0.95 | 1.5 | 2.3 | 2.86 |
| Max Feeding Granule(mm) | <10 | <10 | <20 | <20 | <20 | <20 | <30 | <30 |
| Sieve Specification(inch) | 2-325 | 2-325 | 2-325 | 2-325 | 2-325 | 2-325 | 2-325 | 2-325 |
| Number of Layers(layer) | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
| Vibration Times(times/min) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Power(kw) | 0.18 | 0.25 | 0.55 | 0.75 | 1.1 | 2.2 | 3 | 4 |
