Large Capacity Sludge Dewatering Machine Belt Filter Press

is an industrial machine, used for solid/liquid separation processes, particularly the dewatering of sludge in the chemical industry, mining, food processing and water treatment.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Jiangsu, China (Mainland)
  • PONIS
  • DYQ-1000
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$30~8

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Jiangsu, China (Mainland)
Brand Name
PONIS
Model Number
DYQ-1000
Voltage
380V 50HZ
Power(W)
2.2kw
Weight
2.9-7.5ton
Dimension(L*W*H)
3800*1420*1900MM
Certification
ISO9001/14001, ISO9001, ISO14001
Warranty
1 Year, 1 Year
After-sales Service Provided
No overseas service provided
Name
Large Capacity Sludge Dewatering Machine Belt Filter Press
Material
304 Stainless Steel
Color
White, Blue,...
Application
Wastewater Treatment
Size
OEM
Operation
Full automatic
Function
Thickening, dewatering
Feature
Eco-friendly

DETAIL DESCRIPTION

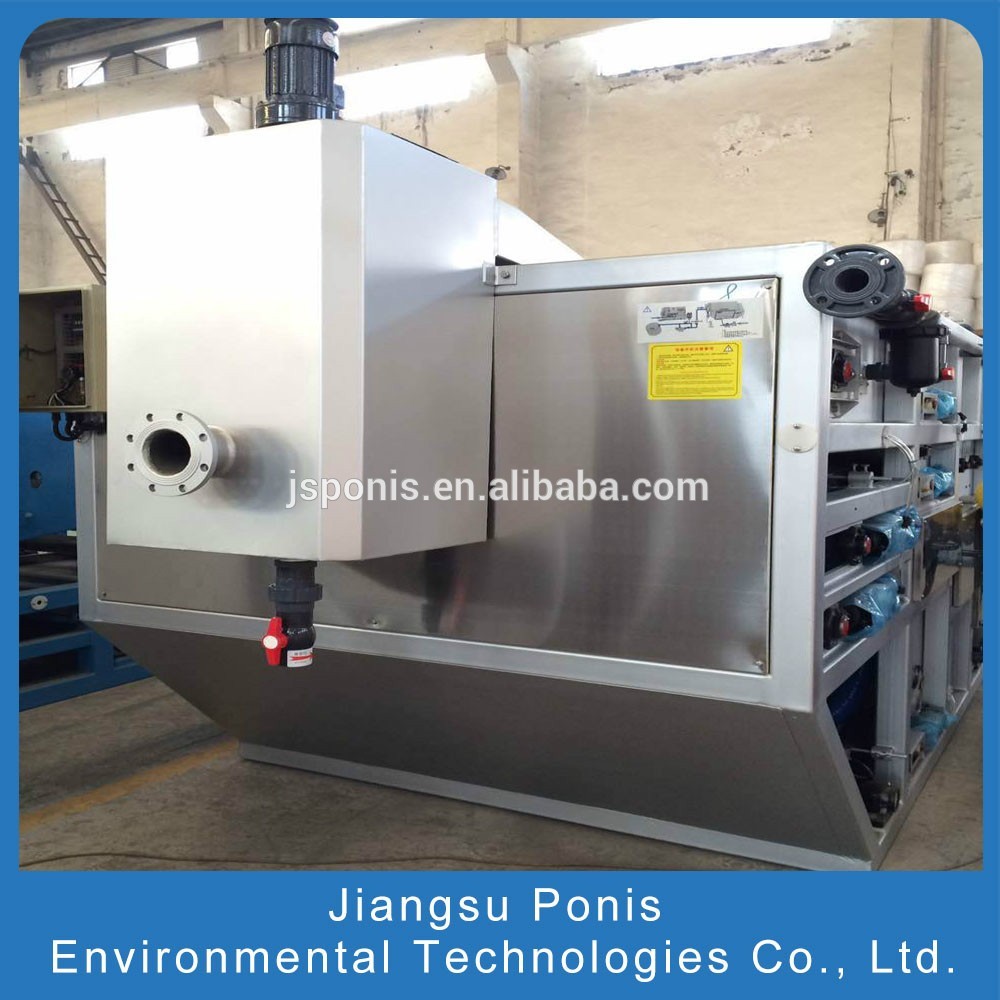

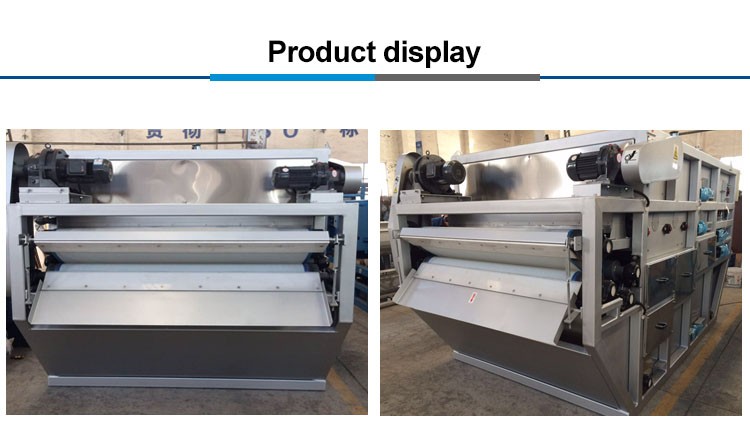

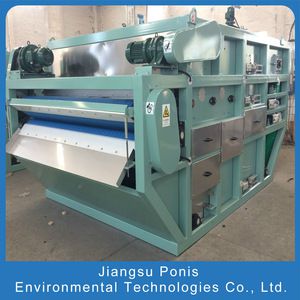

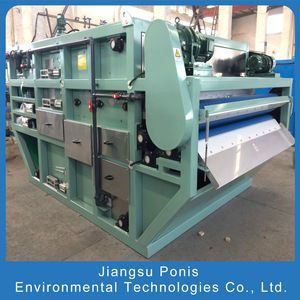

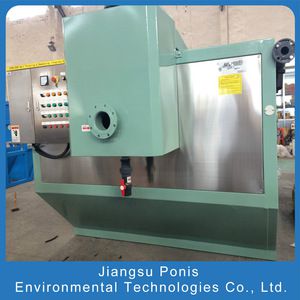

Large Capacity Sludge Dewatering Machine Belt Filter Press

The belt filter (sometimes called a belt press filter, or belt filter press) is an industrial machine, used for solid/liquid separation processes, particularly the dewatering of sludge in the chemical industry, mining, food processing and water treatment. The process of filtration is primarily obtained by passing a pair of filtering belts through a system of rollers. The system takes a sludge as a feed, and separates it into a filtrate and a solid cake.

Feature

1. Fully-automatic& continuous filtering

2. Lowest moisture

3. ISO9001/14001

4. Energy saving

5. Service very good



Model

DYQ-500DYQ-1000DYQ-1500DYQ-2000DYQ-2500
Belt width (mm)5001000150020002500
Treating capacity (m³/h)1~55~1010~1515~2020~25
Velocity (m/min)3.0~15(concentrating zone)  1.2~6.0(dewatering zone)
Concentrating motor(kw)0.550.550.751.11.5
Dewatering motor(kw)0.751.51.52.23.0
Outlet height (mm)700700700700700



GOOD QUALITY IS OUR CULTURE!

GREAT SERVICE IS OUR MISSION!

Founded in 2010, Jiangsu Ponis Environmental Technologies Co., Ltd is a professional manufacturer integrated with the installation, debugging of the environmental equipment, as well as the project contracting. Covering an area of over 10,000 square meters, we have the world first-class R&D department, all kinds of monitoring equipment are available to do micro-analysis of the contaminant.

Over the last 10 years, we have gained the popularity of many customers both from home and abroad with our high quality and warm hearted service.

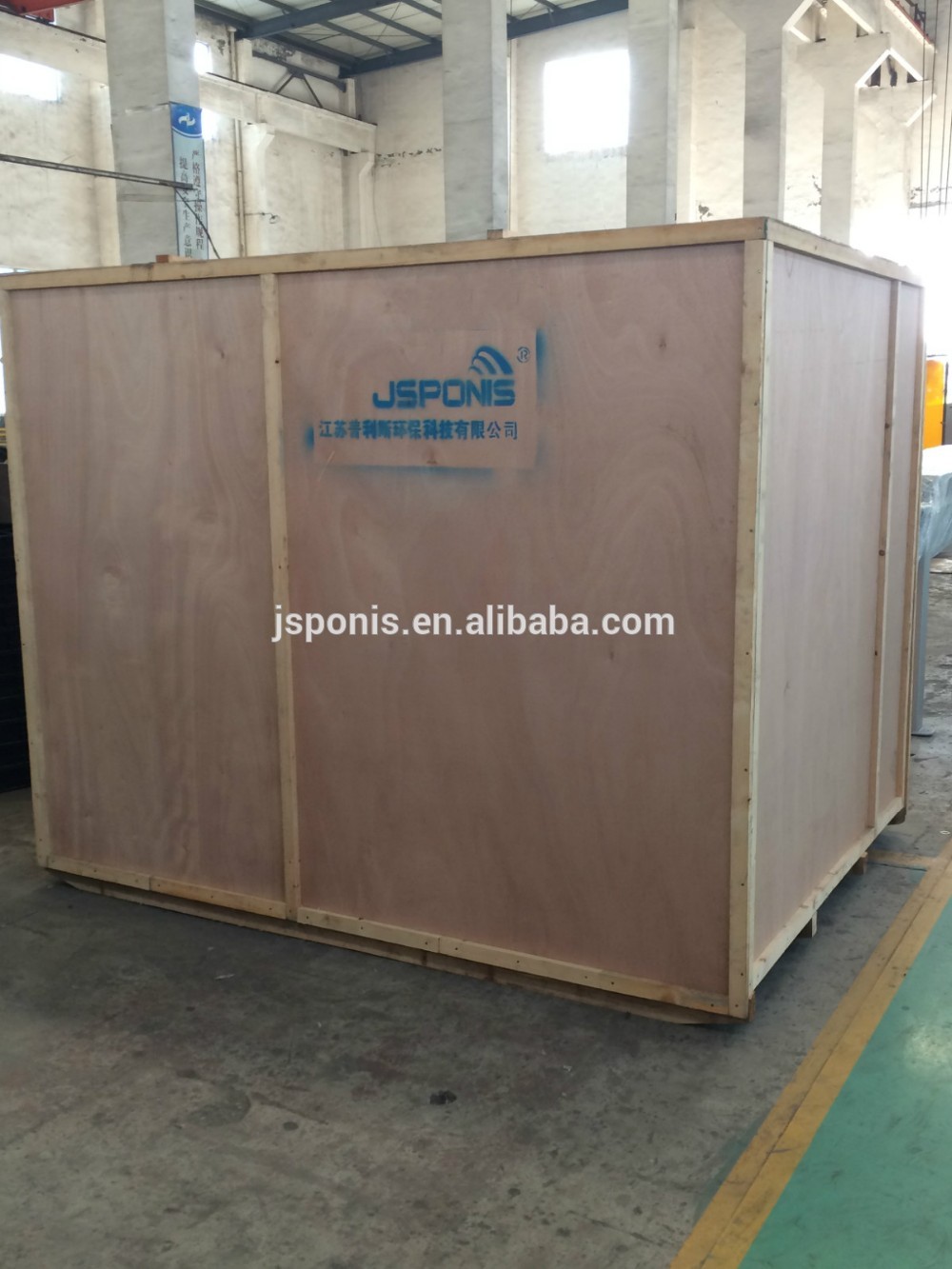

Export standard wooden box to avoid damage during transporation

Thank you for your time! Your order, our honor!
