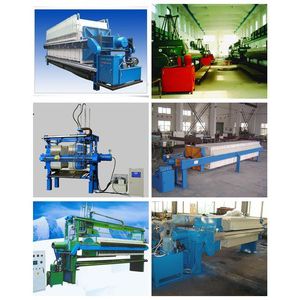

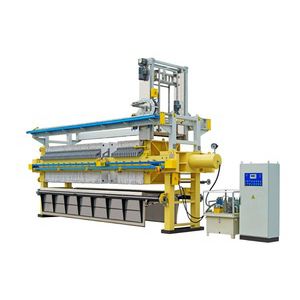

Automatic Membrane Filter Press
Automatic Membrane Filter Press is solid-liquid separation device is widely applied in Chemical industry, Mining and metallurgy industry and so on.
Advantages
1. High dewatering efficiency, low energy consumption;
2. Patented sealing device, no slurry leaking when under high pressure, wear-resistant the filter cloth;
3. Filtration process can be optional upon customers’ requirement;
4.With PLC based electrical control panel, filtration process operation including filtration, air-drying discharge, filtration under press filtration is fully automatic;
5. Easy operation and maintenance.
Technical parameters
Items | 1 | 2 | 3 | 4 | 5 |
Filtration area (m2) | 15 | 30 | 60 | 80 | 120 |
Filtration plate size (mm) | 1000×1000 | 1250×1250 | 1250×1250 | 1500×1500 | 1500×1500 |
Filtration pressure (Mpa) | 1 | 1 | 1 | 1 | 0.8 |
Power | 2.2 | 4.0 | 4.0/7.5 | 4.0/7.5 | 5.5/11 |
Dimension L×W×H (m) | 2.9×1.3×1.6 | 3.0×1.6×1.9 | 4.6×1.6×1.9 | 4.6×1.6×1.9 | 6.1×2.3×2.3 |
Weight | 4200 | 7200 | 10000 | 12500 | 13800 |
Remarks: Equipment includes: 1 rake (including: oil cylinder assembly, oil cylinder bearing, pressure plate assembly, beam, thrust plate assembly, feeding casing pipe), filter plate, 1 set electric control hydraulic station, 1 set filter bag. |
Applicable field
1) Chemical
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)
2)Foods
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices
3)Sewage
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment
4) Pharmacy
Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood
5) Pottery clay
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces
6) Metallurgy, coal
Gold, silver, copper, zinc ore mineral powder, etc
7) Petroleum
Diesel oil, sesame oil, shortening dewaxing etc

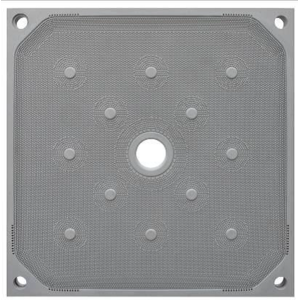

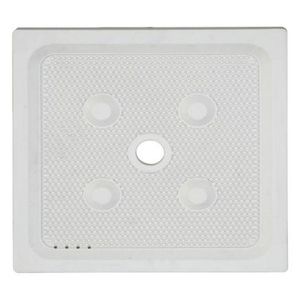

Filter plate picture and drawing
