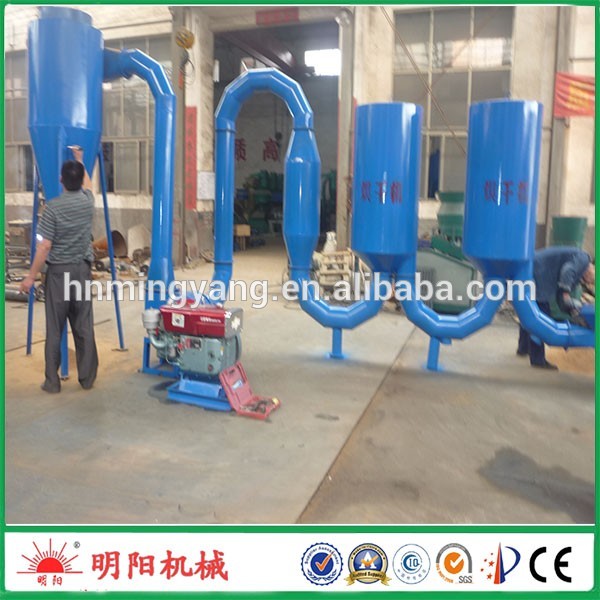

Mingyang machine with CE ISO hot air type wood biomass sawdust flash dryer

Biomass Dryer is professionally designed for drying different kinds of wood sawdust.

Technical Feature

  • New
  • Flash Drying Equipment
  • Henan, China (Mainland)
  • MINGYANG
  • HJ-6
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~3

PRIMARY PARAMETERS

Condition
New
Type
Flash Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
MINGYANG
Model Number
HJ-6
Voltage
380V
Power(W)
5.5kw
Dimension(L*W*H)
2.2*1.45*1.6+1.5*1.65*1.05m
Weight
1800KG
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product name
sawdust flash dryer
Raw material
sawdust or small wood powder
Raw material requirements
1-5mm
Moisture before drying
20-50%
Moisture after drying
8-12%
Capacity
400-500kg/h
Consumption of wood waste
20-30kg/h
Used
drying wood sawdust moisture content
Advantage
Low Consumption High Efficiency
Pollution
no

DETAIL DESCRIPTION

Mingyang machine with CE ISO hot air type wood biomass sawdust flash dryer

Product Description

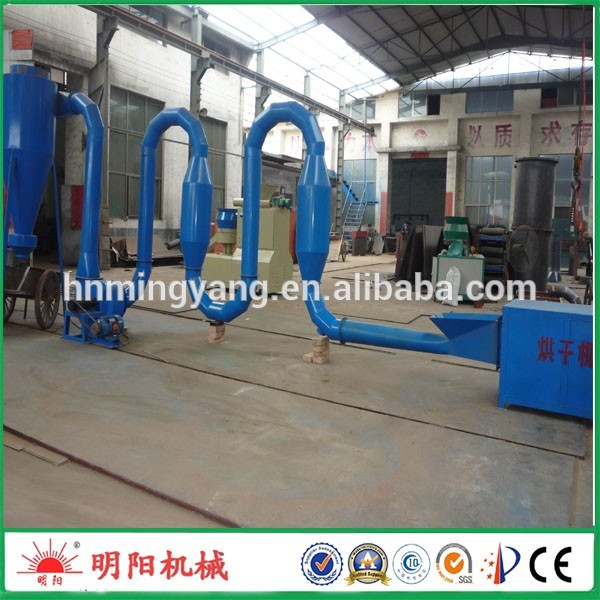

Introduction of sawdust flash dryer

Biomass Dryer is professionally designed for drying different kinds of wood sawdust. It has advantages of low cost, low consumption, high capacity, easy operation and maintenance, etc. In addition, the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation.The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly.And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of drier, thus wet materials is finished to dry, and the dried materials are expelled out by the exhaust blower (fan).



Working principle of sawdust flash dryer

Hot air enters into stirring and drying chamber from the bottom of dryer with suitable atomizing speed. It exerts strong shearing, blowing, floating and rotating effect to raw material.Therefore raw material is granulated through centrifugating, shearing, impacting and friction effect. It strengthens the process of heat exchange. At the bottom of dryer, the large and damp granule is crushed under the action of stirrer and the granule that is small in particle and contain less moisture will lift accompanied with revolving air stream. During the period of lift, it is dried further. Because gas and solid two phases flow in heat exchange, so the machine has strong drying capacity.



Raw meterial of sawdust flash dryer

Biomass Drye is suitable for starch, rice flour, food, chemical, medical industry and other fields for drying powder and thermal sensitivity materials.
raw materials: rice husk, saw dust, wood dust, wood shavings, wood chips, branches, etc. with the diameter less than 3mm and length less than 5mm. The temperature of drying machine ranges from 180°C-250°C.

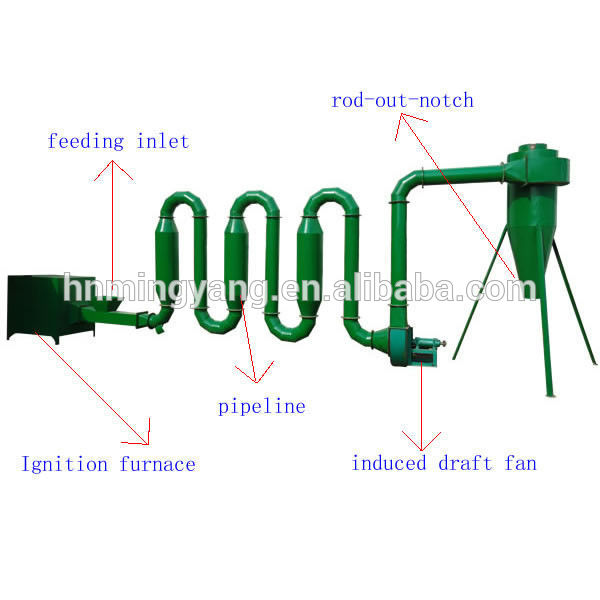

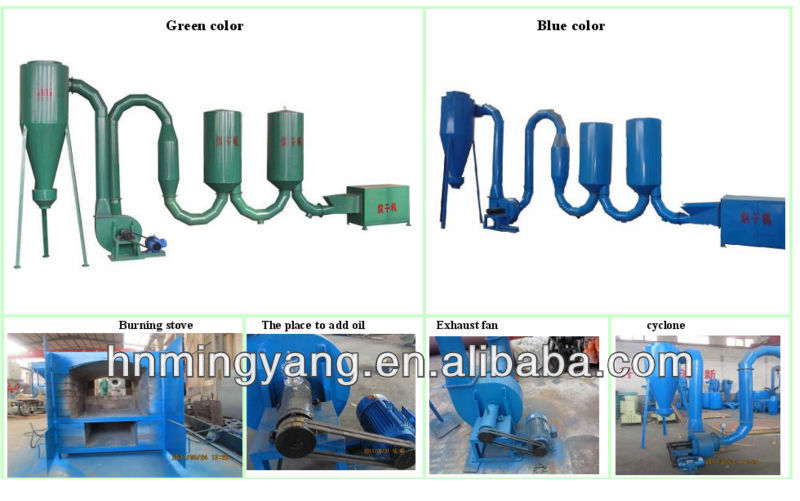

The structure of sawdust flash dryer

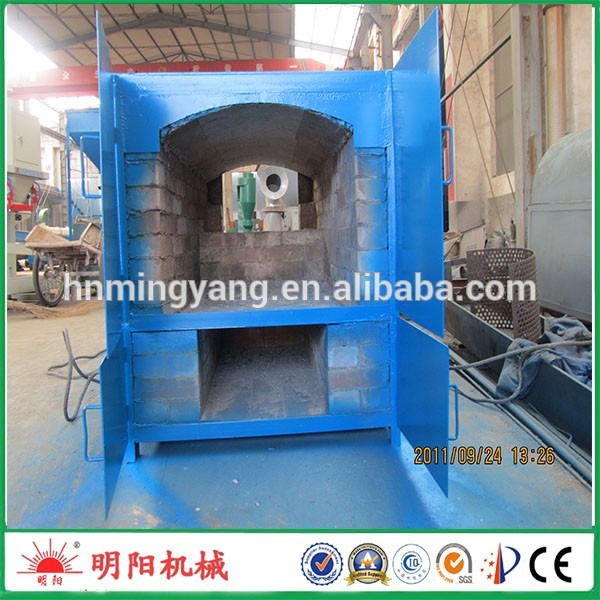

1. Fireplace is the place where the firewood, coal, gas or other material is burning for heat, there is a specially designed buffer which can make the hot air through but provent the fire in.
2. Inlet place is beside the fireplace, thus the material can be dry at a early time.
3.Roller is running evenly to make the material drying and processing at the same time.

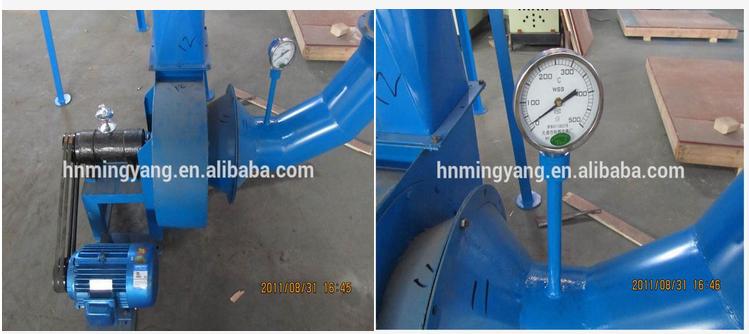

4. Discharging unit is installed with thermeter to control drying temperature. The temperature change of dryer's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
5.The cyclone is for the discharging, which is more convenient and air lock for making the discharging little noise and no waste.



Basic feature of sawdust flash dryer

1.Feed costs and reduce environmental pollution

2.Direct heating, drying quickly, folding installation, save a space

3,the production efficiency: hot air for 180 ℃,the hot air temperature not below 180 ℃, can be up to 300 ℃.

4,fuel can choose: wood (broken wood), coal, steam or electrical heating.



Technology parameters of sawdust flash dryer

Model

Power

(kw)

Capacity

(t/h)

Drying the

Moisture content

Weight

(t)

The area of land occupied by ( m³)

HJ-4

4

0.3-0.4

35%

1

8*1.5*3.5

HJ-6

5.5

0.4-0.5

40%

1.5

10*1.5*3.5

HJ-10

15+0.75

0.6-0.7

50%

1.8

14*2*3.2







Production Flow

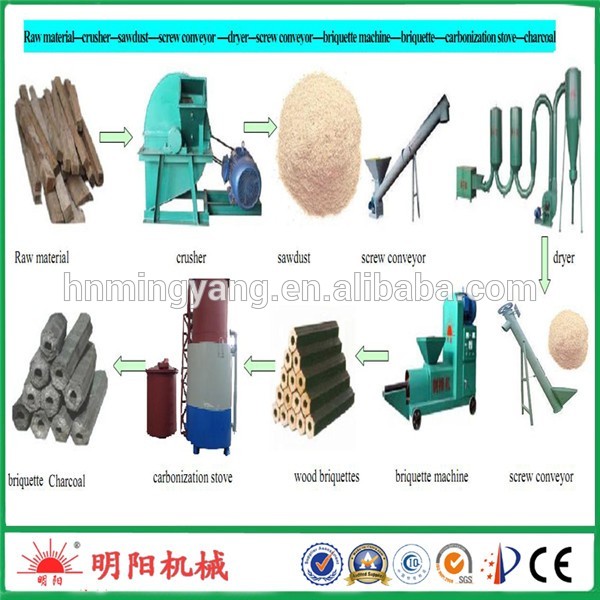

The whole line of making wood briquette charcoal

1.Crush the raw material into small pieces (diameter is about 3-5mm).

2.Dry the material by machine or dried it in the sun , till the moisture is less than 12%.

3.Put the material into feed let of briquette machine.

4.Produce the briquette stick from biomass material without any additive.

5.Carbonized the briquette stick.

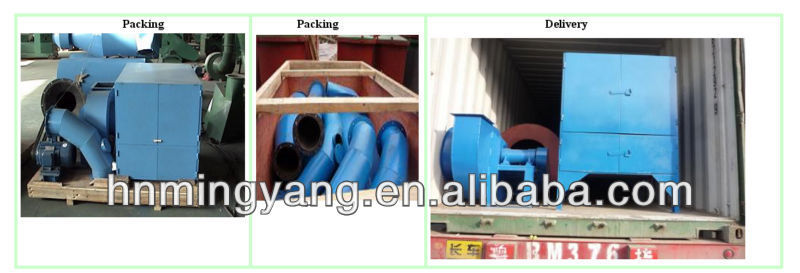

Packaging & Shipping

The machines are packing in the plywood boxes, then put into the 20 feet or 40 feet container in delivery.





Company Information
Company introduction

Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment ( biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery)

  • one of the largest and earliest manufacturers of the charcoal making machine, biomass briquette machine and
  •  wood pellet production line in China with 30 years experience
  • Covered an area of 12000 square meters, currently has more than 120 employees, divided to 7 department
  • Designed and produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China
  • Products are widely accepted in both domestic and world market ,more than 150 countries
  • The company enlarged for building one experimental Center of high-tech automtaic production equipment to meet the market requirement
  • Professional after-sales service team to be able to handle client issues in a timely manner.
  • high level standard workshop, advanced producing equipment, Experienced technicians, fine workmanship with 30 year working experience
  •  stock for based goods, accessories in stock to meet you need,stocked your samples and all the details of the goods of the next order.

  • strict inspection personnel and process, and we are strictly ensure the quality of the international standard

  •  We have the test center of the machine, Each machine will running before delivery

  • recommend clients for free, offer the layout drawing and the profit table and  install video and free stuff

    training

Certificate & Honors

we have been get the CE, SGS, ISO9001 :2008 and the other international quality standard

working team

We have one outstanding working team for the research and development of the machinery, and we can give you the best quality of the goods and most professional service

company culture
  • Vision :To provide the high quality of extraction and technical knowledge in biomass energy developement from the waste
  • Mission: To be fully involved in providing technical knowledge of Biomass Energy Development
  • Objective:                                                                                                                                                             1.To  provide technical know-how
    2.To encourage buyer  to venture high value and profitable projects
    3.Ready buyer for Biomass Energy
