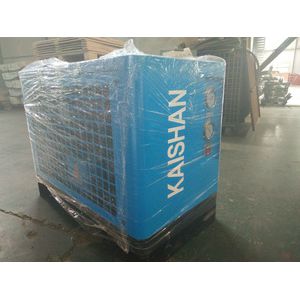

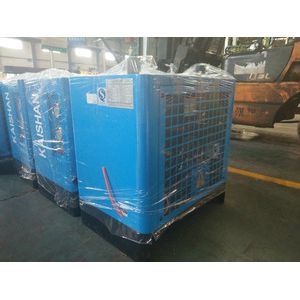

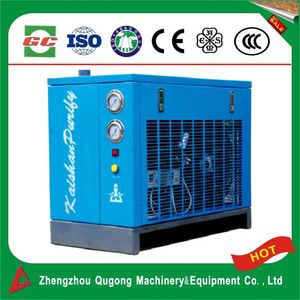

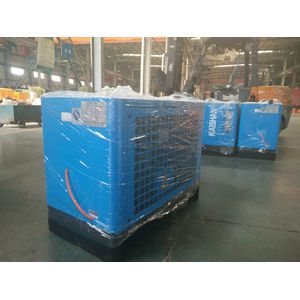

Made in China compressed air dryer/Refrigerated Air Dryer for Industrial Air Compressor
Inlet air temperature:
Normal temperature:less or equal o 45 °C
High temperature:more or equal to 80°C
Cooling way:air cooling
Pressure dew point:2-10 °C
Inlet pressure:0.6-1.0mp
Pressure loss:less than 5% of working pressure
Features of Qugong Brand Air Dryer for Air Compressor
1. Refrigeration compressor adopt High-temperature type enclosed refrigeration compressors,so that have steady running ,low noise ,reliable performance and energy saving.
2. heat exchanger and condenser used high quality and effecient screwed conduit, it has a high heat transfer coefficient that small in sizeand Compact structure
3.Refrigeration control elements adopt units of ALCO, which is advanced in the world,with a high performance
4. liquid-vapor separator can make gas-liquid separation effect completely and avoid water the second evaporation , so that confirm the drying effect of the dryer.
5. Rasonable structural designmake it easy to maintaining as well as elegant appearance.
6.Without foundation installation, easy to operation.
7. Has a high cost-effective .
| Normal Temperature-Air Dryer (Air cooled) | ||||||||
| Model No. | Air Process Load | Voltage | Refrigerating Power | Fan Motor Power | Air Connection Diameter | Air Volume | N.W | Diemension (L*W*H) |
| m³/min | V | HP | W | Nm³/h | kgs | mm | ||
| KSAD-0.5SF | 0.65 | 220 | 1/4 | 1*55 | RC1/2" | 965 | 45 | 580*350*525 |
| KSAD-1SF | 1.2 | 220 | 1/3 | 1*90 | RC1" | 1890 | 70 | 640*380*545 |
| KSAD-2SF | 2.5 | 220 | 3/4 | 1*55 | RC1" | 965 | 110 | 650*430*670 |
| KSAD-3SF | 3.6 | 220 | 1 | 1*150 | RC1" | 3110 | 130 | 850*450*670 |
| KSAD-4.5SF | 5 | 220 | 1.5 | 1*240 | RC1½" | 5180 | 150 | 1000*490*700 |
| KSAD-6SF | 6.8 | 220 | 2 | 2*150 | RC1½" | 6220 | 160 | 1050*550*740 |
| KSAD-8SF | 8.5 | 220 | 2.5 | 2*195 | RP2" | 8470 | 200 | 1200*530*916 |
| KSAD-10SF | 10.9 | 380 | 3 | 2*195 | RP2" | 8470 | 250 | 1320*530*916 |
| KSAD-12SF | 12.8 | 380 | 3 | 2*195 | RP2" | 8470 | 300 | 1100*620*1426 |
| KSAD-15SF | 16 | 380 | 3.5 | 2*195 | DN65 | 8470 | 320 | 1500*780*1666 |
| KSAD-20SF | 22 | 380 | 4.2 | 2*190 | DN65 | 8470 | 420 | 1540*840*1610 |
| KSAD-25SF | 26.8 | 380 | 5.3 | 2*250 | DN80 | 10560 | 550 | 1610*860*1870 |
| KSAD-30SF | 32 | 380 | 6.7 | 2*250 | DN80 | 10560 | 650 | 1610*920*1860 |
| KSAD-40SF | 43.5 | 380 | 8.3 | 3*250 | DN100 | 15640 | 750 | 260*960*1863 |
| KSAD-50SF | 53 | 380 | 10 | 3*250 | DN100 | 18540 | 830 | 2240*960*1980 |
| KSAD-60SF | 67 | 380 | 13.3 | 3*450 | DN125 | 18000 | 1020 | 2360*1060*1930 |
| KSAD-80SF | 90 | 380 | 20 | 4*550 | DN125 | 40000 | 1300 | 2440*1490*1980 |
Application

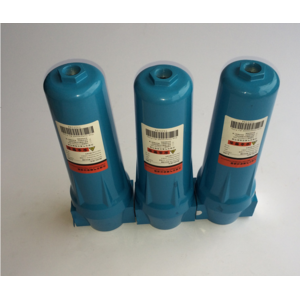

We can also provide the air tank,air filter etc.accessories.Welcome to inquiry more.
We are one of the world's largest rock drill and China's largest air compressor manufacturer kaishan is made up of 25 subsidiary companies and owns employees more than 4,300, there are more than 1,000 sets of advanced automatic molding production lines, machining center, heat treatment facilities top-rate testing devices and all kinds of machining process equipments imported from the
USA, UK, Japan and Germany.
