Product Description

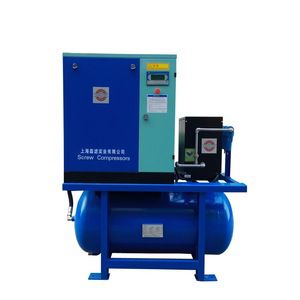

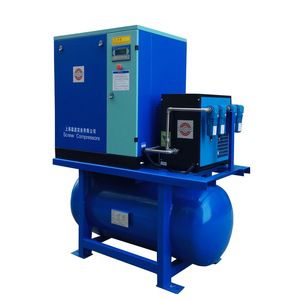

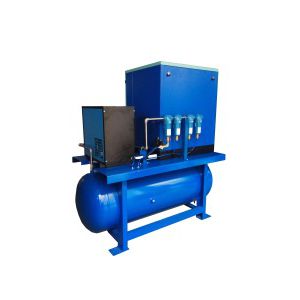

16 bar 11kw 15hp Energy Saving Combined Screw Air Compressor With Air Tank And Air Dryer
1.16bar medium pressure air compressor;
2.Stainless steel pleate heat exchanger refrigerated air dryer with PDP 3~5;
3.4 stages high efficiency air filters can keep oil contain≤0.001ppm;
4.Special laser cutting machine used air compressor
2.Stainless steel pleate heat exchanger refrigerated air dryer with PDP 3~5;
3.4 stages high efficiency air filters can keep oil contain≤0.001ppm;
4.Special laser cutting machine used air compressor
| 16bar 11KW combined screw air compressor | |
| Model | SF-11AFF/16bar |
| Air flow | 1.0m3/min |
| Working pressure | 16bar |
| Power | 11KW/15Hp |
| Starting method | Y-Δ |
| Noise | 75±5dB |
| Volume of air tank | 350L |
| Model of air dryer | SHAD-14HTF |
| Model of air filters | SFCTAAA-001 |
| Filter accuracy | 0.01um |
| Oil content | 0.01ppm |
| Voltage | 380V/3Ph/50Hz |
| Weight | 590kg |
| Dimension(L*W*H) | 1600*850*1740mm |
Detailed Images
Air end
Advanced Patend Rotor Profile
1.Up to date 5 6 Asymmetrical rotor profile
2.Low tip speed and higher volumetic efficiency
Heay-Duty Design
1.Max working pressure 40Mpa
2.Low-lip-speed design.

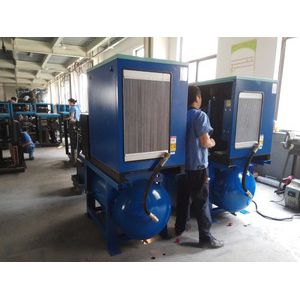

Inside of the air compressor
1.Laser cutting special air compressor；
2.The most stable 16bar head；
Refrigerated air dryer
1. Stainless steel plate heat exchanger and air connection pipe.
2. High effciency plate heat exchanger with counter-flow on both air-to-air and air-to-refrigerant sides for efficient heat transfer.As the outgoing air is reheated, it protects the outlet piping against pipe sweating.
3. Pressure dew point 3-5℃
4. SH seires dryer have passed latest CE certification with multiple overload protection devices congured.
5.Environmental refrigerant R134a,R410a,R407c.
2. High effciency plate heat exchanger with counter-flow on both air-to-air and air-to-refrigerant sides for efficient heat transfer.As the outgoing air is reheated, it protects the outlet piping against pipe sweating.
3. Pressure dew point 3-5℃
4. SH seires dryer have passed latest CE certification with multiple overload protection devices congured.
5.Environmental refrigerant R134a,R410a,R407c.

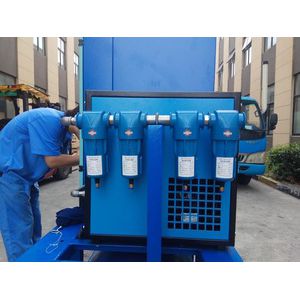

Air filters
1.Filter house with anti-corrosion treatment.
2.Small pressure difference,energy saving10% than other conventional filters.
3.Folded filter element,large filtering area,more energy saving.
Certifications
Packing & Delivery
Wooden case package
Dimension（L*W*H）:150*80*178cm
