Model SGZ high quality solid liquid vertical peeler centrifuge
Automatic scraper bottom discharge centrifugal machine is a automatic centrifuge separator with three foot, scraper bottom discharge, intermittent operation, process control. It can be setup process according to your requirement, It will finish feeding, separating, washing, dehydration, discharging process by hydraulic and electrical control system. It can be applied in far, close operation. This machine is adopted narrow scraper to low discharge. So this machine is not only used in separating suspension with 0.05-0.15mm solid grain, but also be used in separating the material which is strong thermal sensitivity, not allowed to be broken, operator access is difficult.
Working principle:

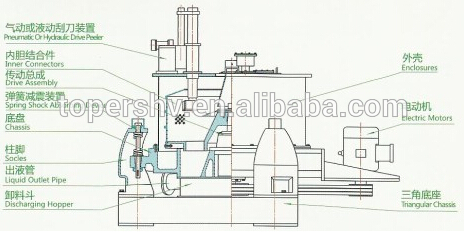

The material to be separated by the feeding tube into the high-speed rotation of the centrifuge drum, the force field in the centrifuge under the influence of material through the filter cloth, liquid via a liquid pipe discharges, solid-phase is trapped in the drum, the drum inside the cake to be provided for added material to reach the machine, stop charging on the cake for washing, while washing liquid filter out, to separate request, the centrifuge low speed operation, operation of hand scraper device, through the first radial scraper, and then axial scraper, the drum of the filter cake scraped, scraper device reset, to complete a cycle of work.
Characteristics:
1. PLC controller with loaded program can realize nobody-guard operation. Whole processes including feeding material, first filtration, cleaning, extract filtration and discharging can be guarded.
2. Frequency timing, stable start-up, adjustable separation coefficient.
3. Dynamic braking, non-contact type, no-friction dust pollution.
4. Rotating speed inspection, over-vibration protection, overheating and overload protection for motor, scraper and rotating drum linkage lock.
Application of Automatic scraper bottom discharge centrifugal machine:
Chemical Industry: gypsum, oxalic acid.
Food Industry: MSG, food additives.
Pharmaceuticals: vitamins, antibiotics.
Mining and Metallurgy: Copper, zinc, aluminum, mineral, metal refining.
Environmental protection: water purification sludge, sewage sludge
All parts of stainless steel 304 Automatic scraper bottom discharge centrifugal machine:

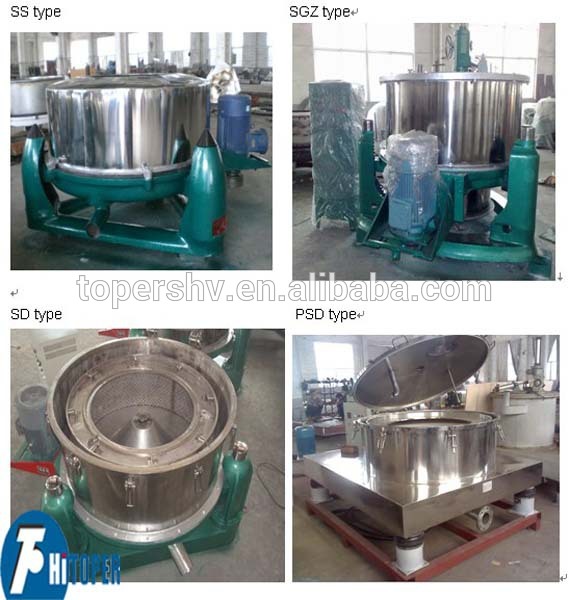

Other centrifuges in our factory:
Technical parameters of Automatic scraper bottom discharge centrifugal machine:
Model | Rotation drum | Separation factor (ω2r/g) | Motor Power (Kw) | Total weight (Kg) | |||
Diameter (mm) | Working volume (L) | Loading limit (Kg) | Rotation speed (r/min) | ||||
SGZ800 | 800 | 100 | 140 | 1200 | 644 | 7.5 | 3000 |
SGZ1000 | 1000 | 150 | 200 | 1080 | 560 | 11 | 4000 |
SGZ1250 | 1250 | 280 | 380 | 900 | 566 | 18.5 | 4700 |
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
Notice For Order
For different requirments for separation, we have designed for customers to choose the best suitable type, when the customer make the order, customer can confirm the following points.
1. Materials: The contacted parts material with the separated solution can have kinds of stainless steel, titanium steel, carbon steel , line with rubber, line with plastic and others
Driving Method: common induction motor, flame proof induction motor, electromagnetic governor motor or frequency flame proof motor
