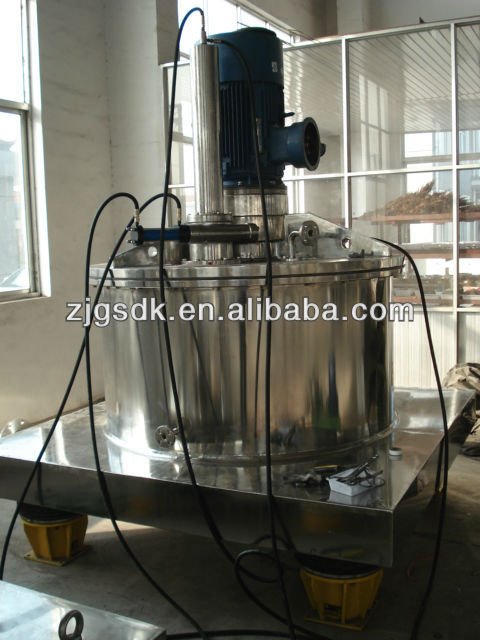

PAUT series Peeler Centrifuges used industrial centrifuge machine made in china
Feature of centrifuges for pharmaceutical industries
1..The machine case and base are built with steel plate joint structure, simple and compact.
2.The bottom bearing applies both labyrinth seal and frame seal, which have good performance of sealing, The main shaft is anti-corrosive.
3.Pneumatic auxiliary scraper and air recoil device could completely clean the solid materials remained in the basket.
4.Online cleaning system could clean the machine online.
5.Fully automatic operation control ensures safe and dependable performance.
6. Optional nitrogen protection system is available for explosion-proof application.
7. Options of base plate and three point suspension are available.
8.Our motor-driven centrifuge is fitted with liquid damping isolator and requires no foundation for installation, resulting in minimized workload of operation and maintenance.
Standard Manufacturing Form
1.Flip open cover, feeding pipe, washing pipe, observation window, exhaust hole lightening hole. The sealing structure, basket and outer shell, flip open cover are all made of stainless steel(SUS304), machine chassis parts are made of cast material, the surface is cove red with stainless steel.The basket, insideand outside surfaces of the outer shell, the exposed parts of the machine have all been polished.
2.PLC control is applied
3.Transmission and brake: normal prevention motor(or explosion prevention motor)+ inverter
+power consumption brake.
4.Pneumatic system
5.PAUT applies flat structure equipped with liquid damping shock absorber.
Device for choice
1.On line washing system.
2.Nitrogen protection system
3.Frequency emission material procedure control
4.Touch screen control
5.Hydraulic operation system
6.Pneumatic auxiliary scraper
7.Corresponding material will be applied according to users’ erosion proof requirements for material
to be separated(SUS304, 316, 316L, 321) or titanium alloy(TA), or the surfaces to be coated with PE,
halar, and hastelloy chorimet etc.
8.Over-vibration protection system.
9.On-site explosion prevention button.
10.Transmission and brake: explosion prevention motor +inverter +power consumption brake.
Application
Our industrial filtration equipment has been proved to be ideal for slurries separation featuring large viscosity, strong hydrophilicity and hard-to-separate, as well as pariticles containing medium-sized or fibroid material. It also finds applications in separation of some crystalloid solid-state materials (granular, fibroid, flaky, etc) in loosen state or with slight viscosity
Thanks to exceptional adaptability to materials, our scraper centrifuge is the tool of choice to separate slurries containing solid phase ≥0.05mm and with great thermal sensitivity. Based on hydraulic narrow scraper and low-speed enclosed discharging, this centrifuge features outstanding cake discharge capability and minimized damage on crystals, which are enjoyed by industries of chemical, pharmacy, food, environment protection and light industry, etc
Technical Specification

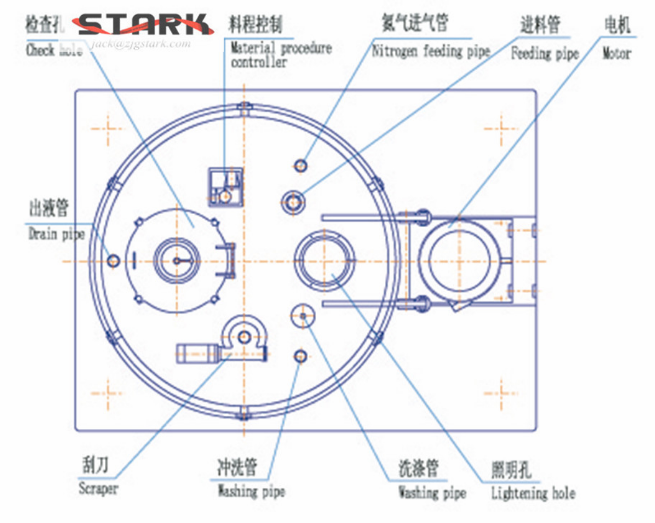

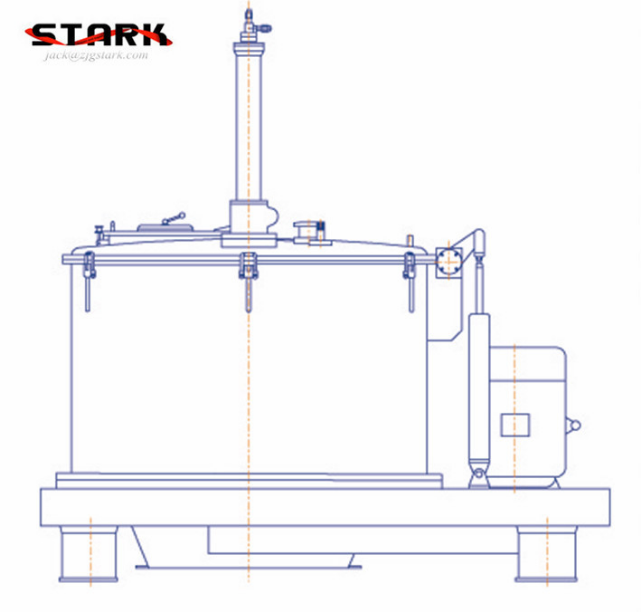

Structure chart
filter drum

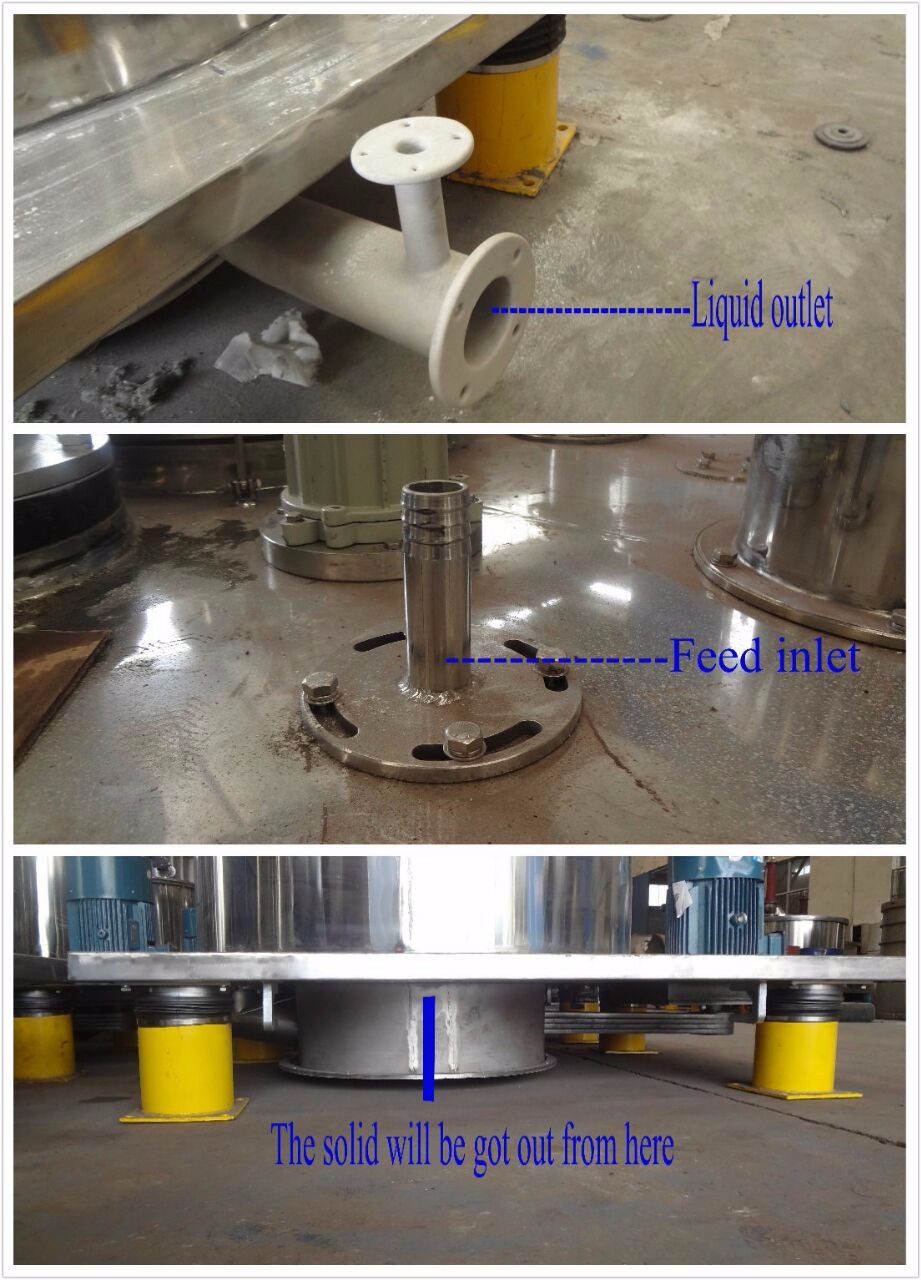

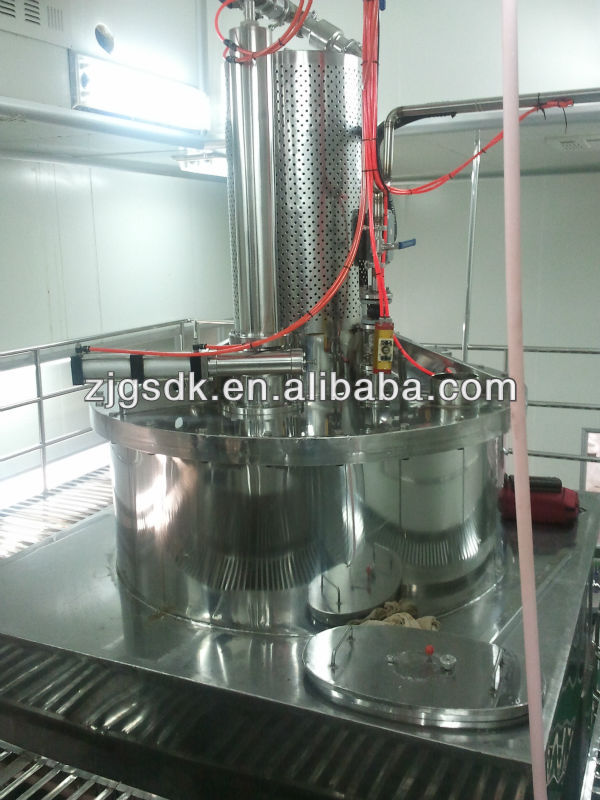

Details

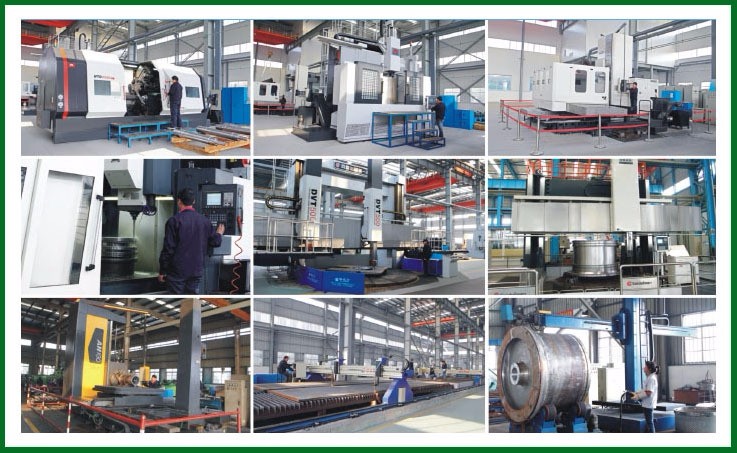

Workshop

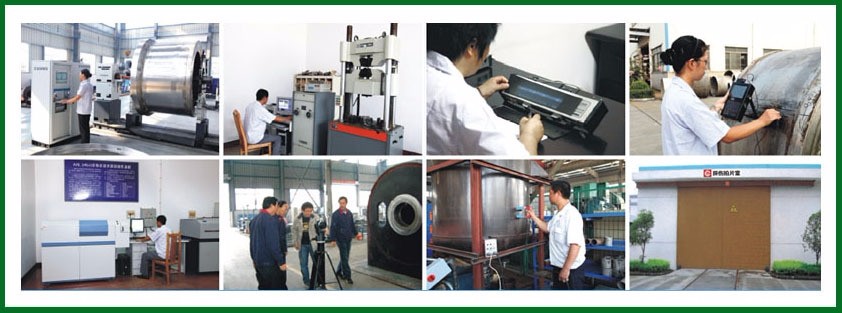

Testing equipment
Packing&shipping
