Starch hydrocyclone/stainless steel hydrocyclone/ hydrocyclone separator/Hydroyclone filter/ Horizontal washing cyclone in starch industry
Seller: Zhengzhou Jinghua Industry Co.,Ltd.
Tel:0086-371-68853500 Fax:0086-371-68853570
Add: No.238,Tongbai South Road,Zhengzhou City, Henan Province,China.

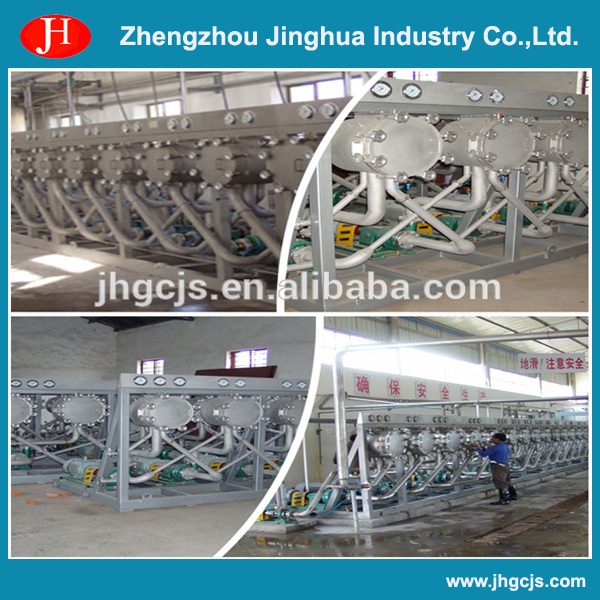

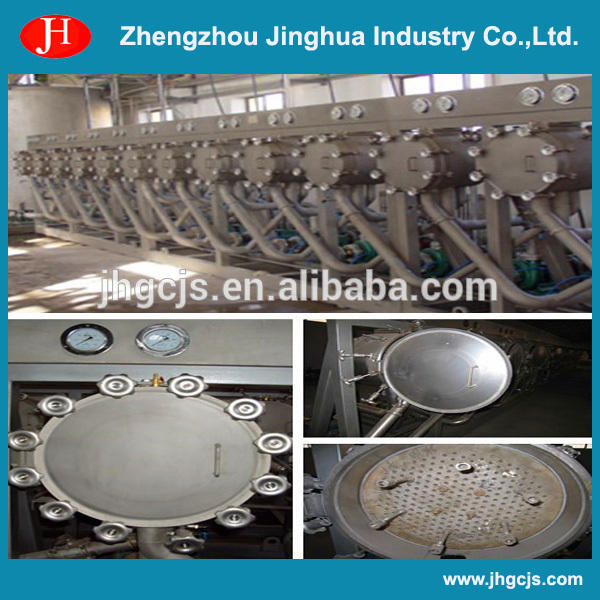

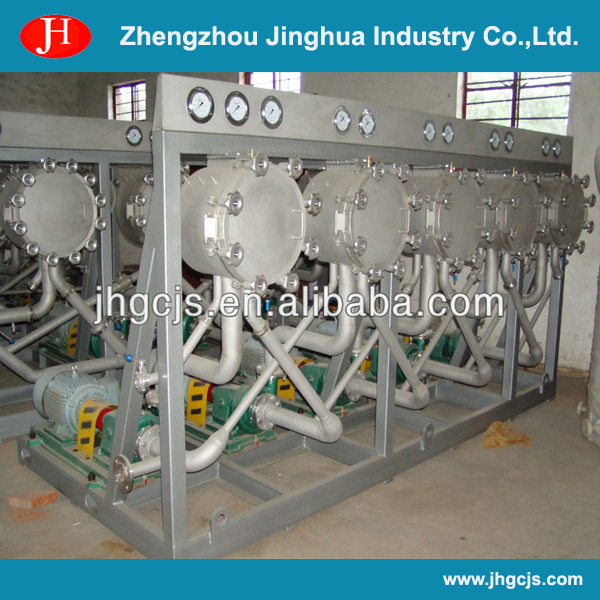

Introduction of hydrocyclone
ZZJH Starch hydrocyclone is used to to each kind of starch and modified starch starch emulsion degreasing, fine slag separation, protein separation, washing and enrichment, etc..Continuous concentration and separation of food industry suspension, clarification, etc.
With compact structure, high precision, as well as good sealing effect, is widely used in potatoes, cassava, sweet potatoes, corn, wheat, valley (m) starch, and other industries.
Main Features of hydrocyclone
1. Fully stainless steel to be sure there is no corrosion.
2. Advanced suface treatment craft. Oil and dirty resisiting.
3. Widely used for starch extraction in starch processing plants.
4. Multifuction of concentration, recovery, washing and separation for hydrocyclone group.
5. Cyclone pipes are made from material of reinforced nylon with high strengh, detter abrasive resistance and excellent separation result.
6. Hydrclone designing is adopted to get better starch separation according to the features of different material.
7. Pipeline of hydrocyclone group passes computer optimization design. Compact and elegant.
8. Special sealing design, friendly operation.

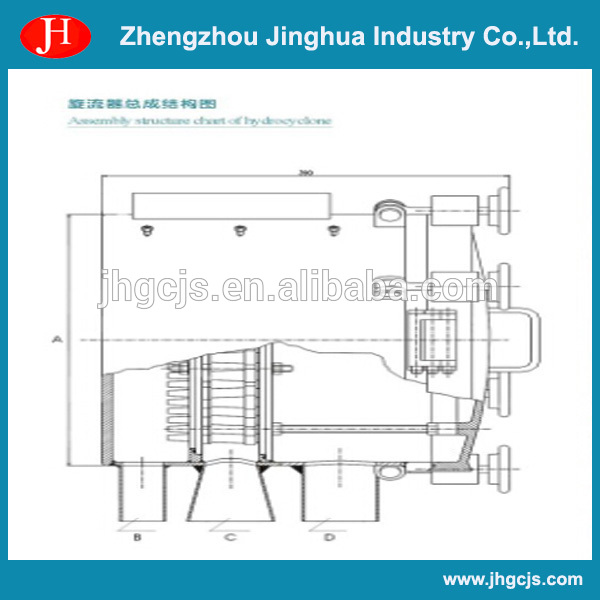

Main Technical Parameters of hydrocyclone
Size | A | B | C | D | Group capacity:3-8t/h Power:7.5-30kw/stage Weight: 0.3t/stage |
Model | |||||
XL-362 | Φ362 | DN32 | DN65 | DN50 | |
XL-438 | Φ438 | DN40 | DN80 | DN50 | |
XL-516 | Φ516 | DN50 | DN80 | DN65 |
If you are interested in our machines, please feel free to contact us!
