The cassava starch hydrocyclone machine is a widely used separation and classification equipment. It mainly adopts the centrifugal sedimentation principle.
The introduction of the cassava starch hydrocyclone machine
By fully absorb and introduce the advanced solid-liquid separation technology at home and abroad, Doing Company research and manufacture the high efficiency cassava starch hydrocyclone machine. This hydrocyclone station can complete the material separation, washing, concentration, recovering and refining operation.
It is mainly used in the process of washing, concentrating, refining and clarifying in the automatic cassava starch production line so as to separate some proteins, fine fibers and soluble impurities and improve the quality of starch.

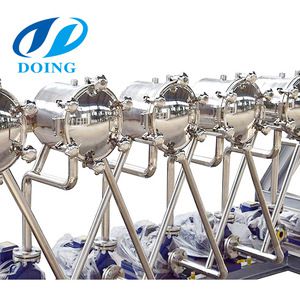

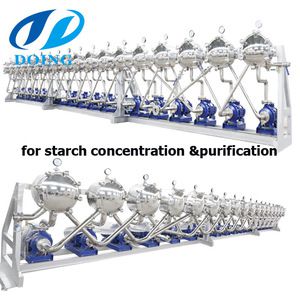

Cassava starch hydrocyclone station
The working principle of DOING starch hydrocyclone:
The basic principle of a hydrocyclone is to separate mixtures with a certain density difference under the action of centrifugal force.
In the process of cassava processing, the starch slurry enters the hydrocyclone body through the inlet, when pressure reaches a certain degree, the starch slurry enters the inside of the swirl tube. In the swirl tube, the material rotates at a very high speed, and generate centrifugal force.
Due to the difference of relative density of each compositions, the starch which is a component with larger relative density obtain larger centrifugal force, was moving along the spiral into the cone wall and falling out from the bottom outlet; While low-density components like small fiber, protein and cell has smaller centrifugal force, move in the reverse direction and form an upward-moving internal vortex at the center of the axis, which is then discharged by the overflow port, thus achieving the purpose of the separation of components.

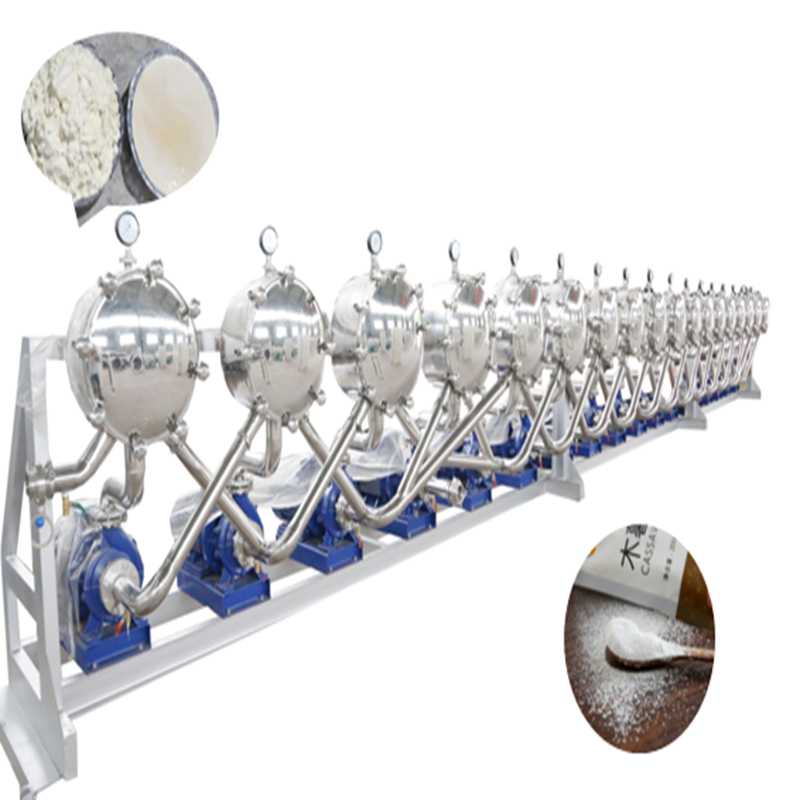

Cassava starch hydrocyclone machine
The technical parameters
| Model | DYX-362 | DYX-438 | DYX-516 |
| Capacity(t/h) | 3-4 | 5-6 | 7-8 |
| Material | Stainless steel | Stainless steel | Stainless steel |
| Plate diameter(mm) | 362 | 438 | 516 |
| Power(KW/stage) | 7.5-11 | 11-22 | 15-37 |
| Weight(kg) | 360 | 520 | 630 |
The features and advantages
1.The hydrocyclone pipe is made from material of strengthened nylon which is sturdy and durable.
2.DOING cassava starch hydrocyclone machine adopts the European general technology which is more advanced and high quality.
3.Computer designed internal structure, compact and elegant.
4.Running stable and easy to operate.

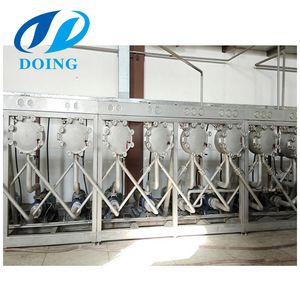

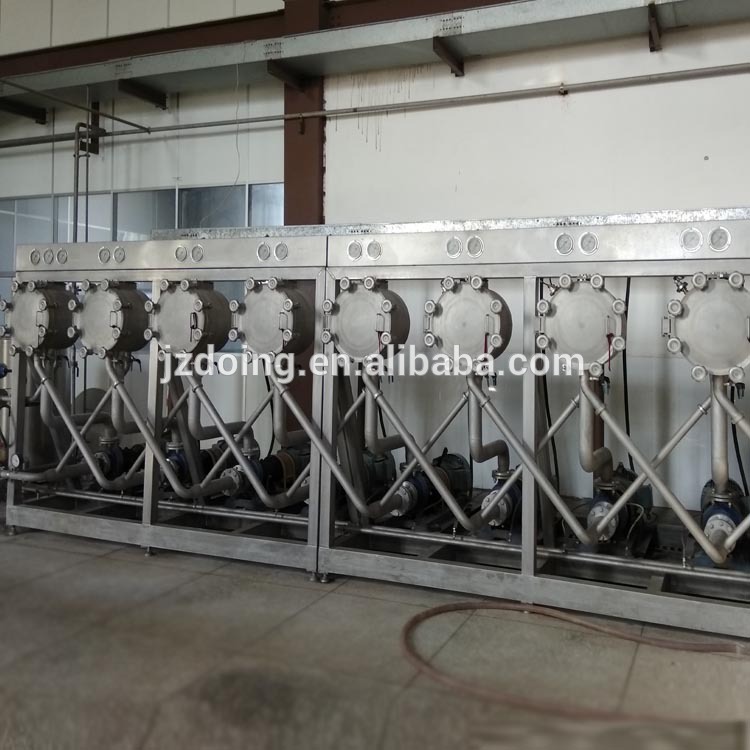

DOING hydrocyclone station
Henan Doing Mechanical Equipment co., Ltd is a company specialize in the manufacture, research & develop and installation the complete set of cassava products deeply processing equipment. With the ability of independently research and develop new products, we constantly update and introduce new technologies and products to keep our company at an advanced level. And our company had got 11 national patents, and taken the accreditation of ISO9001 (international quality management system certification).
Our company adheres to the tenet of "quality guarantee, customer first" to provide perfect technical consultation and high quality after-sales service. With advanced processing equipment and scientific management system, our products are popular in the whole world, and our cassava processing machine have sold to different counties, such as, Cambodia, India, Indonesia, North Korea, South Africa, Uzbekistan, Syria, Russia, Bulgaria, Algeria, Bangladesh, Pakistan, Vietnam, Thailand, Mongolia, etc.
Pre-sale Service
Inquiry and consulting support.
Recommend the appropriate equipment model for the customer.
Design and manufacture machines according to customers' needs.
After-sale Service
We offer training service for our customer about how to install and use the machine correctly.
Our engineers are available for overseas machinery service.
