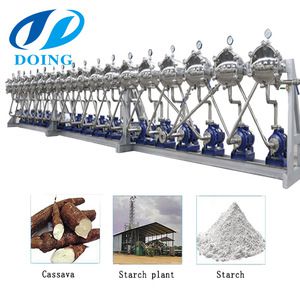

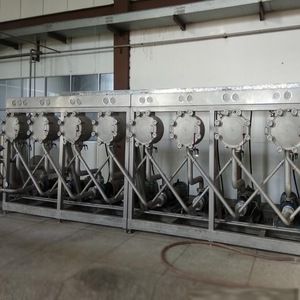

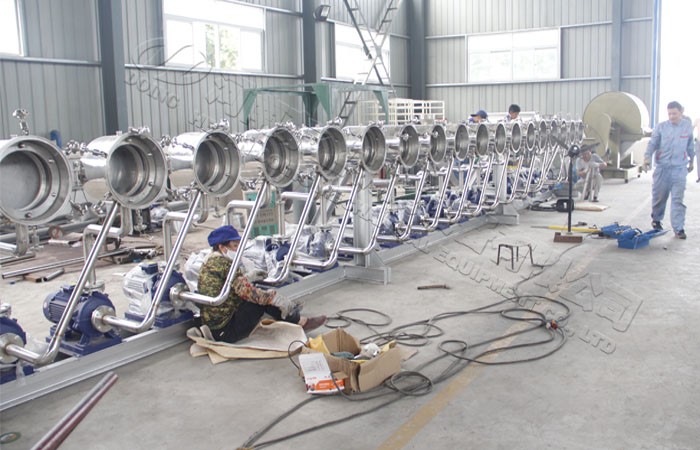

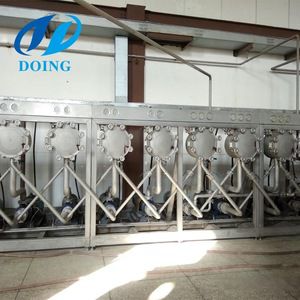

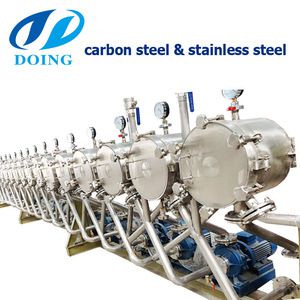

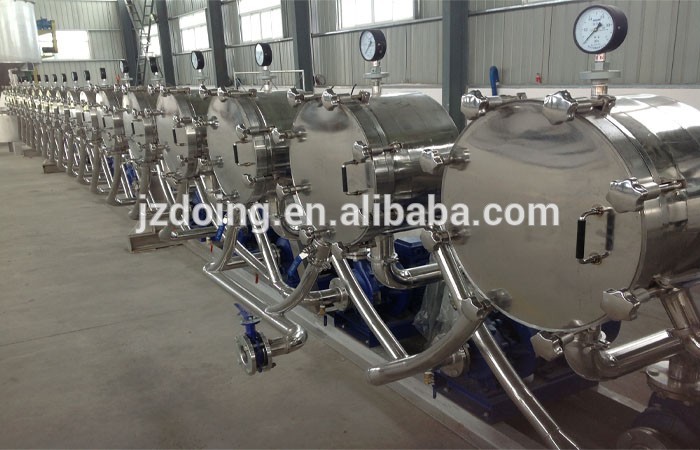

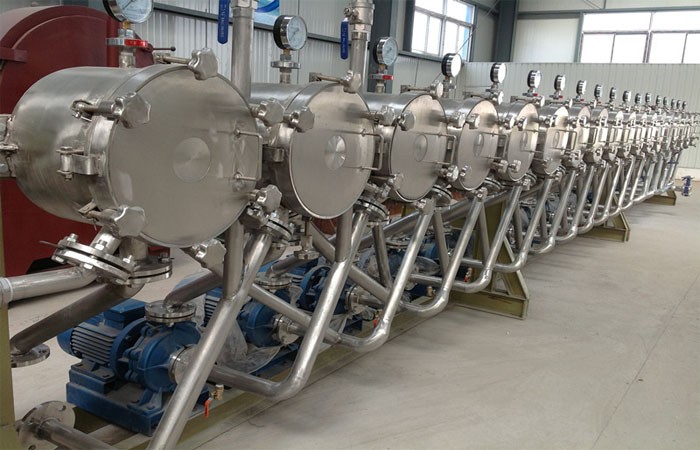

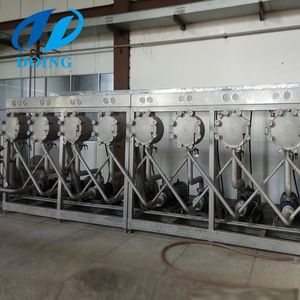

Multi-grade starch slurry refined hydrocyclone station

This starch hydrocyclone station mainly function is to remove the soluble and insoluble protein, fine fibers in starch slurry, it is the key equipment for starch concentration, washing and refining.

Technical Feature

  • Henan, China (Mainland)
  • DOING
  • DY045
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
  • Hydrocyclone station
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$11~20

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
DOING
Model Number
DY045
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Name
Hydrocyclone station
Hydrocyclone station Application
cassava starch concentration and purification
Hydrocyclone station Capacity
Diffrent Capacity
Hydrocyclone station Material
Stainless Steel
Hydrocyclone station Function
Starch concentration and purification
Raw material
Fresh Cassava
Hydrocyclone station Voltage
380v/50hz
Hydrocyclone station Power
2.2kw
Hydrocyclone station Color
Silver
Hydrocyclone station Feature
Multifuction

DETAIL DESCRIPTION

Product Description

Multi-grade starch slurry refined hydrocyclone station introduction and application:

This starch hydrocyclone station mainly function is to remove the soluble and insoluble protein, fine fibers in starch slurry, it is the key equipment for starch concentration, washing and refining. Henan Doing Co. starch hydrocyclone station has multifunction of concentration, recovery, washing and separation of residue. Widely used for maize starch, cassava starch, potato starch extraction, keep the quality of the final starch. It is the Henan Doing Co. combines international advanced technology to produced quality products.

Main feactures of Henan Doing Co. multi-grade starch hydrocyclone station:

1. Sealing design, fully stainless steel to ensure no corrosion.
2. Different cyclone pipe design according to raw material to get the better starch separation rate.
3. Multi-grade starch hydrocyclone station pipe made by strengthened nylon. Sound rigidity and durability.
4. Pipeline of hydrocyclone group passes computer optimization design. Compact and elegant.
5. Starch hydrocyclone station adopts advanced surface treatment, oil & resistance.

Our multi-grade starch hydrocyclone station working principle:

The starch slurry enters the third of the hydrocyclone for concentration, and the fresh water enters the starch hydrocyclone from the other end which washes starch. The overflow enters two grade recovery station to recycle starch, the bottom flow is washed through 13 grade washing cyclone to ensure that the starch slurry does not contain impurities and final starch will be in accordance with national standard.

Factory & Service

1.We can appoint specialized after sale service staff to your country for installation and debugging the multi-grade starch hydrocyclone station.
2.Train operating personnel.
3.All the machines will be checked OK before delivery.
4.Warranty for 12 months.
5.We provide technical support in overseas.

Packing & Delivery

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Qingdao, Shanghai, Guangzhou, Ningbo
