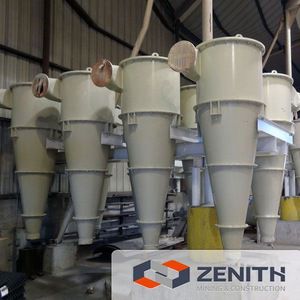

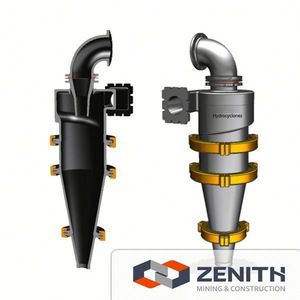

hydro cyclone price introduction

This is a continuously operating classifying device that utilizes centrifugal force to accelerate the settling rate of particles. hydro cyclone price is one of the most important deviced in the minerals industry, its main use in mineral processing being as a classifier,ehich has proved extremely efficient at fine separation size. it is wideely used in closes-circuit grinding operaions but has found many other uses,such as desliming,degtritting, and thickening.

The characteristics of hydro cyclone price :

a. simple structure, flexible and light.
b. Low-cost, easy disassembly and maintenance, occupying small space, little foundation fee.
. Large capacity in unit volume
d. The overflow size can be 10μm.
e. Higher efficiency, etc.

hydro cyclone price  working principle:

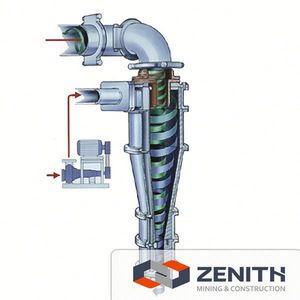

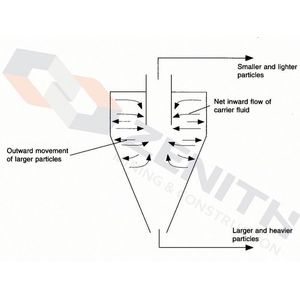

The feed is introduced under pressure through the trangential entry which imparts a swirling motion to the pulp. This generates a vortex in the cyclone, with a low pressure zone along the vertical axis. An air core develops along the axis ,normally connected to the atmosphere through the apex opening, but in part created by dissolved air coming out of solution in the zone of low pressure.

hydro cyclone price  have repaled mechanical classifiers in many modern grinding plants,as they are more efficent, especially in the finer size ranges,they also need less floor space and consume less power. Due to the relatively short residence time of particles within the cyclone,the mill circuit can rapidly be brought into balance if any changes are made abd oxidation of particels within the circuit is reduced.

hydro cyclone price  application:

Through extensive testing, Zenith hydraulic cyclone performance has been proven in a wide variety of applications including:
1.Closed circuit grinding
2.Mineral Classification

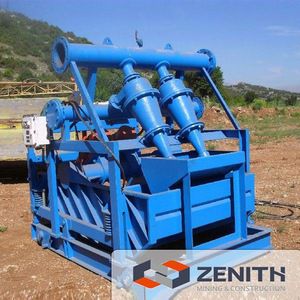

3.Concentrate or Tailings Thickening,Dewatering
4.Tailings damming and filling
5.Usually used in the following similiar process of gold,silver,copper, lead zinc, fluorite and so on.

hydro cyclone price  technical data:

odel	inner diameter(mm)	Feeder diameter(mm)	overflow pipe diameter(mm)	Grit size(mm)	cone angle(°)	Max feeding size (mm)	feeding pressure(Mpa)	capacity(m/h)	Partition size(μm)	overall dimention	Weight(kg)
(L)	(W)	(H)
FX-660	660	187,167	180,200,220,240	80,110,150	20	16	0.03-0.4	250-360	74-220	1215	850	2720	950
FX-500	500	130120	130,140,160,180,220	35,45,50,6570,80,90,100	25	10	0.03-0.4	140-220	74-200	951	718	1825	416
20	74-200	850	623	1825	490
10	74-150	951	718	2280	556
FX-350	350	80	80,90,105,115,120	30,35,40,45,50,60,70	25	6	0.03-0.4	60-105	50-150	530	413	1411	135
20	50-150	530	413	1411	155
15	50-120	530	413	1674	230
FX-300	300	6475	65,80,100,120	20,25,30,35,40	20	5	0.03-0.4	45-90	50-150	530	410	1305	88
15	40-100	563	410	1490	169
FX-250	250	557480	60,75,80,100,120	16,18,20,25,30,35,40	20	3	0.05-0.4	40-65	40-100	563	534	1178	63
15	40-100	548	390	1057	120
10	30-100	548	415	1380	123
FX-200	200	48	40,45,55,65	16,20,24,28,32	20	2	0.05-0.4	25-40	40-100	548	307	1025	36
15	30-100	320	307	1114	64
FX-150	150	36	30,35,40,45	8,10,12,14,16,18,20,22	20	1.5	0.05-0.4	11-20.0	30-74	320	270	682	22
15	30-74	252	349	899	20
8	20-74	290	295	1267	60
FX-125	125	26	25,30,35,40	8,10,12,14,16,18	17	1	0.05-0.4	8-15.0	20-100	280	185	617	10
8	20-74	210	240	973	12
FX-100	10	23	20,25,30,40	8,10,12,14,16,18	20	1	0.05-0.4	5-12.0	20-100	250	210	525	8
15	10-100	257	210	575	5
8	10-74	257	210	829	6
FX-75	75	13	15,17,20	6,7,8,10,12	15	0.6	0.1-0.5	2-5.0	20-74	240	230	459	4
7	5-40	240	230	700	7
FX-50	50	9	11,13,15,18	3,6,8,10,12	15	0.3	0.1-0.5	1.5-3	10-74	160	152	325	2
6	5-30.0	160	152	550	2.5
FX-25	25	5	5,6,7,8	2,3,4,5	5	0.2	0.1-0.5	0.3-1	3-10.0	160	152	587	0.8
3	2-10.0	120	110	576	1.4
FX-10	10	2	2,3,4	1,2	4	0.1	0.1-0.1	0.05-1	1-5.0	60	34	140	0.5
