Hydrocyclone for ore classify using

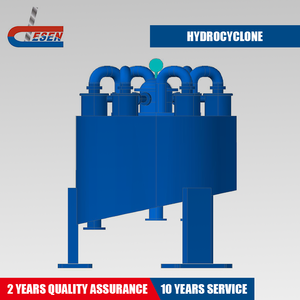

Hydrocyclone
Description of Hydrocyclone
¤Hydrocyclone is kind of equipment for classifying the ore pulp by centrifugal force.
¤It has no motion and dynamic parts, but it requires matching with corresponding slurry pump.
¤It is mainly used in ore dressing industry for classifying, sorting, thickening and desliming.
Hydrocyclone has the features:

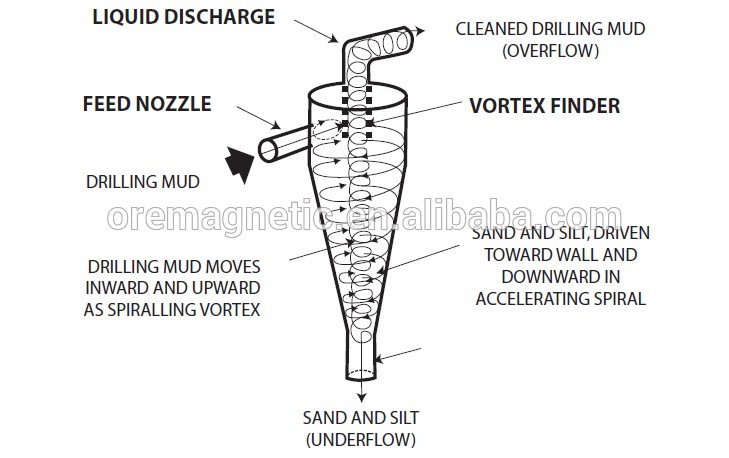

Structure of Hydrocyclone

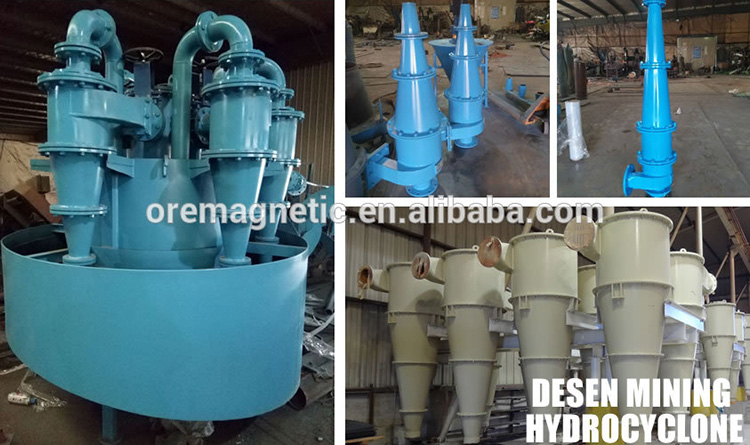

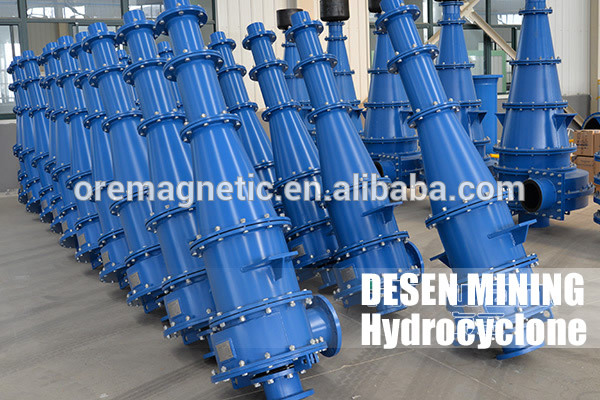

Details of Hydrocyclone
| Model | Pipe size(mm) | Feeding size(mm) | Feeding pressure(Mpa) | Capapcity(t/h) | Dimension(mm) | Weight(kg) |
| FX100 | 20-40 | 1 | 0.06-0.35 | 5-12 | 260*210*525 | 8 |
| FX125 | 25-40 | 1 | 0.06-0.35 | 8-15 | 210*185*620 | 10 |
| FX150 | 30-45 | 1.5 | 0.06-0.35 | 11-20 | 280*295*690 | 32 |
| FX200 | 40-65 | 2 | 0.06-0.35 | 25-40 | 435*360*1050 | 54 |
| FX250 | 60-100 | 3 | 0.06-0.35 | 40-60 | 540*480*1180 | 79 |
| FX300 | 65-115 | 5 | 0.04-0.3 | 45-85 | 665*585*1310 | 108 |

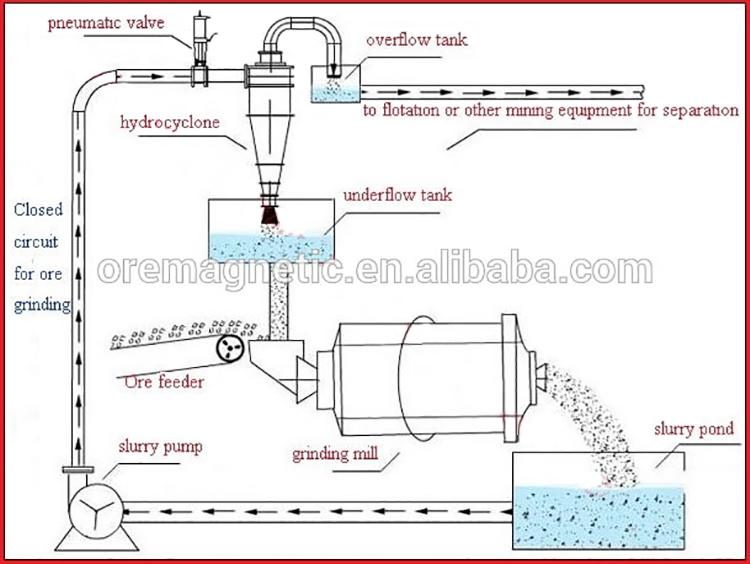

Application of Hydrocyclone

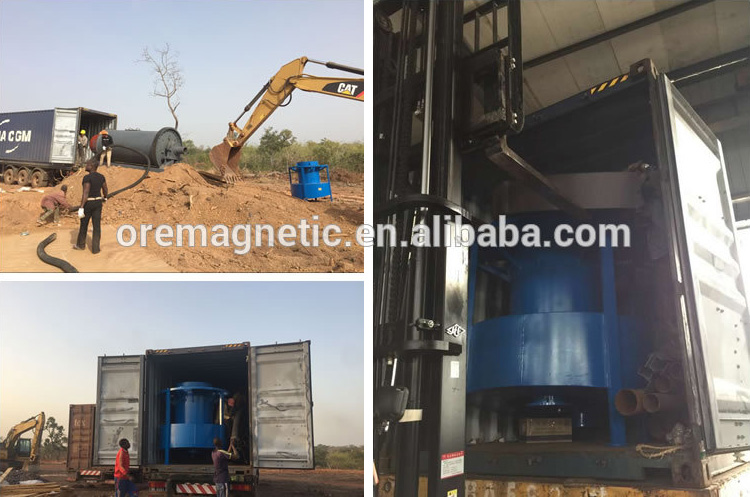

Packaging of Hydrocyclone
Payment of Hydrocyclone
| Payment Terms |
| • We usually accept T/T, L/C |
| • T/T: 30% of total amount as deposit, 70% balance before delivery. |
| Way of Packing |
| • FCL & LCL export standard container 20/40 feet. |
| • FCL: Sea-worthy package. Machines are fixed in container; spare parts are packed in wooden boxes. |
| • LCL: Machines are packed in steel frame with plywood boxes. Customized package is available. |
| Shipping |
| • By sea shipment |
| The lab equipment could be delivered by the courier express, such as UPS, DHL etc. |
ABOUT DESEN MINING:
We are a professional manufacturer of various kinds of mining equipments in China for over 20 years, especially
have rich experience at mining separating, main products include:
small scale mobile gold washing trommel screen
PLS Click above link
FAQ
Q: About your ore, we need to know the following information:
A: 1. What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers, I can provide you the
best quotation immediately.
Remarks: The price will depend on different models. Reply message you will get 5% discount price.
Hydrocyclone
Q: What about Warranty of the products?
A: Desen Mining grants our customers a twelve-month-period warranty from the date of delivery for machines
exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare
parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Hydrocyclone
Q: The reason you choose Desen Mining:
A: 1. Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world.
Contact us for more details about price, packing, shipping and discount.
