Description:

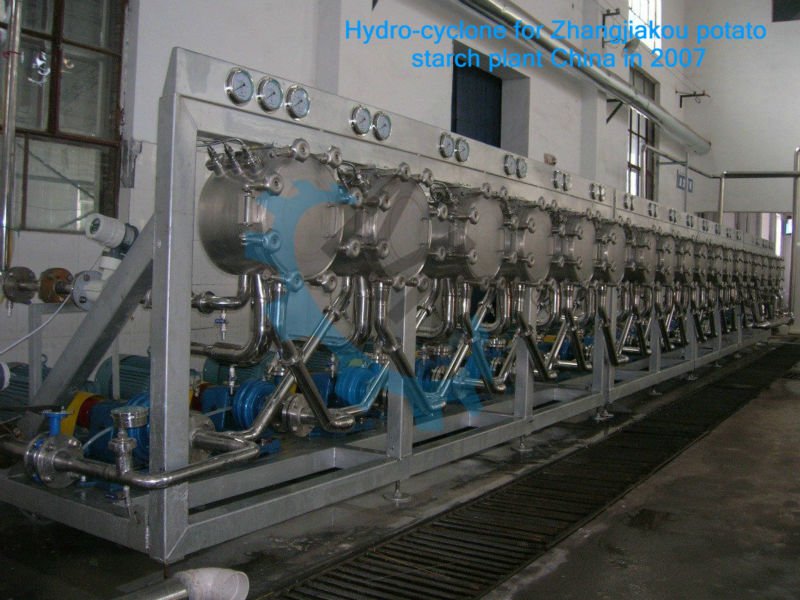

The main function of multi-stage hydro cyclone station is to remove the soluble and insoluble protein, fine fibers in starch slurry, it is the key equipment for starch concentration, washing and refining.

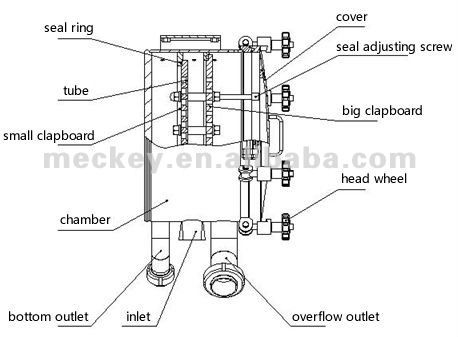

For each cyclone unit, it is comprised by starch pump and cyclone assembly. Series this kind of units combine into multi-cyclone stations, together to complete the refining work like concentrating, recycling and washing etc.. The structure of cyclone assembly is shown as following figure ( Figure 1)

Tens and hundreds cyclone tubes in the multi-stage cyclone stations are the main part to realize the stations function. The working principle is: when the slurry enters the cyclone from tangential direction with certain pressure, the material will form spiral flow. Eventually, the comparative heavy material go down alone the inner wall, on the contrary, the lighter material goes up from the center as the above diagram 2 showing.

Characteristics of the equipment

ü  The equipment is made of stainless steel to prevent starch pollution;

ü  The equipment surface is treated in a special process, beautiful and oil & dirt resistance;

ü  The swirl tubes are made of special nylon, high-energy and high efficiency.

ü   The multistage hydro cyclone station combines concentration, recovery washing and fine slag separation functions in one

ü  The device features simple and reasonable design, beautiful appearance and stable quality, easily maintenance.
