PRODUCT INTRODUCTION

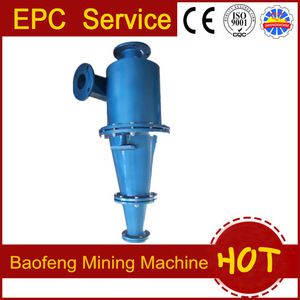

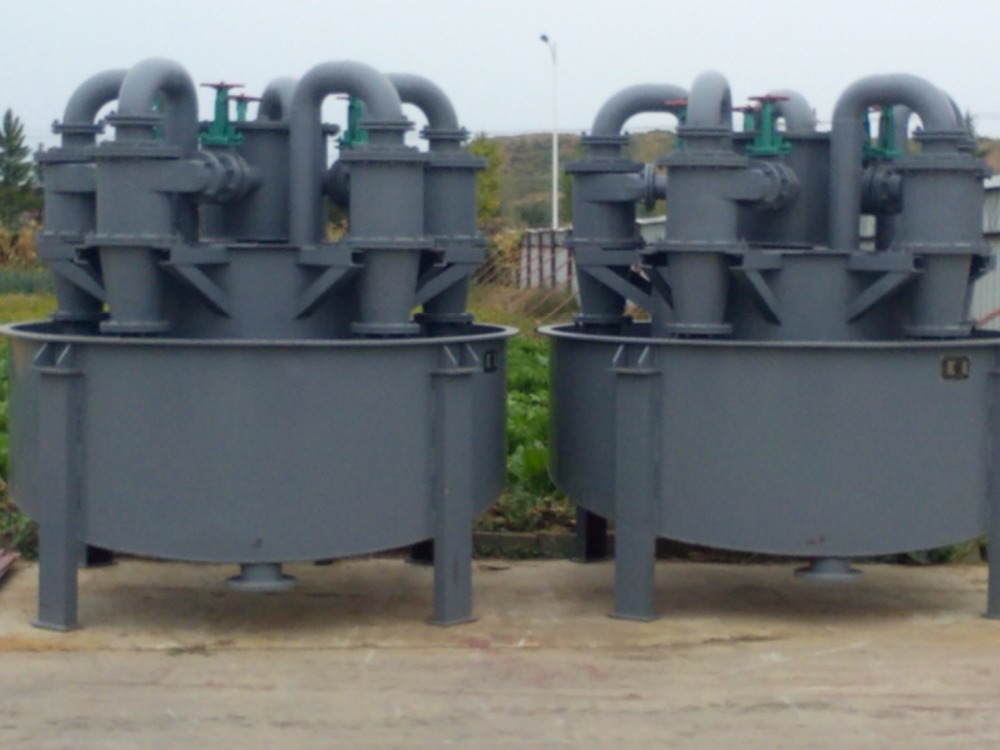

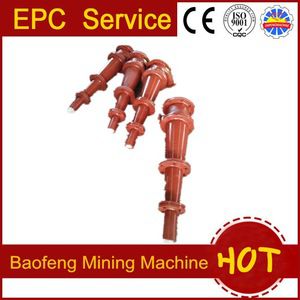

Cyclone is mainly used in the mineral processing for classification, sorting, concentration and desliming, etc. It is non-power equipment, which is pumped the materials to the cyclone, due to a certain pressure to separate materials in different proportions.
FEATURES AND SPECIFICATION
The characteristics of hydrocyclone: a. simple structure, flexible and light. b. Low-cost, easy disassembly and maintenance, occupying small space, little foundation fee. c. Large capacity in unit volume d. The overflow size can be 10μm. e. Higher efficiency, etc.
1, Feeding particle max. size3mm;
2, Feeding pressure: 0.03-0.25MPa;
3, Separation particle size :40-100μm;
4,Capacity (flow rate) 60m ³ / h;
5,Pump requirement: choose Slurry pump or slime pump, flow rate > 30% of the cyclone flow can be equipped with valves control ;
6,Installing pressure gauge in the cyclone feed Department, , pressure can not be less than 0.05MPa, can not be higher than 0.3 MPa;
EPC SERVICE

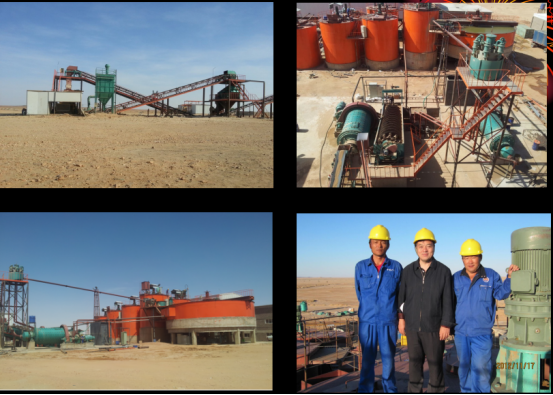

Depends on advanced processing equipment and profound technical capacity,our company can provide EPC service for mines with a scale below 10,000 t/d in gold mine,silver mine,lead and zinc mine,iron mine,manganese mine,chrome mine,fluorite mine,graphite mine,silica sand mine and sodium potassium feldspar with service of mineral processing experiments ,engineering design,equipment manufacture,installation and commissioning,personal training,etc.
COMPANY PROFILE

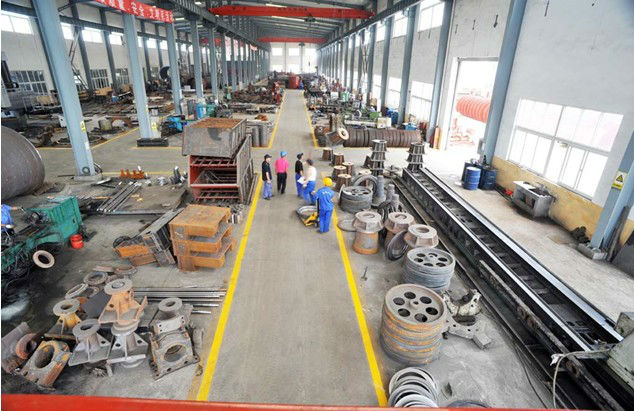

Yantai Baofeng mining machinery Co., Ltd is an high-tech joint stock enterprise jointly founded by technicians from domestic famous grade A designing institutes with a floor space of 50,000 square meters.Now our company has more than 500 staffs and has multiple subsidiaries such as reaching institute of ore dressing and smelting,design institute of metallurgical mine,machinery factory,automatic research institute,installation company and so on.It has a history of over 30 years in mine design and development and manufacturing of mine equipment.
