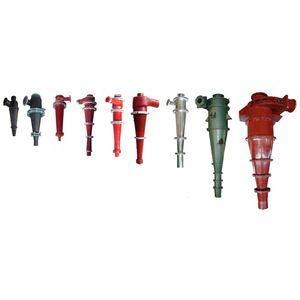

Mine Machinery Hydrocyclone Desander

Hydrocyclone—Structure

A cyclone with involute feeding, hollow cylinder, inverse cone, feeding pipe, overflow pipe, flow-down opening, etc.

Hydrocyclone—Product Improvement

Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency

Hydrocyclone—Advantages

the way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes smooth movement of liquid inside cyclone, therefore gives a sharp classification.

Hydrocyclone—Application

Hydrocyclone is mainly used for grading, separation, concentration and desliming in mineral processing industry..

Hydraulic cyclone is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries. It is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size.

Hydrocyclone—Work Principle

The working principle of hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different.  So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.

Working modes of hydrocyclone includes classification, condensation, dehydration, desliming, sand removing sand, washing, ultrafine classification etc.

Hydrocyclone — Technical Parameters
