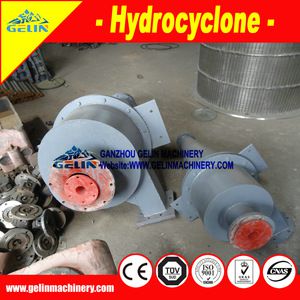

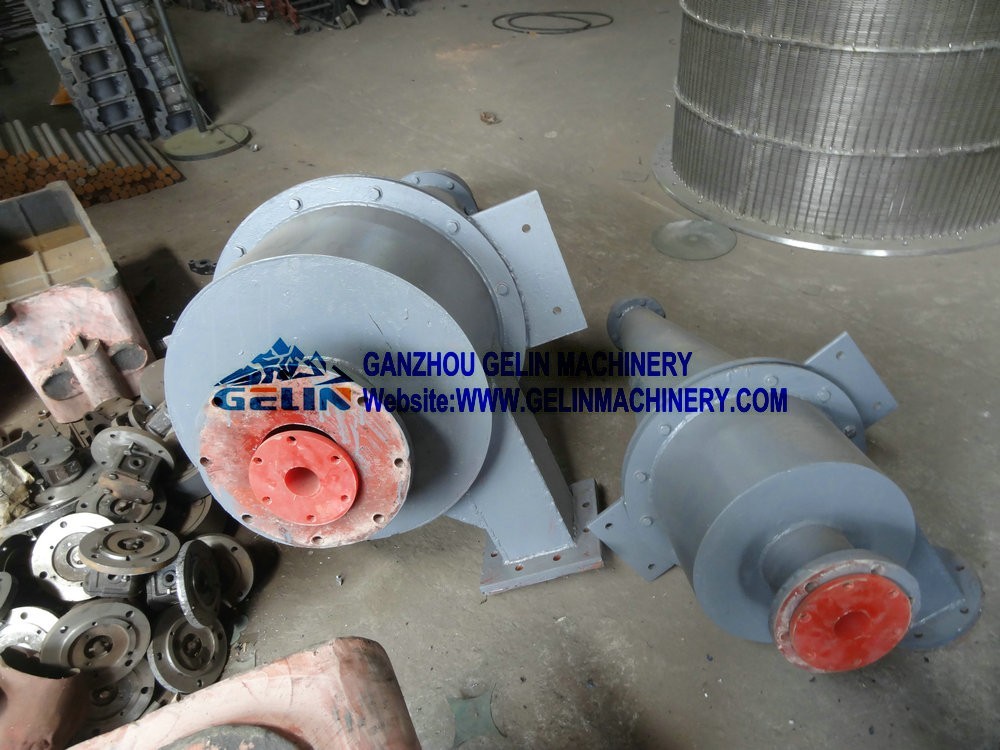

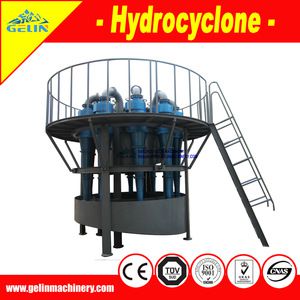

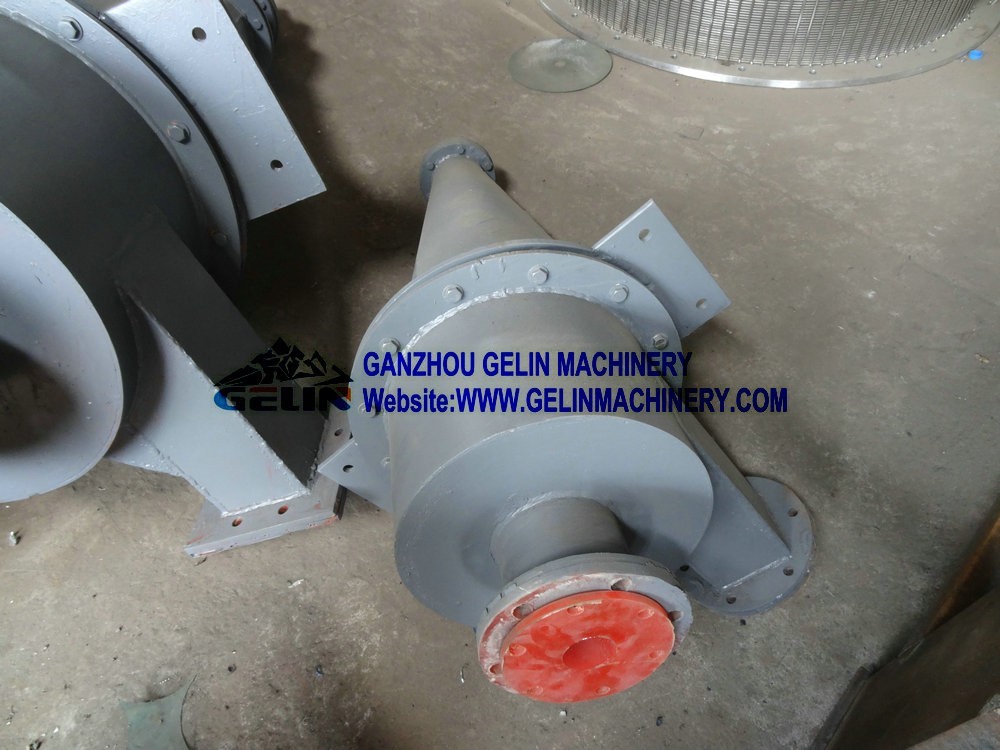

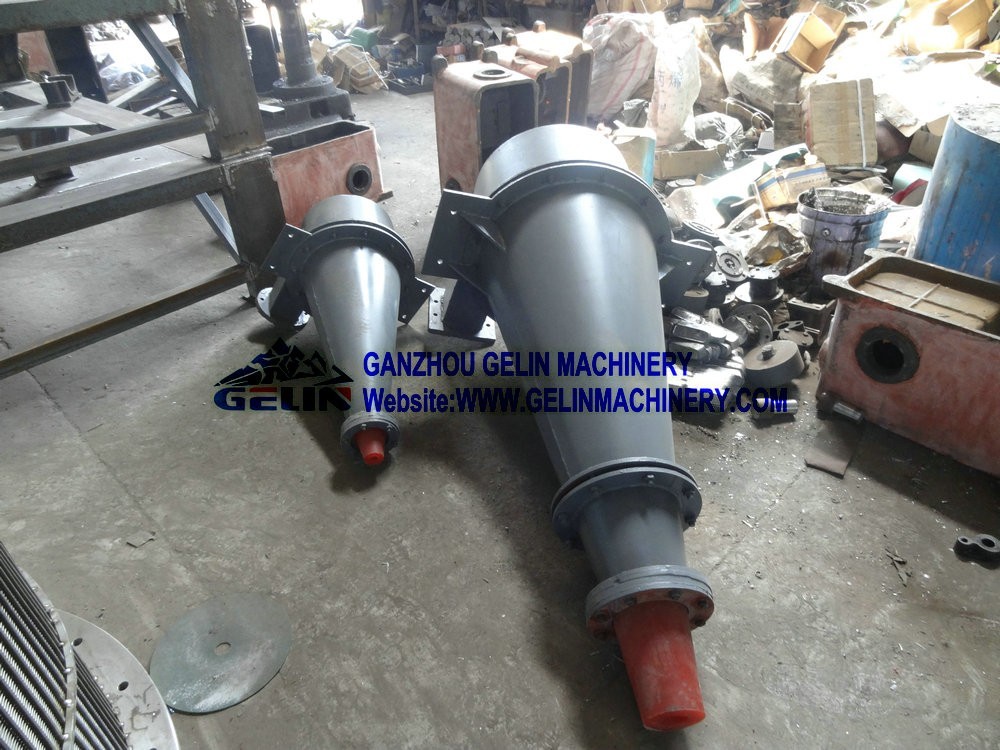

hydrocyclone mining separation separator
Description
Hydraulic cyclone is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries. It is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size.
Working principle :
In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader.
It benefits for enhancing grader utilizing coefficient. Choose proper specification and mode of cyclone according to grinding processing capacity, over fall fineness and sedimentation concentration.
1.Simple structure; light and nimble; no moving part
2.Low maintenance charge; easy to attach and detach; save floor space; low construction expense
3.Large processing capacity
4.The classification particle size can reach 10μm
Why choose GELIN Hydrocyclone?
1. The 3-dimension snail-shaped feeding structure makes it possible to feed minerals in circumferential and axial directions. This design can tremendously improve classification efficiency in three ways------first of all, after entering the hydraulic cyclone, minerals avert from being disturbed by turbulent flows occurring near overflow pipes; secondly, the speed of coarse ore cyclone is accelerated towards underflow outlet; thirdly, minerals avoid swift rotating.
2. The square pipe-type feeding model enables ores to get closer to the inner wall of hydraulic cyclone, which contributes to the lightest abrasion of feeding ores and the strongest divergent forces of ores. Consequently, abrasion of feeding box is reduced to the lowest level.
3. The unique adjustment device of wedge-shaped feeding opening can quickly adjust the feeding size, so classification efficiency is hugely raised.
4. The wedge-shaped adjusting valve constitutes a replaceable part for the inlet pipe, so there is no need to change the whole liner of hydraulic cyclone.
5. The premium abrasion performance of liner made from GELIN abrasion-resistant rubber can considerably reduce using cost, and maintain the inner dimension and shape of hydraulic cyclone, so the stable classification efficiency is achievable.
6. Our company can also provide molding abrasion-resistant rubber liner and cold bonding abrasion-resistant rubber liner, the service life of which is extraordinarily long.
7. The appropriative software helps to choose the right mode accurately and quickly
- Container
40HQ/40GP/20GP
- Load Port
Xiamen ,Guangzhou, Shenzhen,Shanghai or at customers' request
- Ball Mill
It is a key equipment to grind the crushed materials and widely used in powder-making production line.

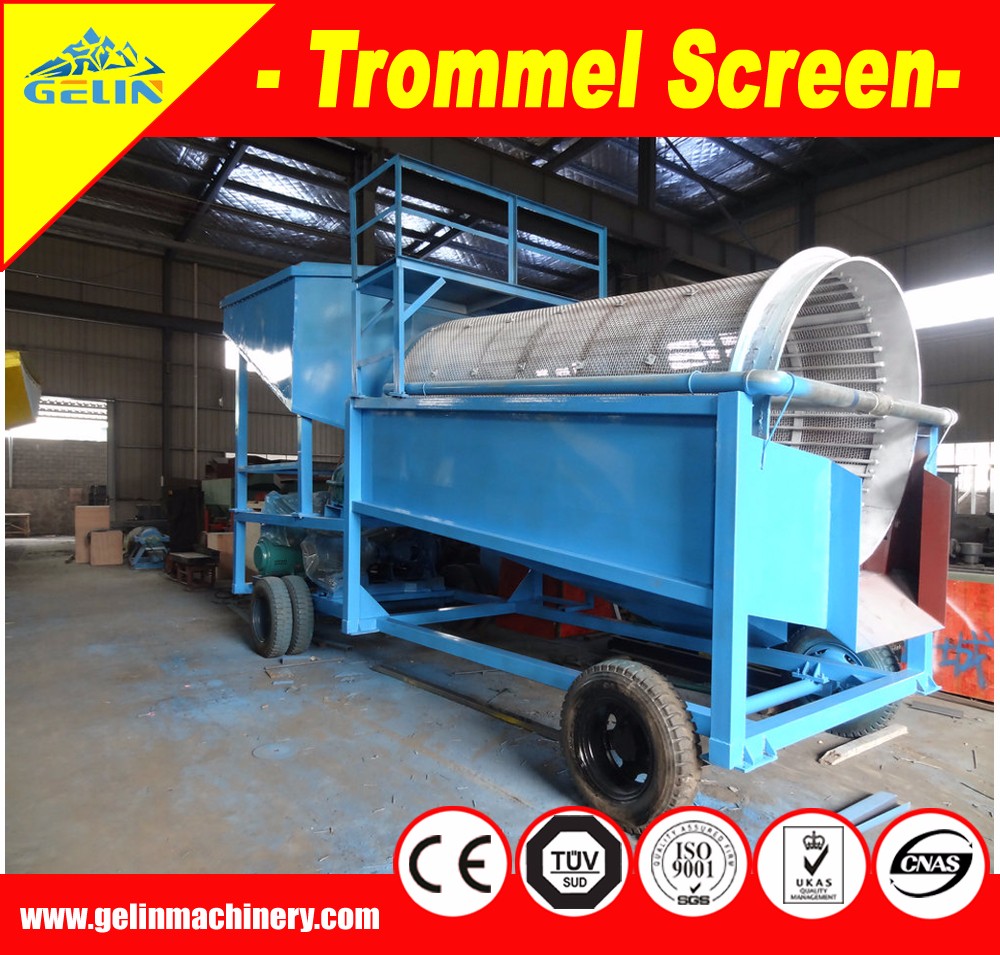

- Gold Trommel Screen
This machine is designed for processing alluvial gold mine, river and sand gold, placer gold, ect.

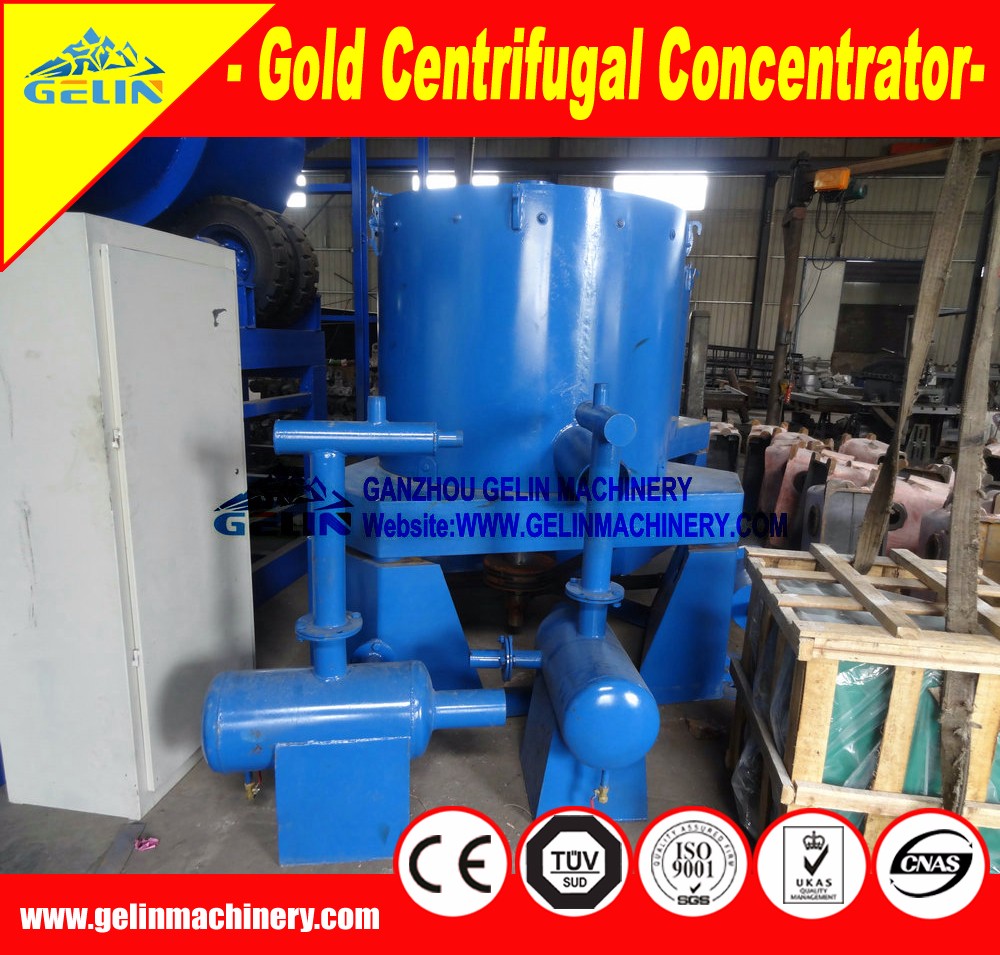

- Gold Centrifugal Concentrator
It is a relatively new type of gravity concentration apparatus.

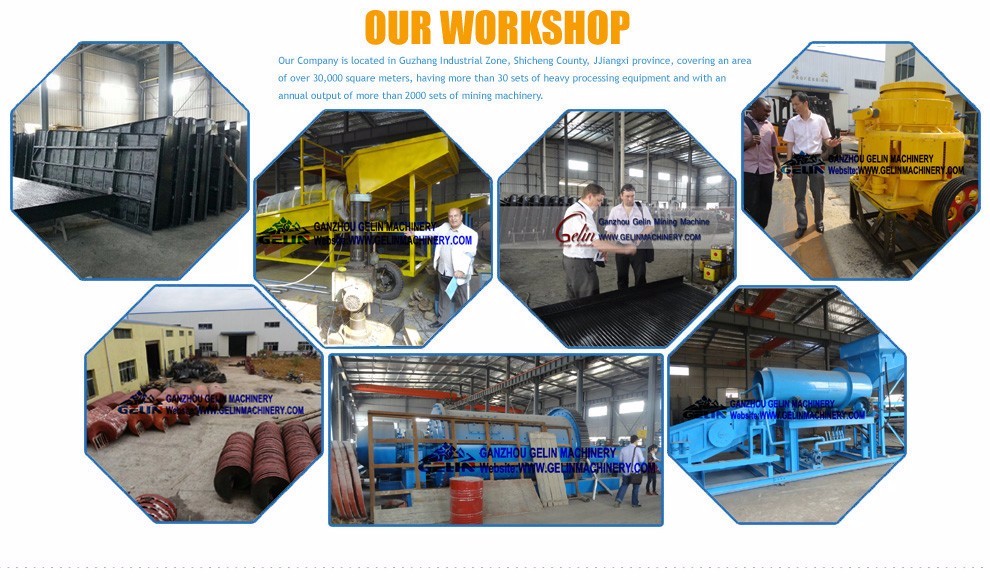

Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.
Experienced mining machinery manufacturer
Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
--- PRE-SALE SERVICE ---
1.Based on clients’ request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;
2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;

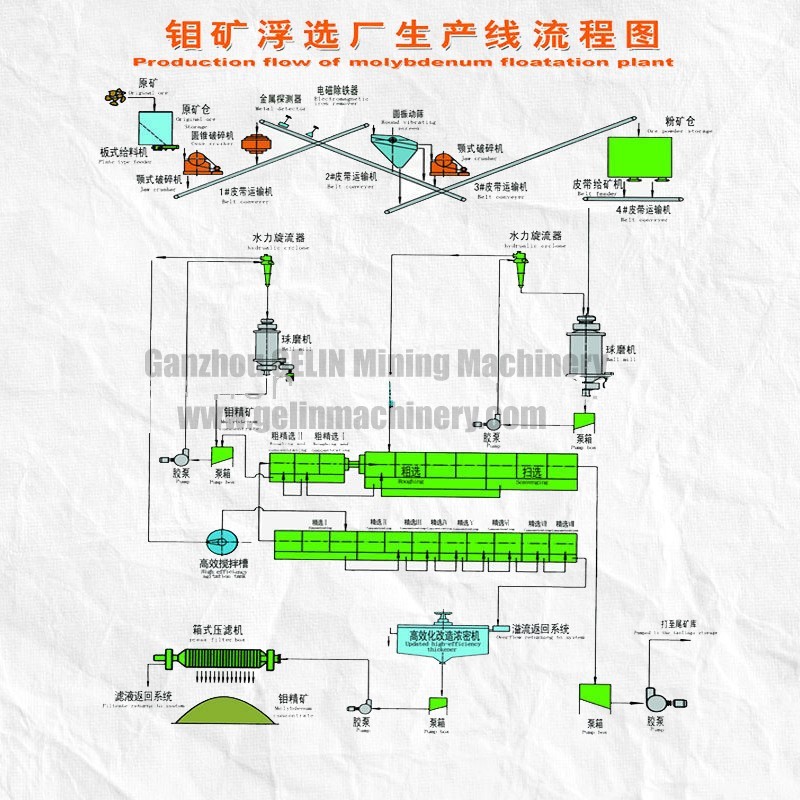

3. Design and provide the complete processing flowchart;
4. Design & manufacturer products according to clients’ demands.
--- AFTER-SALE SERVICE ---
1.Pre-check and test the products before delivery;
2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;
3.Trace the status of the shipping until the products received;
4.Prepare required documents to let clients pass custom clearance;
5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel
3) Carry out any other service clients may need
6. Provide technical exchanging & spare parts for life-long term
--- ONE STOP SOLUTION ---
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: If i need the complete mineral processing line. is Gelin able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
Welcome you visit our factory in your free time!
