Normally matching with slurry pulp to achieve ore pulp classify. Under the effect of centrifugal force, gravity and flotage, the light particles will overflow through the overflow opening while the heavy particles will discharge from the underflow port. Then the classifying process is finished.

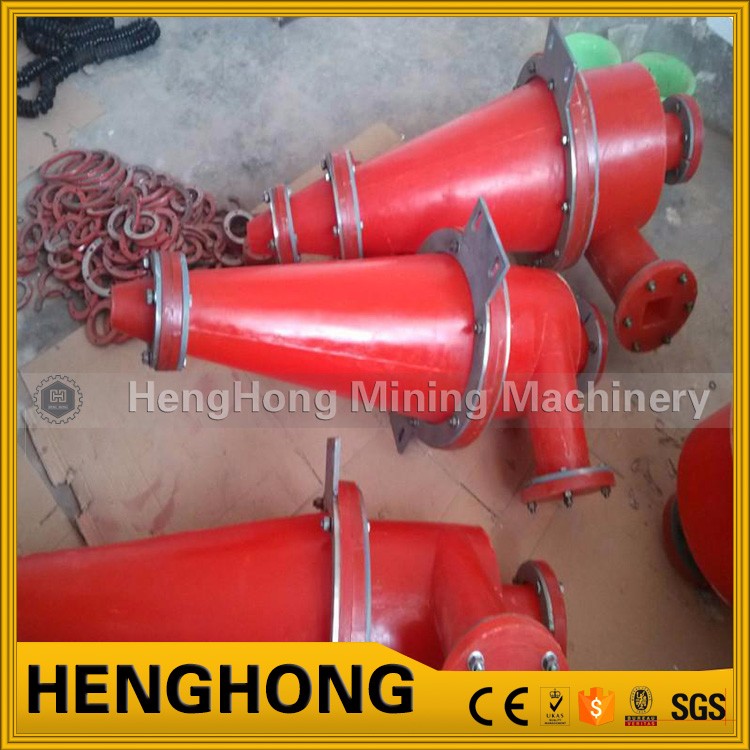

our HENGHONG hydro cyclone separator is mainly used in ore dressing industry for classifying sorting, thickening and desliming, also can be used for waste water treatment.

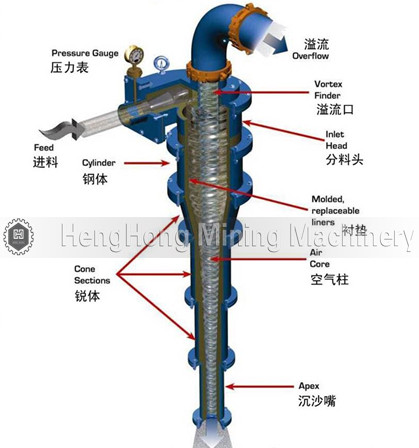

Our hydro cyclone separator is consisting of underflow port, overflow port, inlet mouth.
2. Large processing capacity of unit volume ;
3. High classifying efficiency;
4. Small floor space required.
| Model | Internal Dia. | Inlet Dia. | Overflow Dia. | Underflow Dia. | Max Feeding Size | Capacity | Dimension （LxWxH） | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (m3/h) | (mm) | (kg) | |
| FX-100 | 100 | 23 | 20-40 | 8-18 | 1 | 5-12 | 250x210x525 | 8 |
| FX-125 | 125 | 26 | 25-40 | 8-18 | 1 | 8-15 | 280x185x617 | 10 |
| FX-150 | 150 | 36 | 30-45 | 8-22 | 1.5 | 11-20 | 320x270x682 | 22 |
| FX-200 | 200 | 48 | 40-65 | 16-32 | 2 | 25-40 | 548x307x1025 | 36 |
| FX-250 | 250 | 55 | 60-120 | 16-40 | 3 | 40-65 | 563x534x1178 | 63 |
| FX-300 | 300 | 64 | 65-120 | 20-40 | 5 | 45-90 | 530x410x1305 | 88 |
| FX-350 | 350 | 80 | 80-120 | 30-70 | 6 | 60-105 | 530x413x1411 | 135 |
| FX-500 | 500 | 130 | 130-220 | 35-100 | 10 | 140-220 | 951x718x1825 | 416 |
| FX-600 | 600 | 187 | 180-240 | 80-150 | 16 | 250-360 | 1215x850x2720 | 950 |
Payment terms
We usually use T/T, L/C
T/T: T/T 30% in advance, the balance be paid after inspection before the delivery
Before delivery, we will send you the pictures of finished machines and welcome you to come to our factory for inspection

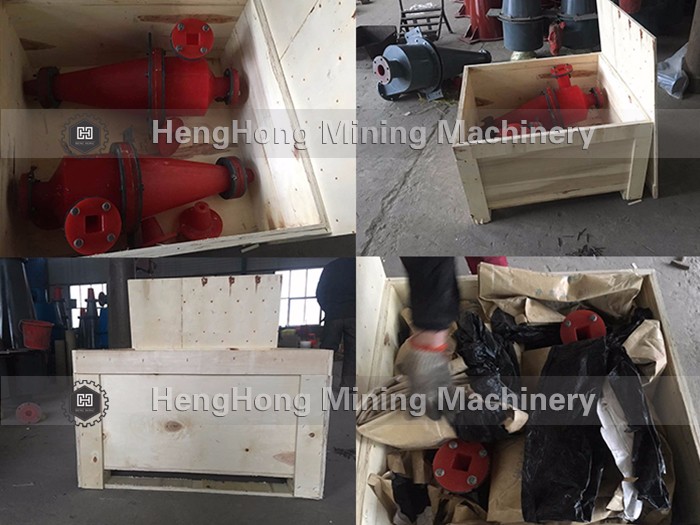

Way of packing
FCL & LCL export standard in 20/40feet container
FCL: Sea-worthy package,machine are fixed in container and the spare parts are packed in wooden boxes
Shipping
MSK/MSC/APL/EMC/PIL and so on
By air shipment, by courier express
Warranty
18 months under normal use except for wearing parts
1. We have more than 30 years of production experience in ore dressing industry with high quality.
2. Certificates: CE, ISO9001:2008, BV, SGS.
3. Our company have independent Imp. & Exp. Right, R&D center, production base, QC, Marketing and after - sales service department.
4. Our products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Chesapeake, South Africa, Tanzania, Ghana, etc.
Pre-sale service:
We will provide you with the prior plan, process flowchart design and production equipment in line with your special needs.
On-sale service:
We will send technicians to you for guiding the equipment installation, commissioning and staff training.
After-sale service:
We will regularly pay return visit to customers for establishing a long-term and friendly relationship.
Warmly welcome you come to visit our factory.

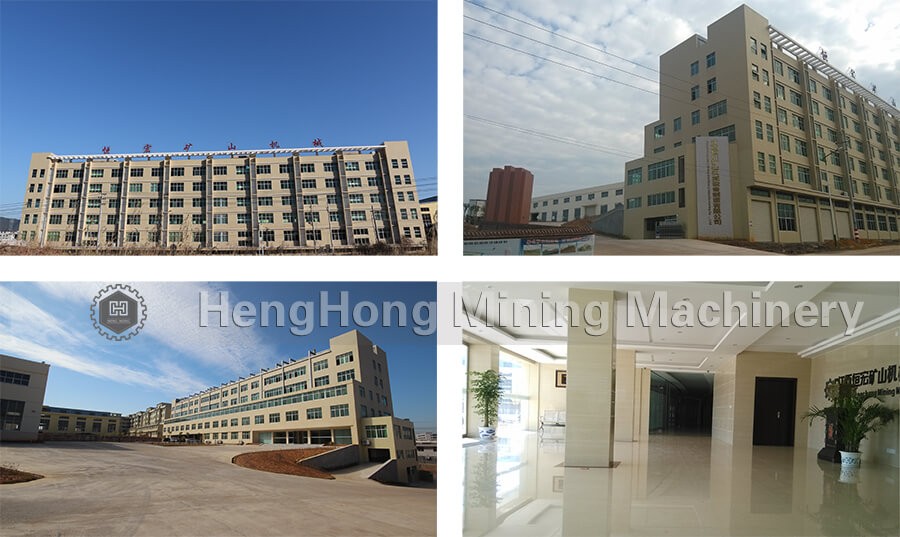

Our factory located at Ganzhou city, Jiangxi province, China.
Visit Line: Take flight from your country to Guangzhou airport in China, and then take flight from Guangzhou to Ganzhou airport, then we will send the car to pick you up from Ganzhou airport.
