mineral particle separator hydrocyclone hydraulic equipment

• Cyclone Separator is a  kind of  dust equipment used for removing suspended solids for a long  time in the

        covening gas.

• Cyclone separator in the application of pipeline engineering solved the pipeline gas of the dust, fog's influ-

        ence on the transmission and use of the work.

• Setting the separator in the front-end of filter In the process design can greatly improve the whole process

        of the pipeline transmission precision and efficiency, meanhwile, it also can improve the service life of pipe.

• It connected Cyclone centrifugal separation,filtration separation technologies etc as one which widely used

        in the separation of gas, liquid and gas, solid separation of the mixture.

• Cyclone separation as an important equipment in natural gas, petroleum, chemical industry, coal-fired po-

       wer plants and environmental protection and other fields have been widely used.

• It uses principle of gravity settling, centrifugal sedimentation to isolate solid, liquid impurities and fine dust

       particles from air flow.

• When entrained solids and gases from one tangent direction of the droplets into the cyclone, the gas can

        rotate on high  speed along the wall and downward  to the bottom as spiral motion according  to  the spiral

        path.When reach to the bottom then upward as the inner topspin airflow.Finally the gas out from the outlet

        of separator into the pipeline.

       Our cyclone separator specification

•  Notice: Separator Efficiency is according to the Quality Percentage

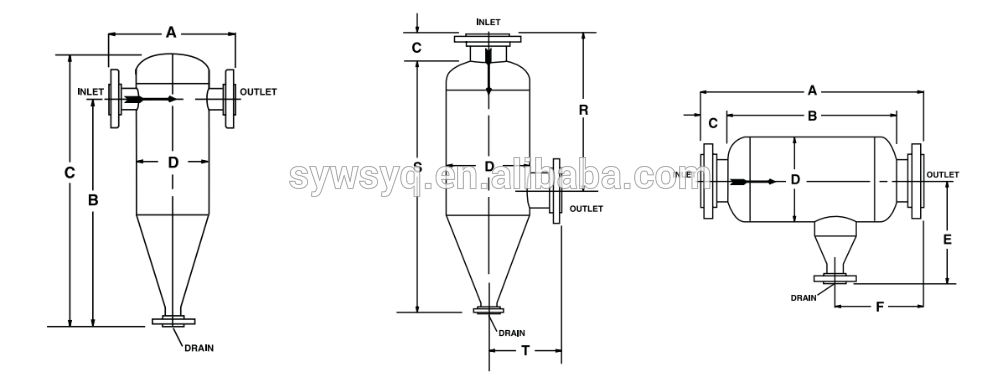

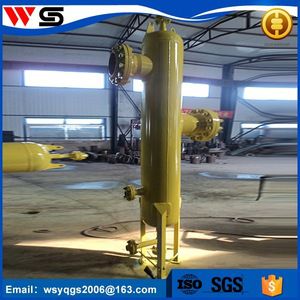

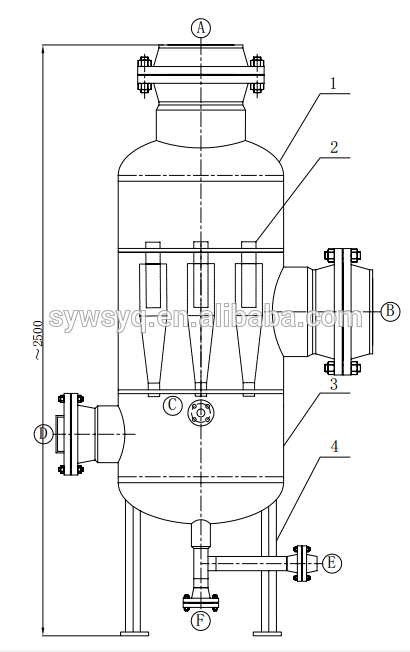

Cyclone separator :Vertical Type

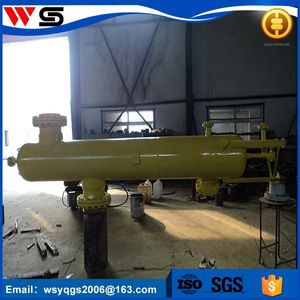

Cyclone separator : Horizontal

•  Important Tip:

              We make professional cyclone separator and filter separator and can provide matched filter se-

      parator equipment ourselves.
