High quality from China mine cyclone separators
Our Products
Product description
- Higher capacity
- Longer service life of wear parts
- Wider application range
- Finer Separation size
- Higher efficiency
- Design and model selection available

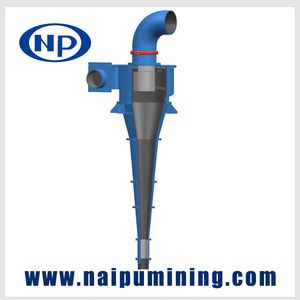

- Cyclones have components of inner liners made of abrasion resistant rubber, which can be replaced individually
Model and Technical parameters
Specification (mm) | Φ600 | Φ500 | Φ380 | Φ350 | Φ250 | Φ125 | Φ75 |
Cylinder ID (mm) | 660 | 500 | 380 | 350 | 250 | 150 | 75 |
Cylinder height (mm) | 600 | 450 | 330 | 310 | 250 | 210 | 100 |
Cone angle α(°) | 20 | 20 | 20 | 20 | 20 | 10.20 | 10 |
Capacity V m3/h (at P0=0.1Mpa ) | 157-580 | 69-480 | 51-200 | 30-168 | 16-110 | 9-51 | 1.8-6.9 |
Maximum particle size μm in O/F (at δ=2.7t/ m3) | 60-250 | 50-200 | 45-160 | 40-150 | 30-100 | 20-50 | 10-20 |
Feed line square inlet (mm) | 340x340 | 280x280 | 200x200 | 180x180 | 130x130 | 100x100 | 50x50 |
Feed line diameter (mm) | Φ150 | Φ130 | Φ96 | Φ90 | Φ65 | Φ32-Φ40 | Φ17 |
Apex ID (mm) | Φ64 -Φ180 | Φ48-Φ150 | Φ36-Φ100 | Φ34-Φ95 | Φ24 –Φ75 | Φ12 -Φ34 | Φ8 –Φ17 |
Vortex finder ID (mm) | Φ250 | Φ160 | Φ125 | Φ112 | Φ82 | Φ40 –Φ50 | Φ22 |
Specification (mm) | Φ600 | Φ500 | Φ380 | Φ350 | Φ250 | Φ125 | Φ75 |

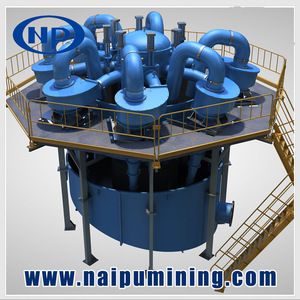

Quantity of cyclones in each cluster (piece) | 4-6 | 4-6 | 4-6 | 4-8 | 4-8 | 4-12 | 4-12 |
The physical characteristics are as the following:
Color | Red (LINATEX rubber) | Black (NAIPU rubber) |
Type of polymer | Native rubber | Native rubber |
hardness | 38 | 40 |
Tensile strength | 26.6Mpa | 27MPa |
Extensibility (breaking)% | 810% | ≥800% |
Permanent deformation | 7 | 8 |
Tearing strength | 44N/mm | 44N/mm |
Resilience | 83% | 80% |
S. G. | 0.97 | 1.15 |
Temperature range | -40 deg C~ +70 deg C | -20 deg C ~ +75 deg C |
Our strength
1. Our R&D team: we have our own professional research and development team;
2. Unique product prescription: Our prescription greatly improve the quality of our products;
3. Wide range of application: We have established long business relationship with many famous international companies such as JCC, China, Tajikistan Mining, Zijin Group, CITIC Heavy Machinery Co., China, to name just a few;
4. Production capacity: We have a big factory, so our production capacity is strong.
5. Short delivery time: All products you want can be completed within short time.
Production process
Packing and transportation
Certificates and national patent:
Users:
Applied Cases:
China
