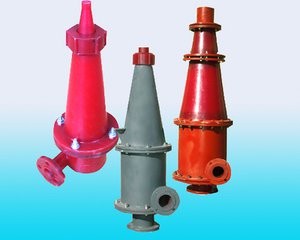

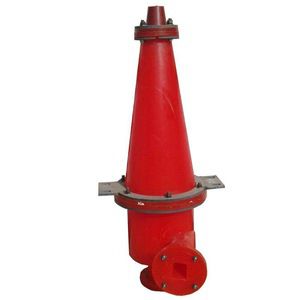

Air separator hydrocyclones

PRIMARY PARAMETERS

Condition

New

Type

hydrocyclone

Production Capacity

80%~90%

Place of Origin

Henan, China (Mainland)

Brand Name

Hongfeng

Model Number

Voltage

220V/380V

Power(W)

1.1kw

Dimension(L*W*H)

7000*2000*3000 Mm

Weight

750kg

Certification

ISO

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Application

Ore

Installation

Engineer Guide

Keywords

hydrocyclone,hydrocyclone separator

Capacity

25-350

Feeding size

0.03-0.35

Usage

Gold Separating

After sale service

1year for maintain

Material

Ore,stone

Quality

Used best material making

DETAIL DESCRIPTION

Product Description

Product Introduction:

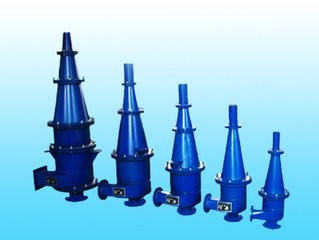

Choose proper specification and mode of cyclone according to grinding processing capacity, overfall fineness and sedimentation concentration. This is precondition of getting the most optimized work condition. Our Company is able to offer stand-alone, parallel connection machine or machine series in such specs as Φ50, Φ75, Φ100, Φ125, Φ150, Φ200, Φ250, Φ300, Φ350, Φ500 and Φ660.

Technology data:

pecification	Canister Interior Diameter (mm)	Cone Angle (o)	Overfall Pipe Dia. (mm)	Bottom Exit Dia. (mm)	Max. Permitted Feeding Granularity (mm)	Feeding Pressure (Mpa)	Processing Capacity (m3/h)	Classifica -tion Granularity (μm)	Overall Size	Weight (Kg)
L (mm)	W (mm)	H (mm)
FX660	660	20	180~240	80~150	16	0.03-0.2	250~350	74-220	1250	890	2650	995
FX500	500	20	130~200	35~100	10	0.03~0.3	140~220	74~200	850	790	2050	495
15	74~150	850	790	2380	540
FX350	350	20	80~120	30~70	6	0.04~0.3	60~100	50~150	775	605	1765	182
15	50~120	775	605	2115	230
FX300	300	20	65~115	20~50	5	0.04~0.3	45~85	50~150	665	585	1310	108
15	40~100	665	585	1505	169
FX250	250	20	60~100	16~45	3	0.06~0.35	40~60	40~100	540	480	1180	72
15	40~100	540	480	1220	77
10	30~100	540	480	1380	83
FX200	200	20	40~65	16~32	2	0.06~0.35	25~40	40~100	435	360	1050	60
15

Packaging & Shipping

Our Services

Q:Hi, are you mining machinery manufacturer?A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.Q:which country have your products been exported?A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.Q:Can you do mineral processing test?A:Yes, not only can do it in your country, also can back to our company.
