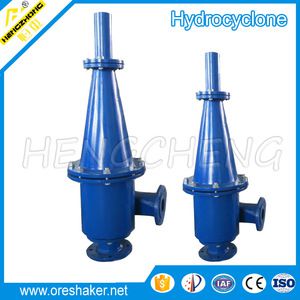

factory price industrial cyclone separator Mine Machinery Hydrocyclone For sale
mine machinery hydrocyclone for sale
cyclone industrial separator
hydrocyclone separator
Description
Mine Machinery Hydrocyclone is a continuously device that utilizes centrifugal force to accelerate the settling rate of particles. It is one of the most important devices in the minerals industry, its main use in mineral processing being as a classifier, which has proved extremely efficient at fine separation size.
Technical Specification
Model | Interior Dia (mm) | Cone Angle | Overall Pipe Dia (mm) | Feeding Size (mm) | Feeding Pressure (Mpa) | Processing Capacity (m3/h) | Range (um) | Dimensions (L*W*H)(mm) | ||
FX660 | 660 | 20 | 180-240 | 16 | 0.03-0.2 | 250-350 | 74-220 | 1250 | 890 | 2650 |
FX500 | 500 | 20 | 130-200 | 10 | 0.03-0.3 | 140-220 | 74-200 | 850 | 790 | 2050 |
15 | 74-150 | 850 | 790 | 2380 | ||||||
FX350 | 350 | 20 | 80-120 | 6 | 0.04-0.3 | 60-100 | 50-150 | 775 | 605 | 1765 |
15 | 50-120 | 775 | 605 | 2115 | ||||||
FX300 | 300 | 20 | 65-115 | 5 | 0.04-0.3 | 45-85 | 50-150 | 665 | 585 | 1310 |
15 | 40-100 | 665 | 585 | 1505 | ||||||
FX250 | 250 | 20 | 60-100 | 3 | 0.06-0.35 | 40-60 | 40-100 | 540 | 480 | 1180 |
15 | 40-100 | 540 | 480 | 1220 | ||||||
10 | 30-100 | 540 | 480 | 1380 | ||||||
FX200 | 200 | 20 |
40-65 | 2 | 0.06-0.35 | 25-40 | 40-100 | 435 | 360 | 1050 |
15 | 30-100 | 435 | 360 | 1115 | ||||||
10 | 30-100 | 435 | 360 | 1205 | ||||||
FX150 | 150 | 20 | 30-45 | 1.5 | 0.06-0.35 | 11-20 | 30-74 | 280 | 295 | 690 |
15 | 30-74 | 280 | 295 | 900 | ||||||
8 | 30-74 | 280 | 295 | 1270 | ||||||
FX125 | 125 | 17 | 25-40 | 1 | 0.06-0.35 | 8-15 | 20-100 | 210 | 185 | 620 |
8 | 20-74 | 250 | 240 | 985 |
Application
It is widely used in closed-circuit grinding operations but has found many other uses, such as desliming, degritting, and thickening, it has also found wide acceptance recently for the washing of fine coal.
Export standard container 20GP or 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Jiangxi Hengcheng Mining Equipment Co.,Ltd is always going for the best quality and perfect service for customers
and it has already won lots of praises at home and abroad.
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1.Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet
customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized
solution accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. Most favorable scheme for you with the guaranteed quality.
4. Timely communication to make sure improvement of project and your requirement met.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4.If any failure or question about the machines or the processing line, contact us and we are
available at any time.

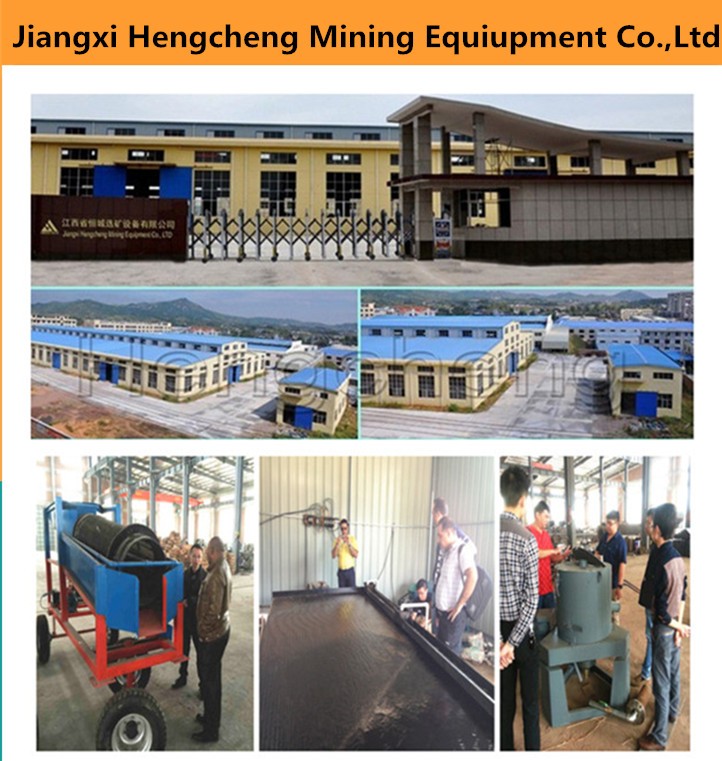

Warmly welcome you come to visist our factory.
Our factory located at Ganzhou city, Jiangxi province, China.
Take flight from your country to Guangzhou airport in China, and then take flight from Guangzhou-- to Gan zhou airport, then we will send the car to pick up you from Ganzhou airport.
