new produce modified starch rotary vibrating screen
new produce modified starch rotary vibrating screen is designed as a high-precision screening machinery.starch rotary vibrating screen is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1-5 layers).Material can be divided into all carton steel,contact part stainless steel and all stainless steel.

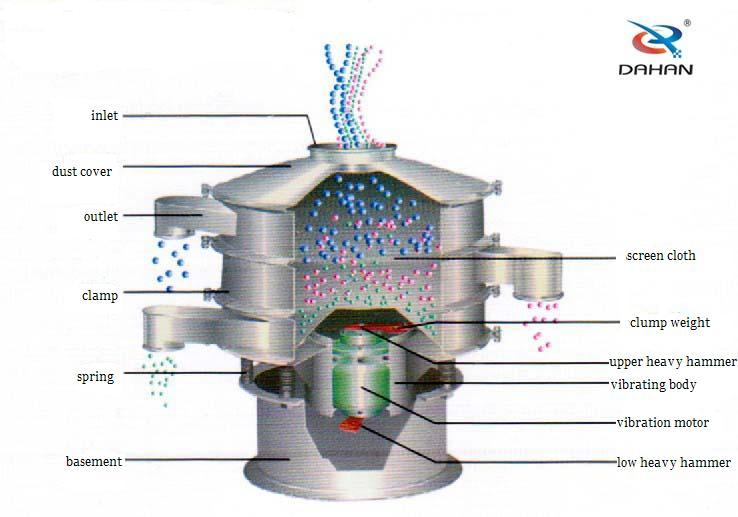

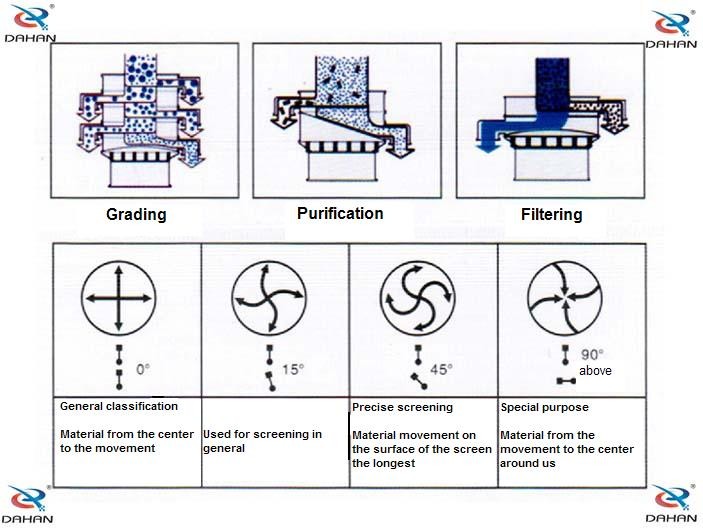

DH series new produce modified starch rotary vibrating screen is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine,where the vibration motor acts as the vibratory source.The direction of the eccentric hammers may change its rotational mode either in horizontal,vertical and inclined movement onto the sieving screener surface.
new produce modified starch rotary vibrating screen parameter list
| Model | Power (kw) | Sieve diameter (mm) | Granularity (mm) | Voltage (V) | RPM (r/min) | Throughput (kg/h) |
-1S DH-400-2S -3S | 0.18 | 350 | <10 | 380 | 1500 | 100 |
| -1S DH-600-2S -3S | 0.25 | 550 | <10 | 500 | ||
| -1S DH-800-2S -3S | 0.55 | 750 | <10 | 800 | ||
| -1S DH-1000-2S -3S | 0.75 | 920 | <10 | 1400 | ||
| -1S DH-1200-2S -3S | 1.1 | 1120 | <10 | 2100 | ||
| -1S DH-1500-2S -3S | 1.5 | 1420 | <10 | 2600 | ||
| -1S DH-1800-2S -3S | 2.2 | 1720 | <10 | 3300 |
Chemical industry:resin,coating,drug industry,cosmetic,oil,Herbal powder,ect.
The food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soya-bean milk, egg powder, rice, soy, fish meal, pineapple juice, etc.
Metals, metallurgical mining :aluminite powder,lead powder,copper powder,ore,alloy powder,electrode powder,abrasive powder,refraclory materials,kaolin,lime,aluminium oxide,quartz sand,ect.
We provide 12months quality warranty to make sure your machine well runs consistently.
Pre-sale services:
a. Professional engineer design the production line for you
b.Recommend suitable equipment according to your special demand.
During-sale services:
a.Pre-check and accept products before delivery
b.Send technicians to the jobsite for guiding the installation and adjustment
c.Training operators and finishing the check to satisfy your requiremnet
After-sale services:
a.Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible
b.To establish long-term friendship, we will regulary contact with our customers.
FAQ:
Q:What is the real delivery time of your factory?
A: 10 to 15 days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer.Normally,we will provide telephone guidance.
Pls provide the following information for us.
1. material name, the density(kg/m3), water content(%).
2. the necessary capacity you required(per hour)
3. Machine material. Pls choose one:
a. All stainless steel 304
b. All carbon steel
c. The contacting part is stainless steel, the other parts is carbon steel.
4. the dimension of the machine can be designed for you.
5. Additional parts ,like the mobil wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained.
6. How many layers you need??
7. Pls inform the voltage&frequency in your city.
