| Model | TLS-600 | TLS-800 | TLS-1000 | TLS-1200 | TLS-1500 | TLS-1800 | TLS-2000 |
| Diameter (mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1500 | Φ1800 | Φ2000 |
| Effective area(m2) | 0.24 | 0.45 | 0.67 | 1.0 | 1.6 | 2.43 | 3.01 |
| Mesh | 2-400 | ||||||
| Material size(mm) | <Φ10 | <Φ15 | <Φ20 | <Φ20 | <Φ20 | <Φ30 | <Φ30 |
| Power (Kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 3 |
| Height to 1st floor | 605 | 730 | 810 | 970 | 1000 | 1530 | 1725 |
| Height to 2nd floor | 705 | 860 | 940 | 1110 | 1150 | 1710 | 1905 |
| Height to 3rd floor | 805 | 990 | 1070 | 1250 | 1300 | 1890 | 2085 |
It is suitable for any dry material screening from 0.74 mm ~ 5 mm. The largest particle size is 10 mm. It is widely used in chemical, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries.
Chemical industry: resin, paints, industrial chemicals, cosmetics, paint, medicine powder.
Food industry: powdered sugar, starch, salt, rice flour, milk powder, milk, egg, soy sauce, fruit juice.
Metals, metallurgical powder: aluminum powder, aluminum powder, copper powder, ore, alloy powder, welding powder, manganese dioxide, copper powder, magnetic power, abrasives, refractory, kaolin, limestone, alumina, carbonate, heavy calcium, silica sand.
Pollution treatment: waste oil, waste water, wastewater dyeing, additives, such as activated carbon.
For example
1. High efficiency, refined design, duration, any powders and mucilage are suitable for using.
2. Easily to replace the screen, simple operation and convenience washing.
3. Never jam the hole meshwork, no powder flying, filter size of the powder between 500 mesh and 0.028 mm.
4. Discharge the impurity and coarse materials automobile and operates continuously.
5. Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
6. Small volume, move easily.
7. The highest layers of the screen are about 5 layers. But 3 layers are suggested.

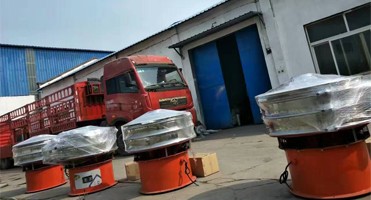

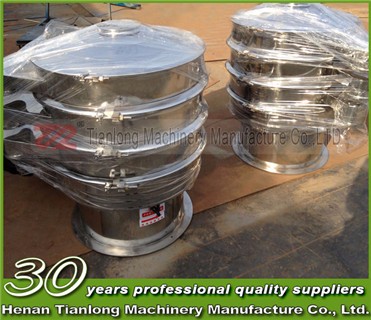

| Packaging | |
| Size | 1000 (L) * 1000(W) * 1100 (H) |
| Weight | 200KG |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. Or pack it according to customers special request. |
1.Are you trading company or manufacturer?
We are a professional factory
2.Delivery time?
If we don't have goods in stock, then normally delivery time 7 days after we receive the deposit, if the order is big, we need to extend the delivery time.
24 hours online email service
3.Can we test our material by your machine free?
Yes,please bring your materials so that we can test for you;If it is not available for you to come to our factory,you may deliver to our address and we can take video of machine operation for you.
4.Don't know which type you need?
Please contact us!
5.Don't know how the machine working?
Please contact us to see the video and get further information!
Our principle: high honest, quality,service
We are a big factory with rich experience and technology, engaged in the machinery industry for more than 30 years, best quality controled best services.

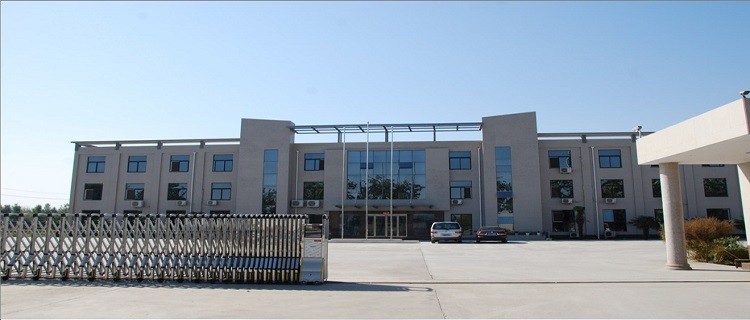

Henan Tianlong Machinery Manufacture Co.,Ltd is a Industry&Trading Enterprise combined with Scientific Research,Production and Service,relies on Sophisticated equipment,high quality Technical Personnel,Scientific Management and Strict Warranty Production system.
Now it has became one of the biggest group of companies in China, is especially professional in producing Agriculture spare parts, Auto spare parts,Mechanical Equipment and Equipment spare parts. Our products have been esported to American,Germany,European,Southeast Asia,Middle East and many other countries and regions.
