Disc centrifuge are special designed for vegetable oilrefining,degumming,neutralization,washing,
dewaxing vegetable oil refining, such as peanut oils, colza oil,palm oil,oliver oil,sunflower oil,cottonseed oil,corn oil etc
Product description:
Enough oil should be ensured in human’s dietary, and vegetable oil and animal oil meet with their different nutrients to meet the human body needs. So the oil quality affects the human health directly. Juneng Separator can suitable for a variety of oils and fats and provide personalized solutions in order to achieve optimal oil and maximized production capacity.
Application:
DHZ series disc centrifuge for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils .
Vegetable oil: Colza oil, cottonseed oil, Corn oil, palm oil, soybean oil, Peanut oil, Rice oil, Sesame oil, Safflower oil and son on.
Animal oil: fish oil and other various animal fat clarification.
Product competitive advantage:
1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, The professional designed centripetal pump system has many advantages such as stability outlet pressure, large regulating sphere, easily operating and so on.
6, This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
Product Specifications 30-50 Ton Per Day
100-150 Ton Per Day
200-300 Ton per Day
Quality guarantee
1.Separator manufactured in compliance with quality guaranteen system of ISO9001-2000.
2.The Seller shall guarantee that the separator manufactured in compliance with quality guarantee standard
of JB/T8103-2005.
3.The guarantee period shall be 1 year counted from the date on which the commodity arrivesat the port
of destination.

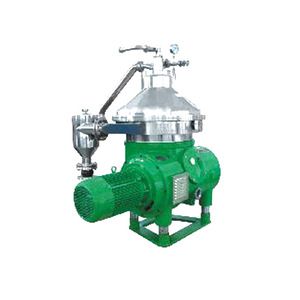

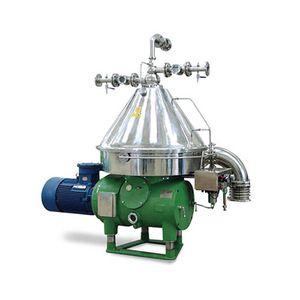

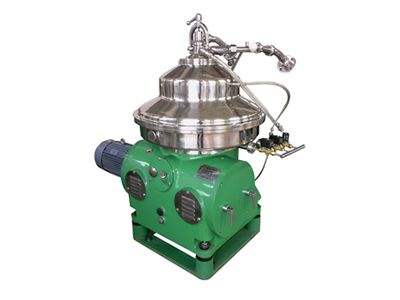

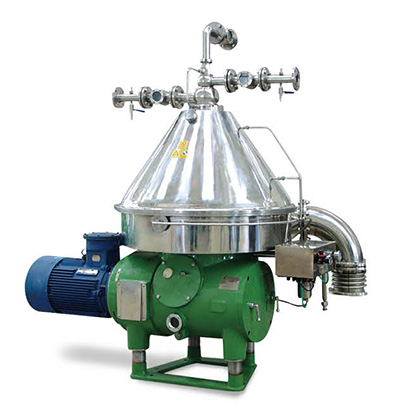

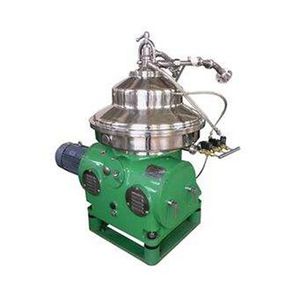

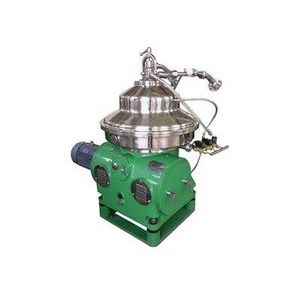

Pictures:
Technical parameters:
| Model | Capacity(L/H) | Inlet pressure (MPa) | Outlet pressure (MPa) | Power (Kw) | Weight (Kg) | Dimension (mm) |
| DHZ 360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
| DHZ 470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
| DHZ 550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 |
| DHZ 550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 |
| DHZ 700 | 15000-3000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
| DRZ 360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 |
| DRZ 400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 |
| DRZ 400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 |
| DRZ 550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |

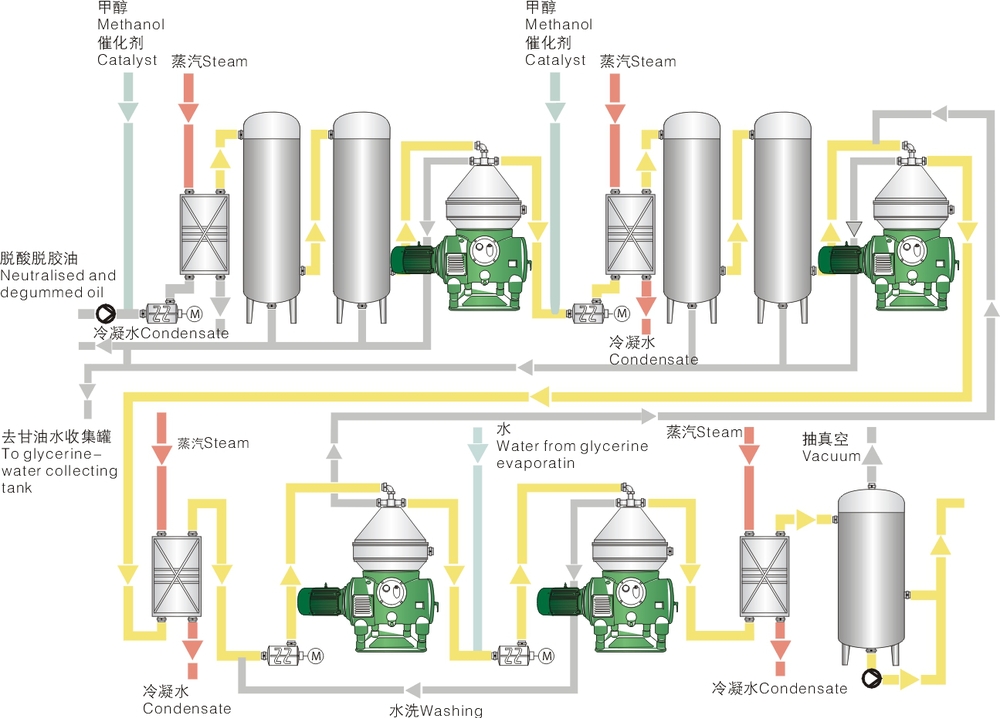

Process Flowchart:
Company Information
Our corporation was established in 2002, mainly engaged in oil press engineering R&D,equipment manufacture, installation commissioning and training services.We seize more business opportunities in the competition at any time, to create greater value for you and the society.Our team, which is highly skilled,is ready to serve you in 24 hour
Packaging & Shipping
Our Services
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorab
le credibility to meet customers'requirements in all aspects.We will supply you 24 h
ours a day and7 days a week after-sale services.
