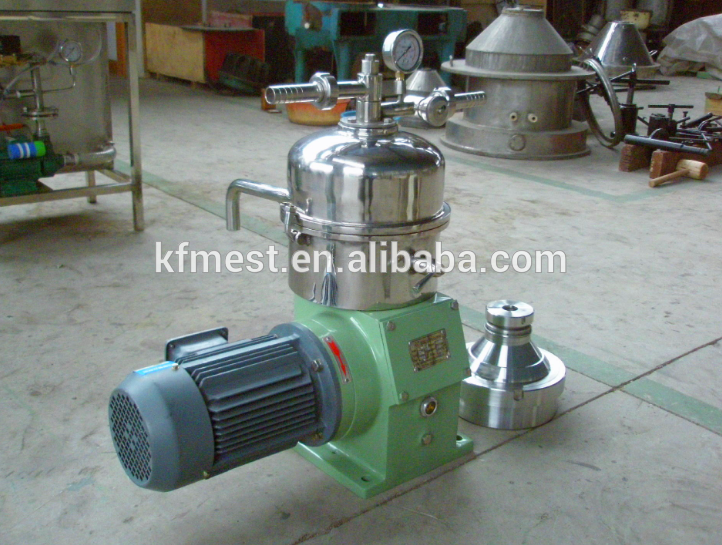

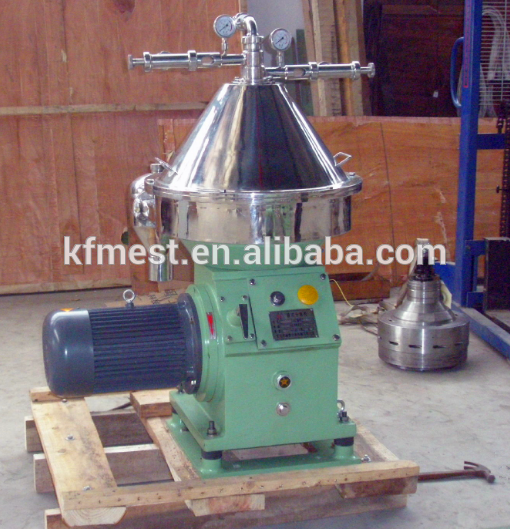

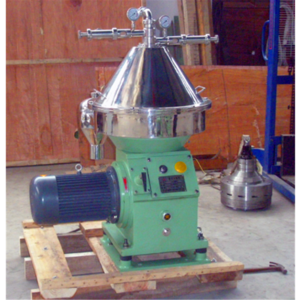

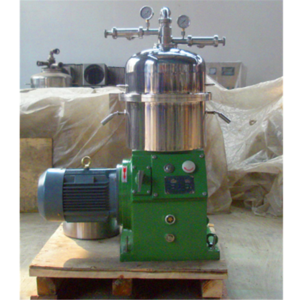

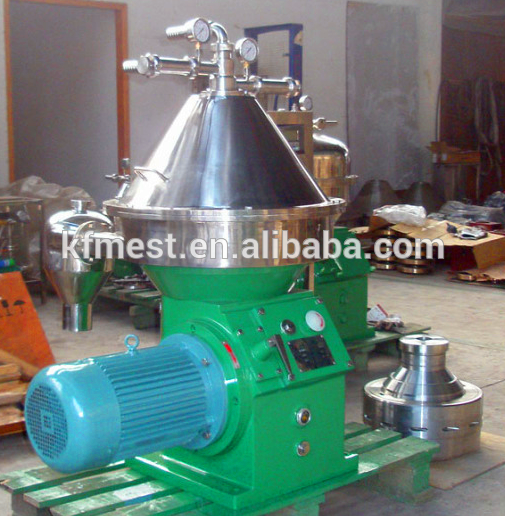

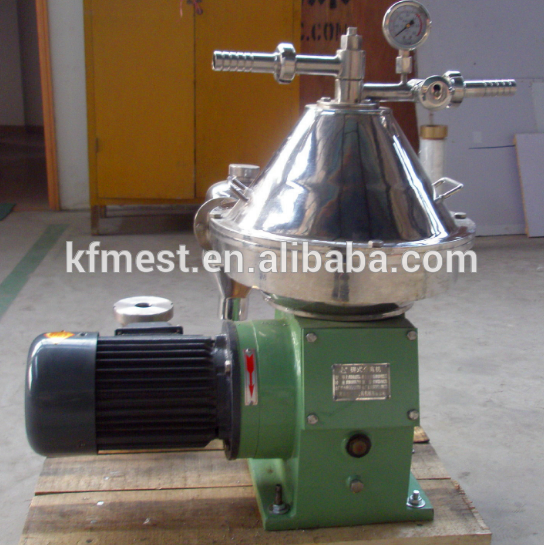

Automatic virgin coconut/soybean/peanut disc oil separator
Product Introduction Of Milk Cream Separator Machine :
The milk cream separator is the most important equipment in dairy industry. Mainly used in the oil and water separation,skim milk, butter, casein, cheese production, anhydrous butter production process, removing cream and foreign impurities in the milk. Similar materials can also be used for clarification and purification, such as coconut milk, fish oil, lemon oil.
All the parts that may contact the feedstock are made of stainless steel. Prevent material corrosion. The drum has undergone accurate dynamic balance check, and the power transmission adopts a helical gear to transmit power, which has stable speed increase, prevents overload, low vibration, safety and reliability, and simple operation.

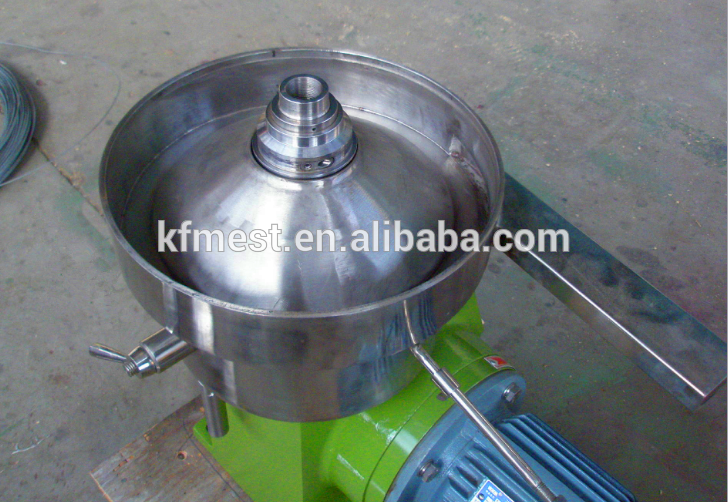

The disc separator is a vertical centrifuge, and the drum is mounted on the upper end of the vertical shaft, and is driven by a motor to rotate at a high speed through a transmission. The drum has a set of dish-shaped parts that are nested together. There is a small gap between the disc and the disc. The suspension (or emulsion) is added to the drum by a feed tube located in the center of the drum. When the suspension (or emulsion) passes through the gap between the discs, the solid particles (or droplets) settle to the disc under the action of a centrifuge to form a sediment (or liquid layer). The sediment slides along the surface of the disc to separate from the disc and accumulates in the portion of the drum having the largest diameter, and the separated liquid is discharged from the liquid outlet to the drum. The function of the disc is to shorten the settlement distance of the solid particles (or droplets) and enlarge the settlement area of the drum. The drum has greatly improved the productivity of the separator due to the installation of the disc. The solids accumulated in the drum are dismantled by the drum after the machine is shut down, or are discharged from the drum by the slag discharge machine without stopping the machine.
Technical Parameters Of Milk Cream Separator Machine :
Model | MST-SC350 | MST-SC400 | MST-SC500 |
Drum diameter | 350mm | 400mm | 500mm |
Drum speed | 6500r/min | 6500r/min | 5900r/min |
| Separation factor | 8500 | 8230 | 5500 |
Power | 7.5kw | 11kw | 18.5kw |
Temperature | 35-55℃ | ||
Fat in skim milk | 0.015~0.05% | ||
Dimension | 1200*750*1350mm | 1500*900*1500mm | 1800*1400*1150mm |
Weight | 900kg | 1000kg | 1500kg |
Our Service:
1.Each machine is manufactured by professional experienced staff.
2.Production process is under strict supervision and adopts China and world toppest production engineering.
3.The warranty time is two years. Quick-wear part is excluded.When warranty date expires, lifetime maintenance service is provided.
4.Inspected by the Inspection Institution of Bureau Veritas Certification.
5.100% QC inspection Before Shipment.
6.Best Quality & Best Service with Competitive price.
FAQ:
Q: How can I pay my order?
A: We accept T/T, Western Union , Alibaba Trade assurance. Especially Alibaba Trade assurance,. Which is guaranteed by Alibaba, it is more safe and effective. For those orders less than 500USD, we also can accept PayPal payment.
Q: Can you show how the machine works?
A: Certainly, we will send you the Operating video & instruction to you together with machines, to help you use the machines better.
Q: How can I know your machine works well?
A: Before delivery, we will test and adjust the machine working condition for you, then you can use directly when you get it.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate
