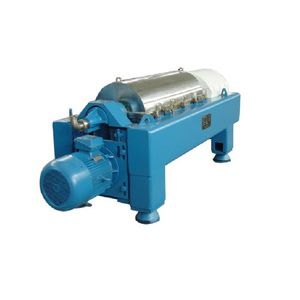

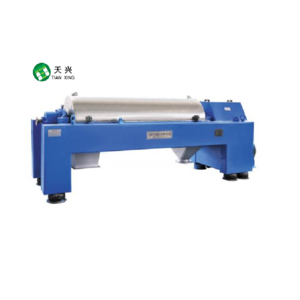

LW230 Decanter type Centrifuge Separator

Drum diameter : 230 mm

Aspect ratio(L/D) : 3.04

Drum speed : 4600r/min

Separation factor : 2723 G

Spiral speed difference : 2-25 r/min

Processing capacity : 0.5-2 m³/h

Motor power (main - auxiliary) : 11kw

Weight : 900 kg

Dimensions (L * W * H) : 1606*1120*668 mm

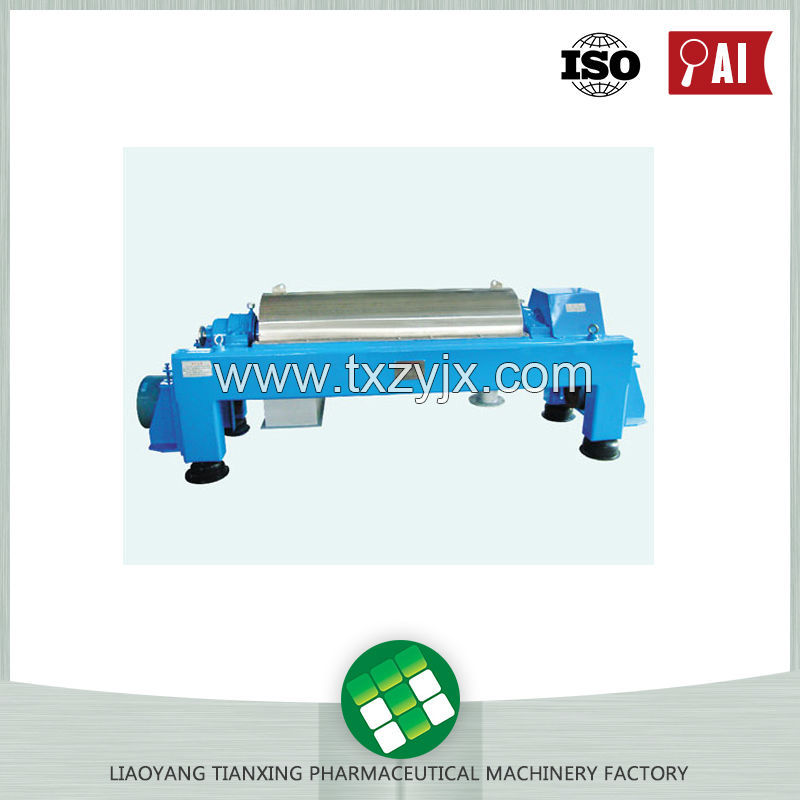

Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

    Tianxing Decanter Centrifuges are medium-low speed and large capacity centrifugal separators. When other separators are no longer feasible due to high proportions of solids in the suspension to be processed, decanters are used.

    The solid bowl decanter centrifuge consists of two horizontal concentric rotation elements contained in a stationary casing. The outer rotation bowl element is tapered so that the solids deschare from a smaller radius than liquor. The inner element is a hollow hub screw conveyor with blade tips shaped to fit closely to the contour of the bowl.

 Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

 Main features

1. Simple structure, easy operation and maintenance;
2. High separation factor, large production capacity;
3. Parts in contact with the material are made of stainless steel, in full compliance with GMP standards.

 Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

TYPICAL APPLICATIONS

BEVERAGE INDUSTRY

Fruit and vegetable juices

Coconut milk

FAT & OIL

 VFISH OIL

Animal fats

Olive oil

Avocado oil

Palm oil

Coconut oil

FOOD

Starch

Soybean protein

Peanut protein

Grain stillage

ENVIROMENTAL FIELD

Effluent Sludge

Domestic Sewage

Slaughterhouse

Blood Powder Treatment

Pigs and Cattle Manure

Biological Sludge

Paper Wastewater

Treatment

Dyeing Waste Water

Drilling Mud

Leather sludge

Electroplating liquid

CHEMICAL INDUSTRY

Calcium phosphate

Saleratus

Heavy alkai

Polyacrylonitrile

Gypsum

Ammonium

Borax

Pigment

Resin

Ammonium

Rubber additive

CHEMICAL INDUSTYR

PVC Dewatering

Lysine Dewatering

Ammonium sulfite

Calcarea carbonica

Koaliin

 Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

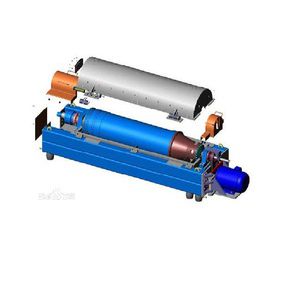

STRUCTURE AND WORKING PRINCLE

     The centrifuges we produce can clarify, dehydrate or fractionate suspensions containing solid-phase particles in the 0.002-3 mm range. Products according to the structural characteristics of sub-LWB and flow, LW counter-flow, LWS three-phase classification of three types and series, can be adapted to different materials in different conditions of separation.

Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

The centrifuges we produce can clarify, dehydrate or fractionate suspensions containing solid-phase particles in the 0.002-3 mm range. Products according to the structural characteristics of sub-LWB and flow, LW counter-flow, LWS three-phase classification of three types and series, can be adapted to different materials in different conditions of separation.

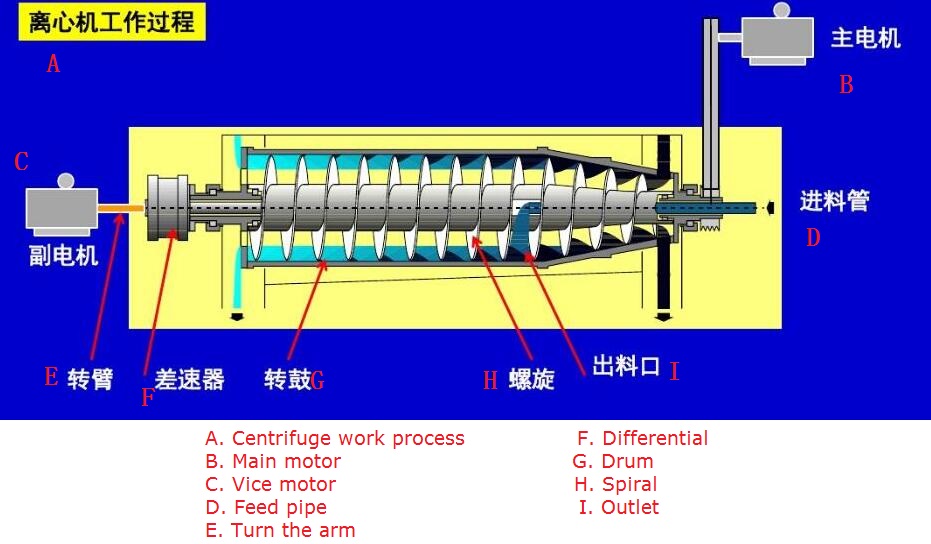

The machine from the drum, screw propeller, differential and power, the main part of the rack.

Separated liquid through the feed inlet into the high-speed rotation of the drum, under the action of the centrifugal force, the suspension in the drum to form a circular flow, the solid particles in the centrifugal force rapidly settling to the inner wall of the drum by Differential and the differential rotation of the drum from the screw conveyor, the screw conveyor to promote the sediment to the drum cone end of the drying zone, after the screw conveyor and sediment centrifugal reasoning bi-directional squeeze, so that the sediment is further squeezed Pressure dehydration, discharge from the small end of the drum slag discharge port. The separated light liquid is discharged through the overflow port.

Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

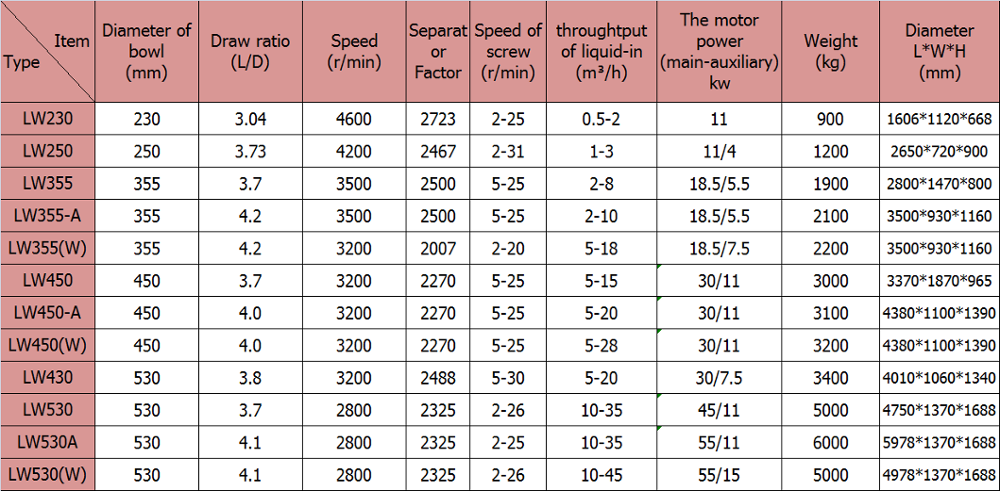

PARAMETERS

PROVIDING NOTE

1. The tubular centrifuge mostly adopts refrigeration equipment in bio-engineering. Our company wouldn’t provide refrigeration if you don’t account for it when you order.
2. The customer should indicate to select explosion-proof motor in advance if the customer must separate the flammable and explosible material.
3. The customer should indicate whether they need electric appliance controller. Usually the machine doesn’t need to set it up.
4. If the customers need ancillary facilities, such as feeding gantry, clean gantry etc, please note it in advance.
5. The spare parts of the high-speed operation machine should as the original factory, otherwise it may damage the machine and have accident.

Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

AFTER-SALES SERVICE

1) 7day*24hours Hot-line & Email Service
2) Your inquiry related to our products or prices will be replied in 24hours.
3) Well-trained and experienced staffs to answer all your questions in fluent English.
4) Abundant spare parts in stock are available to provide.
5) Our technicians could be dispatched for overseas service.
6) Your workers could get trained in our factory.

Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

Export packing

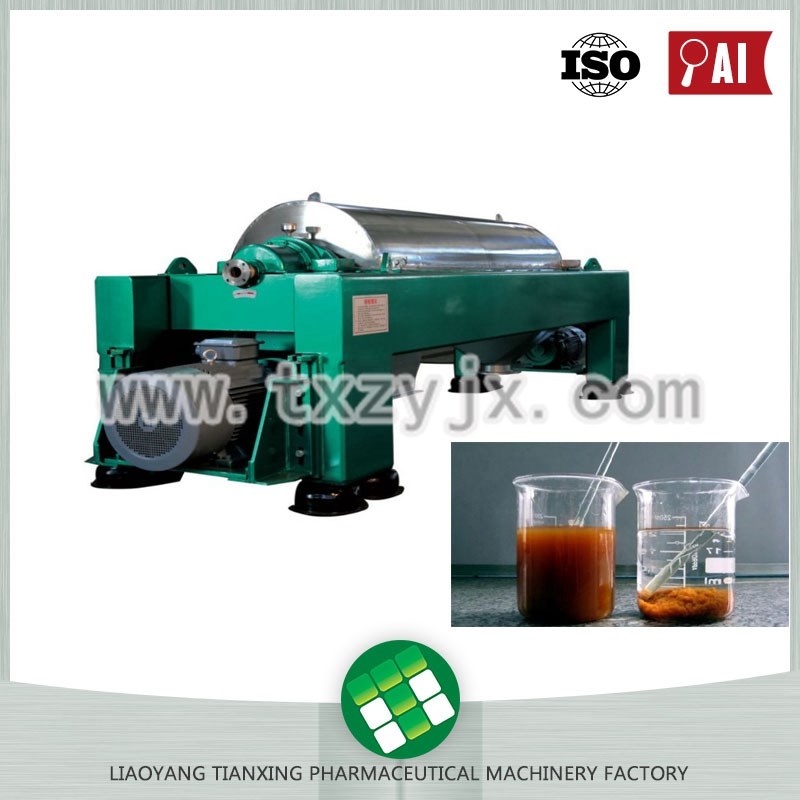

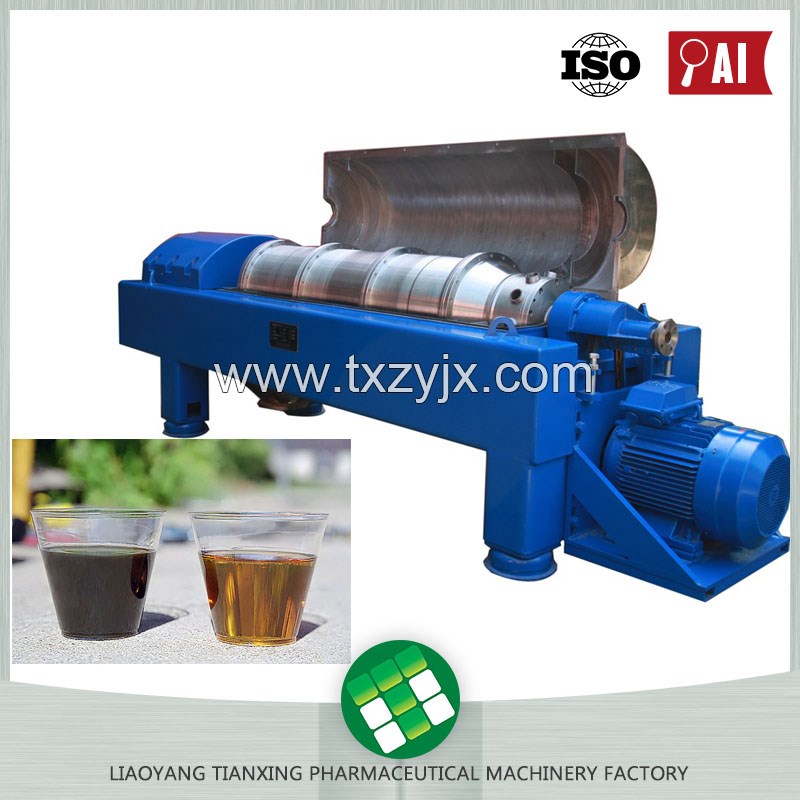

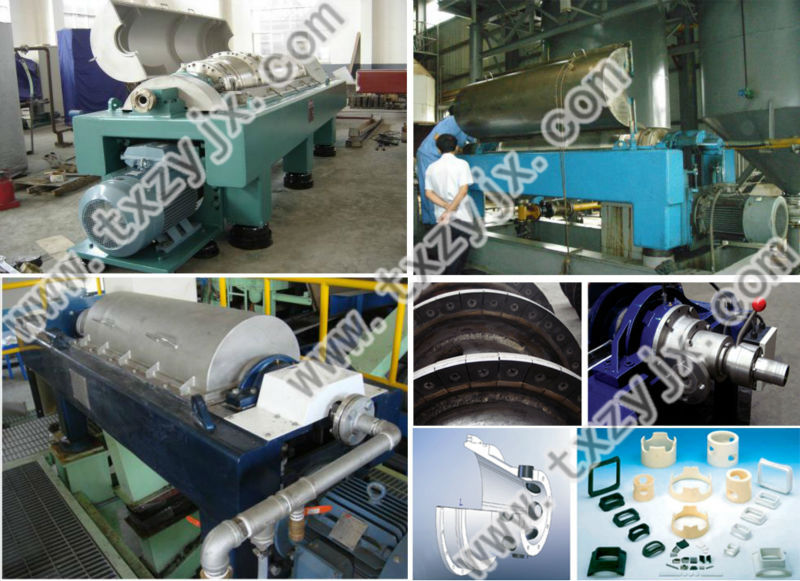

EFFECT PICTURE

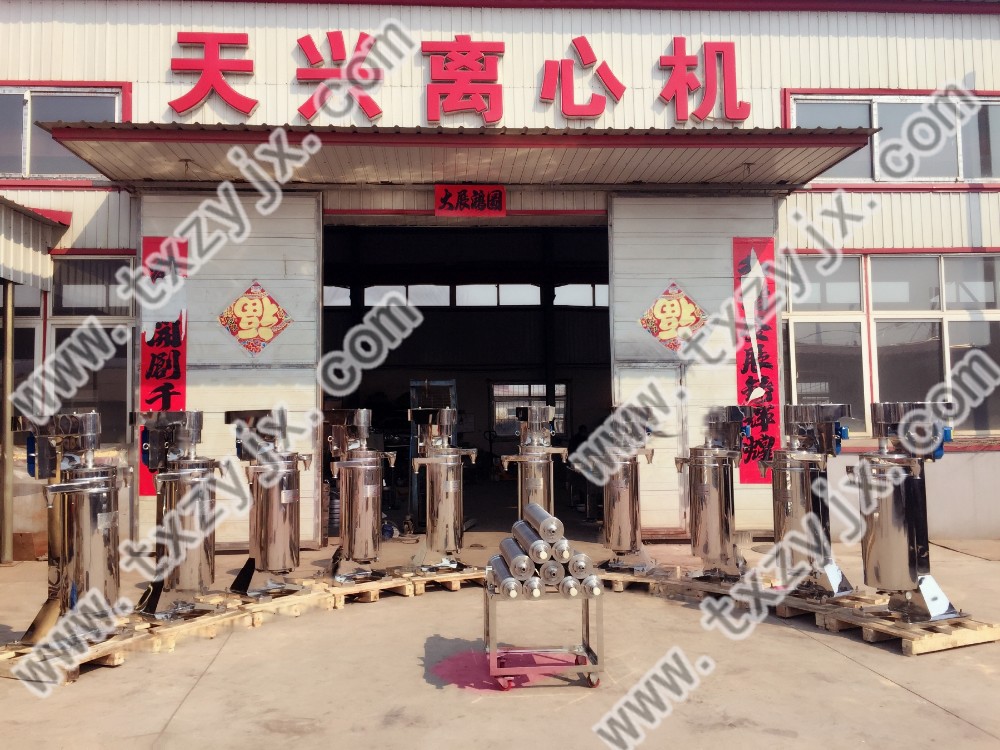

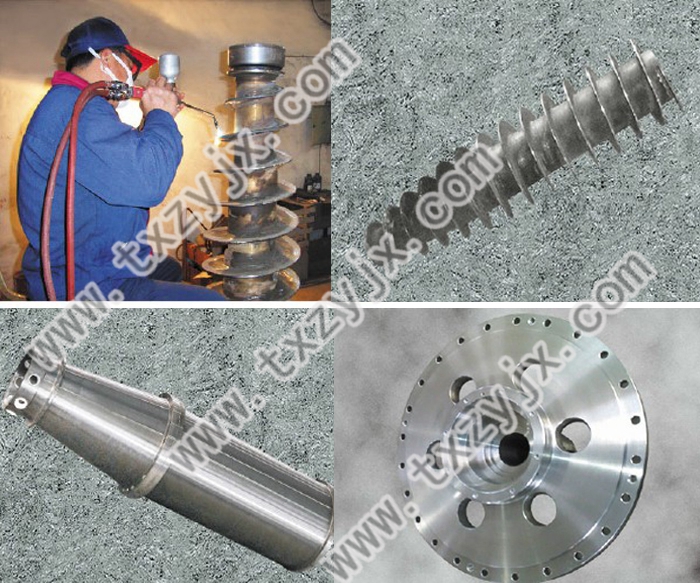

WORKSHOP AND WAREHOUSE

COMPANY INFO.

Liaoyang Tianxing Centrifuge Co., Ltd. is a technology-based enterprise that integrates scientific research, production and sales of centrifugal separation equipment. Our company has been engaged in the manufacture of centrifuges and separators for more than 10 years and is led by industry professionals. We have many senior engineers and a large number of technology development personnel, the engineers is SAC/TC382(Full name:  National Techinical Committee 382 on Separation of Standardization Administration of China.)With many years of industrial equipment production and installation commissioning experience in the separation machine production industry has great advantages.

.

My company successfully for many well-known Chinese enterprises to provide products and services, such as Huiyuan Juice, North China Pharmaceutical, Ya Bao Pharmaceutical, East donkey-hide gelatin, Zhengzhou Pharmaceutical Factory, Changchun longevity, etc., Product marketing in China, all over the industry. Colleagues My company has an independent right to operate import and export, tubular centrifuge and disc centrifuge series sold to Europe, the United States dozens of countries.

Rose oil separation rubber latex concentrate disc separator LW230 decanter centrifuge

CERTIFICATION

CONTACT US:

 Andy Zheng - Sales manager
Liaoyang Tianxing Centrifuge Co., Ltd
Mobile: +86-13604991760
WeChat: 13604991760
E-mail: andy(at)txzyjx.com
Http: www.txzyjx.com
Line phone: +86-419-3304406 3300180
Address: Shangwangjia Village, Wanshuitai Street, Zhenxing Road, Liaoyang, Liaoning, China 111000
