DHC400 Disc stack Westfalia Function Centrifuge separator

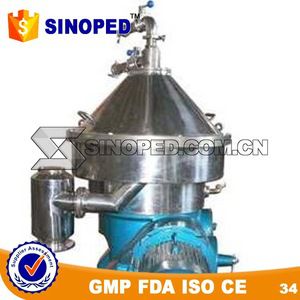

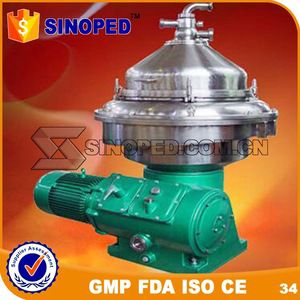

Machine photo :

Structure and working principle:

Disc centrifuge DHC400,the bowl will be driven by the main motor by the friction clutch and screw gear pair to rotate highly around the main shaft ,Stock liquid flows from the center charging inlet on the top to the bottom through the charging pipe. And then passes through discs seats to the bowl's space. The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall bu the centrifugal force and then under the control of the side bowl drained out of the residue outlet but liquid phase is fully settled down to the bowl wall by the centrifugal force field and then under the control of the slide bowl it is drained out of the residue outlet but liquid phase is fully settled down to the center along the discs to drain out by the centripetal pump.

Application:

DHC type disc separator is mainly applied in separation and clarification of liquid-solid and liquid-liquid-solid separation of solid substances between 1-15% and solid-plase granules with particle size larger than 0.5μm,such as :

(1)Many kinds of Oils:Oils,plant oils, animal oils, fish oils, base oils, and various fuel oils and lubricants,etc;

(2)Chemical industry:Dry cleaner solvents, galvanized liquid, aluminium sulfate solution, tar oil water mixture, PVC, pp, PE, the silver film processing and catalyst and magnet ore recovery

(3)Drink: Clarification of fruit juices and milk products Separation of beer

(4)Pharmaceutical: Extraction of vaccines, mycelium, glucose, insulin, antibiotic, vitamin.

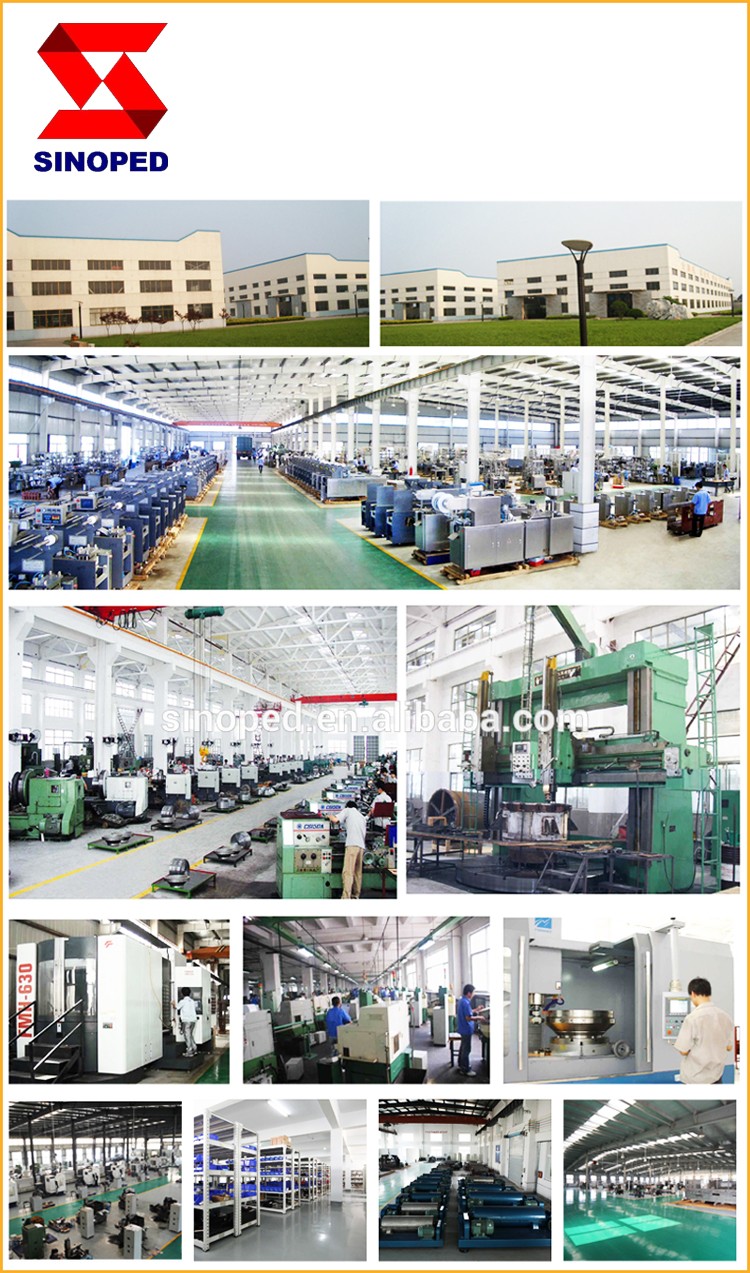

Our facttory
