| (Disc Centrifuge Separator) Model Item | DHC500B | |
| Bowl | Diameter(mm) | 470 |
| Rotate speed(r/min) | 5500 | |
| Separation factor | 9780 | |
| Throughput(m³/h) | 10 | |
| Motor power(kw) | 15 | |
| Size(L×W×H)(mm) | 1500×900×1500 | |
| Weight(kg) | 1200 |
Main Features and Application:
DHC500B Continuous Flow Disc Stack Centrifuge ,It can realize liquid-solid separation. it can be operated manually or automatically or remotely. DHC500B Continuous Flow Disc Stack Centrifuge is widely used for many industries, such as dairy, beverage, pharmacy, chemials, petrol, metallurgy and biology, etc. |
Structure and principle:
| The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged, controlled by the sliding bowl, out of the sediment outlet. |

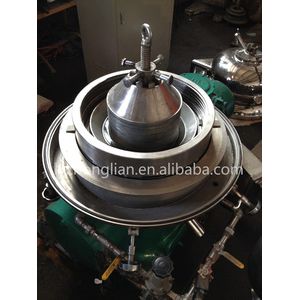

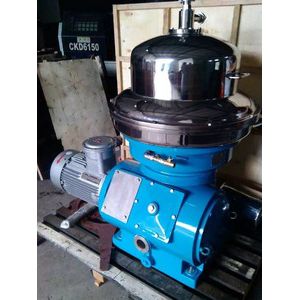

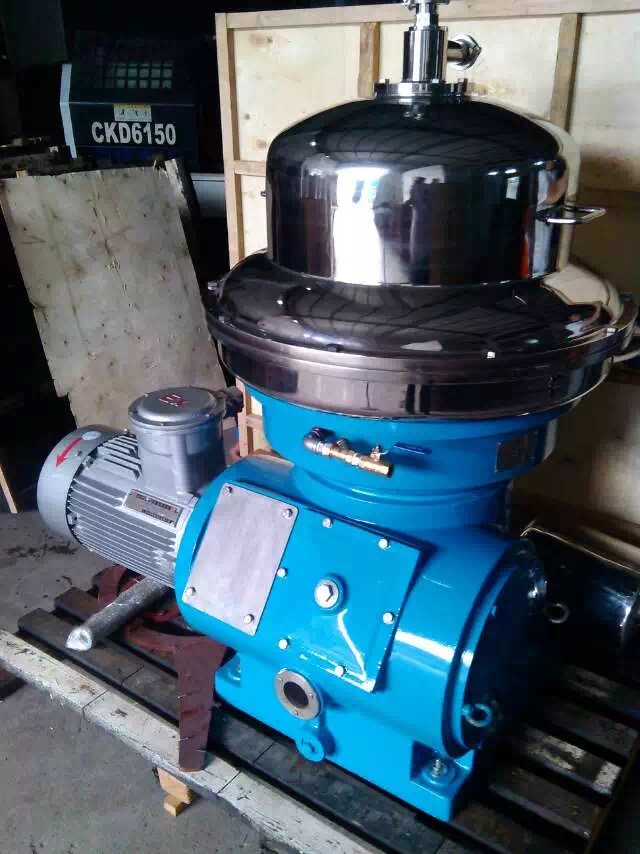

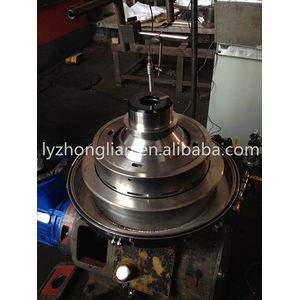

Product Pictures
| DHC500B Yeast Centrifuge Separator Packaging: Wooden Package |
| DHC500B Yeast Centrifuge Separator Shipping: By Sea, By Air and By Train |
| The Service of DHC500B Yeast Centrifuge Separator: |
Technical support and training support Engineers available to sevice machinery overseas |
we are the leading manufacturer in pharmaceutical machinery, centrifugal separator and packaging machine. We know how to design and manufacture reliable, durable and lasting machine for you. |
We treasure our reputation more than anything. We fulfill each promise. We offer the best we can. We want in return is your satisfaction, your acceptance and -- the friendship. |
We are 400 km from Dalian Port, convenient and time-saving for shipping goods. We are 120km from Shenyang Taoxian International Airport, convenient for you to visit us. |
a) 12 months warranty. Life time technical support service. b) Our engineer's door-to-door service is available at buyer/user's request at cheaper cost. c) Free replacement of spare parts within warranty period. d) Within 24 hours online responding to customer's questions. |
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. is belong to Zhonglian group,was established in 2001.The head office is located in Liaoyang city,Liaoning province.We are the professional manufacturing enterprises of pharmaceutical equipment and food equipment,mainly including separating equipment,filling equipment,packing equipment,etc.The company covers an area of ten thousand square meters,production workshop area of seven thousand square meters,own professional technical team and after-sales service team.
The company took the lead through the ISO9001:2008 International Quality System Certification in the same industry,and having finished SGS,CE,GMP certification standards,obtaining Utility Model Patent Certificate and many other awards.
Our company have built a long-term and stable cooperation relationship with many strong manufacturing enterprises in China,
can supply the whole project service for our customers with high quality equipment,competitive price,reliable superior service.At present,our successful project are coconut oil production line,liquid filling production line and packing production line and so on.
At present, our products have been exported to the United States,Mexico,New Zealand,South Korea,Australia,Turkey,Japan
,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,Iran,Venezuela,Peru,India,Russia,Denmark,Spain,Finland,Greece,Colombia,and so on more than 30 countries.
Our aim is saving your valuable time and cost,providing you with the workable solution!
Skype: Alps_Daniel
QQ: 233349141
What's APP: +86 15140990256
Exhibition
Certification

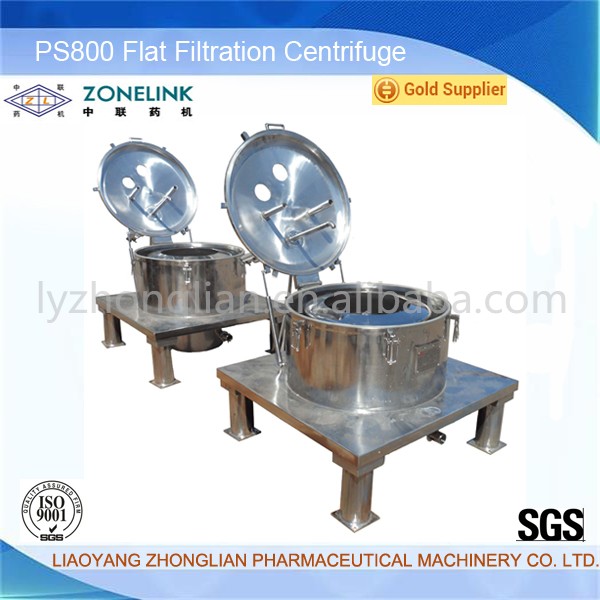

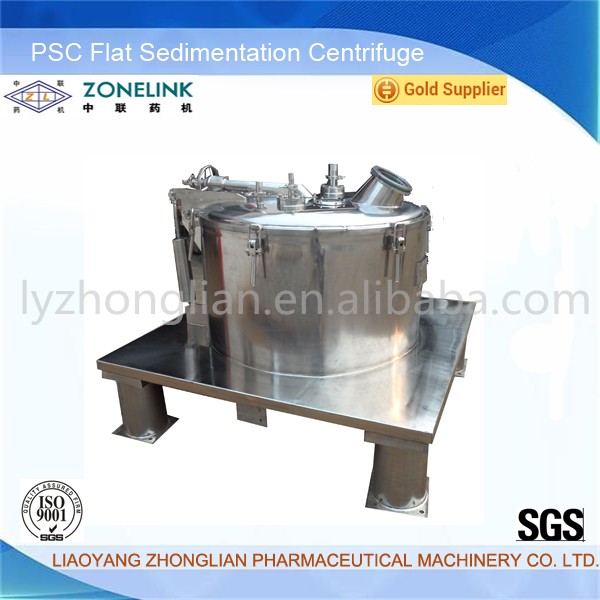

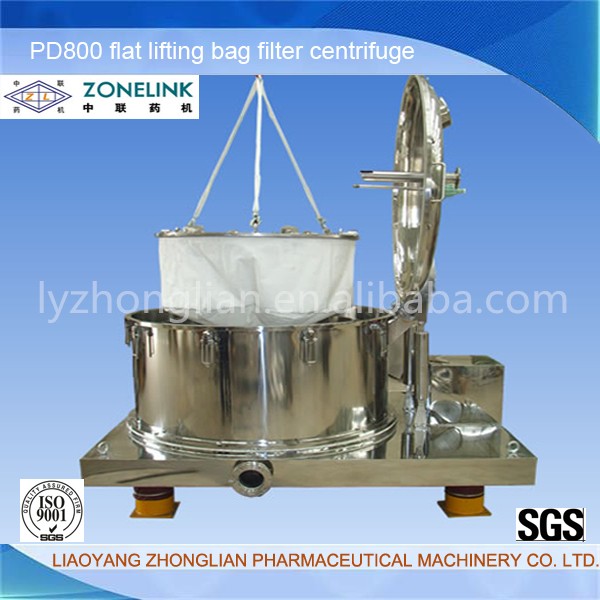

Other products
