LXF disc stack Centrifuge separator

PRIMARY PARAMETERS

Condition

New

Type

Centrifuge

Product Type

disc stack separator

Place of Origin

Chongqing, China (Mainland)

Brand Name

LUSHUN

Model Number

LXF1103Z

Voltage

380V

Power(W)

2.2kw

Weight

500kg

Dimension(L*W*H)

1250x900x1600mm

Certification

CE ISO

Warranty

12 Months

After-sales Service Provided

Engineers available to service machinery overseas

Diesel Treatment Capacity

1700lph

180CST Fuel Oil Treatment Capacity

800LPH

ZAE30/40 LUBE OIL Treatment Capacity

800lph

380CST Fuel Oil Treatment Capacity

600lph

Operating Mode

Automatic

Principle

Gravity

Sludge Removal Mode

Automatic

Control Model

PLC

Application

LXF disc stack Centrifuge separator

Customized

Accepted

DETAIL DESCRIPTION

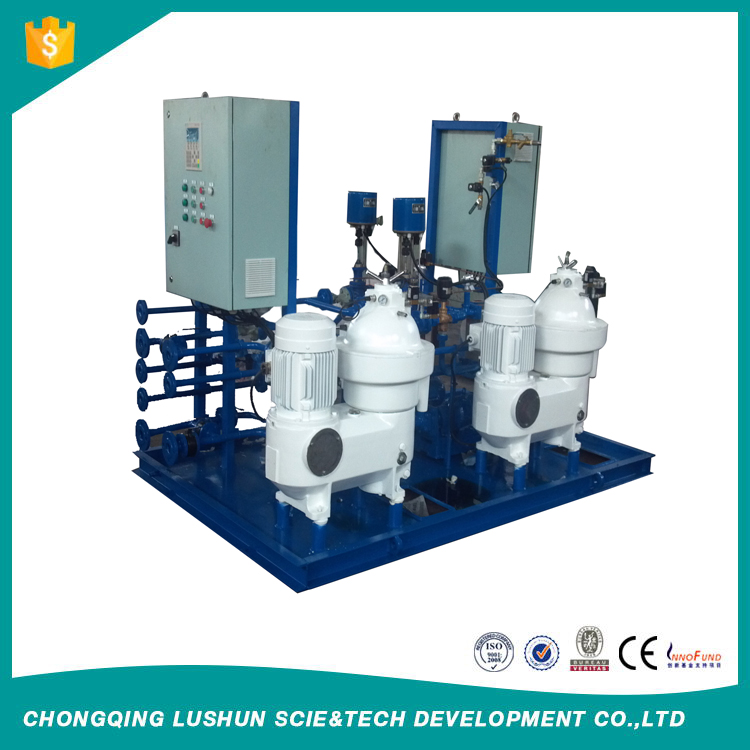

LXF disc stack Centrifuge separator

Application

1) LXF series are mainly applied to marine mineral oil and land mineral oil purification. At present, the main application of that includes

the treatment of marine diesel oil, marine heavy fuel oil, marine lubricating oil, land power plant lubricating oil, engine testing oil, gas

turbine oil and crude oil etc.

2) LXF machine can separate water and solid particles from oil. The purified oil and separated oil will be continuously pumped oil while

the sludge separated will be drained out regularly. The machine is composed of inlet and outlet device,

frame of machine, rotary drum,vertical shaft,shaft coupling and water distribution device.

Technical Specification

Model	Dimension (L×W×H)	Diesel Treatment Capacity(L/h)	180CST Fuel Oil Treatment Capacity(L/h)	380CST Fuel Oil Treatment Capacity(L/h)	SAE30/40 Lube Oil Treatment Capacity(L/h)	Operation Mode
LXF1207S	1050×1000×1550	600	/	/	800	Manual
LXF1104S	1250×900×1600	4000	/	/	2000
LXF1103Z	1250×900×1600	1700	800	600	800	Automatic
LXF1205Z	1250×1000×1700	2200	1000	800	1000
LXF1215Z	1510×1100×1700	3000	1500	1200	1500
LXF1105Z	1450×1200×1600	3500	2000	1500	2000
LXF1315Z	1520×1200×1700	4200	2300	1800	2300
LXF1217Z	1450×1200×1600	5500	3000	2300	3000
LXF1317Z	1650×1500×1800	8000	4500	3000	4000
LXF1417Z	1650×1500×1800	12000	6000	4000	5000
