Wet Grinding Machine Nano grade sand mill - PHN25
Product Description
| 1 | Design Principles | |
| The new dimension in wet ultrafine grinding and dispersion for Nano performance. | ||
| PHN mill is the horizontal agitator peg mill for highest grinding intensity input and highest product throughput rates. | ||
| The machine frame is wholly casted for a smooth running. | ||
| The grinding tank with larger proportion of diameter/length and the peg system give the highest grinding intensity. | ||
| The grinding tank, agitator shaft and product outlet are water cooled to avoid overheating of the product. | ||
| The working efficiency of the PHN peg mill is around 3 times of the PHE disk mill with the same grinding chamber volume. | ||
| The finest zirconium oxide bead 0.05mm is possible for real nano grinding. | ||
| 2 | PHN Innovation in Nano Wet Grinding Technology. OCS - Open Canister Separation System. | |
| The rotor-slotted pipe separation system of PHN peg mill,provides high energy input in comparison to PHE with the same grinding chamber volume,which guarantees high efficient grinding process and high product throughput capacity.The slotted pipe is within the agitator shaft and there is almost no grinding beads around the slotted pipe since teh centrifugal force moves beads out of the agitator shaft. The product exit is removed to close to teh lower part of the flange to avoid possible block of the product because of the slurry deposition. | ||
| Technical Data - PHN Series | |||||||||
| Model | Laboratory | Production | |||||||
| Specification | PHN 0.3 | PHN 0.5 | PHN 2 | PHN 6 | PHN 10 | PHN 25 | PHN 60 | PHN 150 | PHN 300 |
| Chamber Volume (L) | 0.45 | 0.7 | 4 | 10 | 18.2 | 46 | 107 | 285 | 488 |
| Effective Volume (L) | 0.35 | 0.5 | 2.3 | 6 | 13 | 28 | 68 | 151 | 280 |
| Batch Size (L) | 0.25-1 | 3-10 | 10-100 | 20-200 | 100-1000 | 500-2000 | >2000 | >4000 | 78000 |
| Rotation Speed (rmp/min) | 200-3000 | 600-2500 | 600-2500 | 600-2500 | 700-1300 | 700-1000 | 500-600 | 200-480 | 150-370 |
| Production Capacity (Kg/h) | 10 | 20-59 | 30-110 | 100-500 | 250-1000 | 500-2500 | 1000-6000 | 2000-15000 | 3000-35800 |
| Motor Power (Kw) | 0.75 | 4-5.5 | 5.5-7.5 | 15-18.5 | 22-37 | 37-45 | 75-90 | 160-200 | 260-300 |
| Length (mm) | 320 | 790 | 1122 | 1286 | 1220 | 1538 | 2735 | 2915 | 3280 |
| Width (mm) | 360 | 651 | 972 | 932 | 1065 | 1150 | 1252 | 1220 | 1480 |
| Height (mm) | 347 | 1150 | 1260 | 1638 | 1929 | 2042 | 1850 | 2620 | 2580 |
| Weight (Kg) | 75 | 208 | 400 | 602 | 1302 | 2009 | 3508 | 6890 | 7580 |

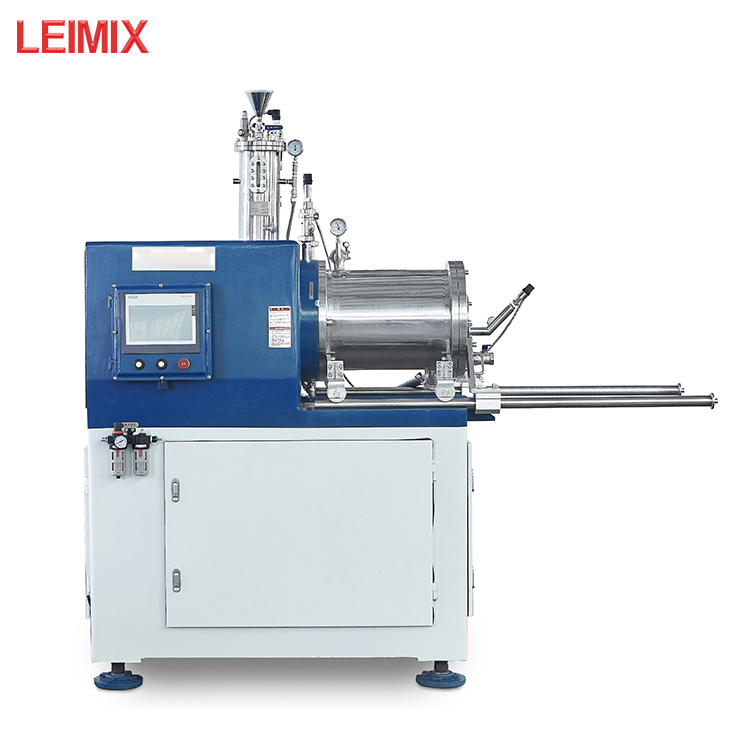

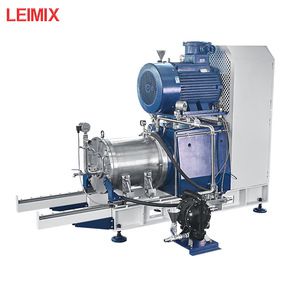

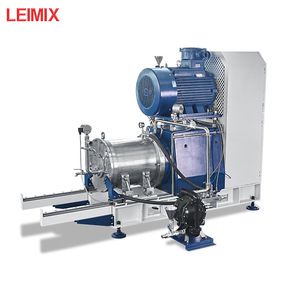

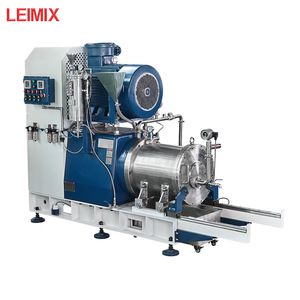

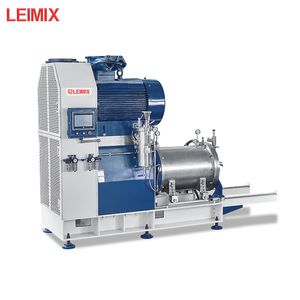

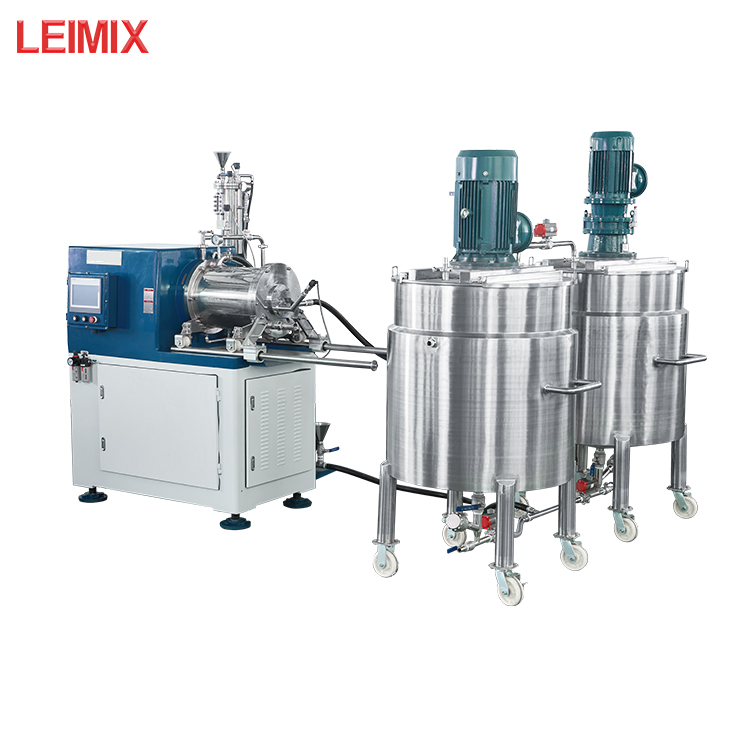

Product Pictures
Application

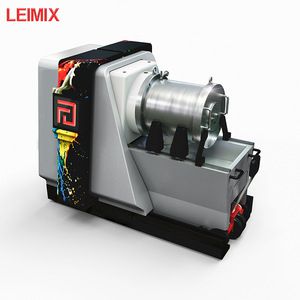

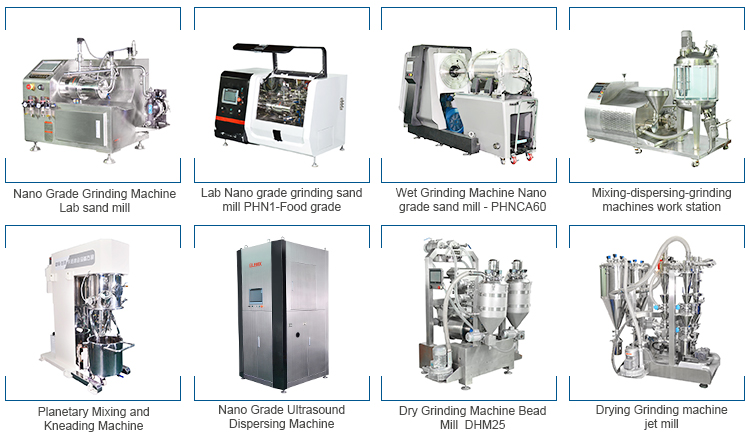

Hot Sales

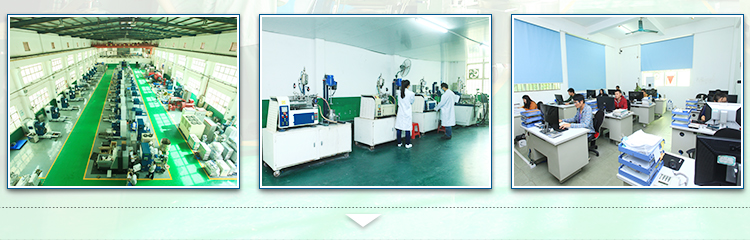

Why LEIMIX
Our Services
| Pre-sale Service | ||||||||||
| Know well about clinets situation and their demands by communication | ||||||||||
| Provide our suggestion based on our 10 years experience. | ||||||||||
| Provide experiment service and testing report. | ||||||||||
| Provide the suitable machines and solutions based on clinet demands and product situation. | ||||||||||
| Sale Service | ||||||||||
| Communicate all details about the order with clinets, keep in touch with clinets,response in time. | ||||||||||
| Following customer's order in time, about production,packaging ,delivery ,documents | ||||||||||
| After-sale Service | ||||||||||
| Help clients about the installation and debugging | ||||||||||
| Help clients set up the PLC systems | ||||||||||
| Help clients to know how to use our machines efficiently | ||||||||||
| Help clients to know how to maintain the machines | ||||||||||
| Our wear parts of the machines are available at any time when clients need. |
