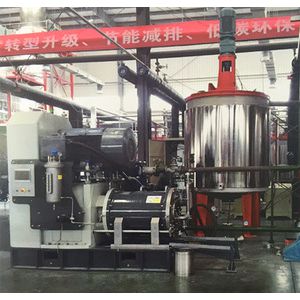

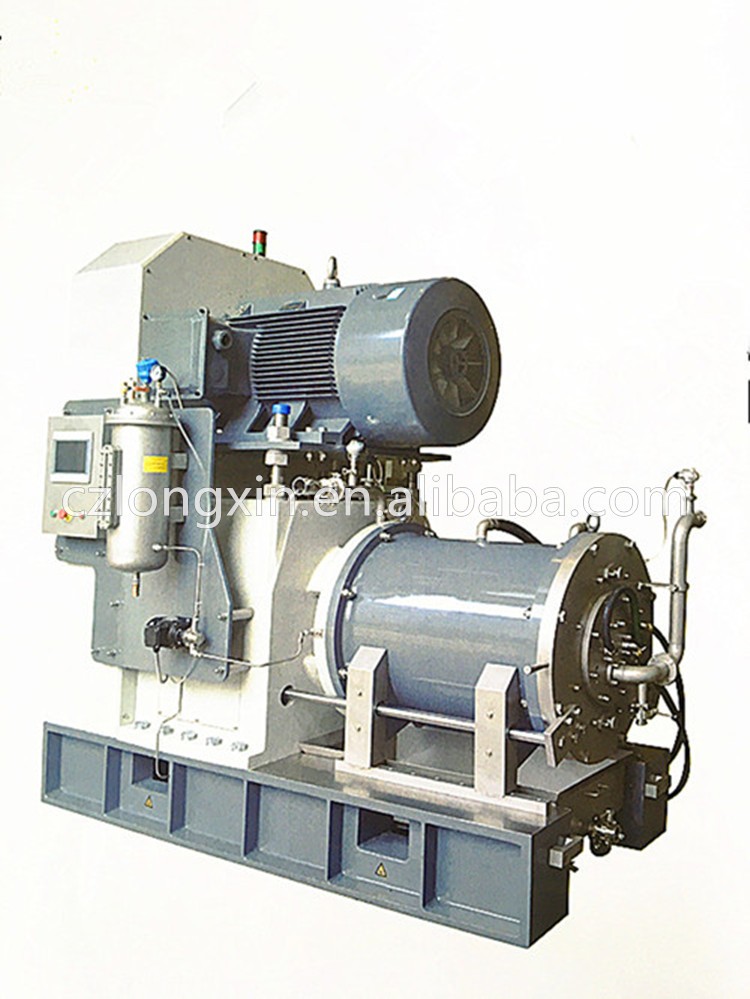

Longxin Hot Sales Bead Grinding Machine for sale, Bead Mill, Pin Mill
WSP series fast flow bead mill has special rotor structure design, both the number, size and installion position which are designed according to the vortex fluid machanics to reach the maximum ratio of grinding energy and to improve the grinding efficiency, which make the material reach nano-meter. The fineness of material grinded by WSP series fast flow bead mill could be less than 50nm.
Longxin Hot Sales Bead Grinding Machine for sale, Bead Mill, Pin Mill

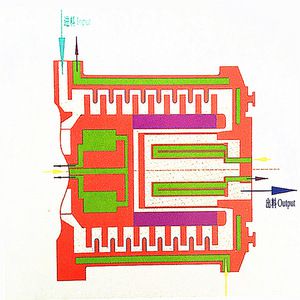

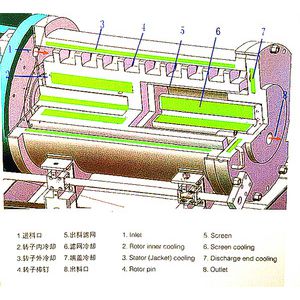

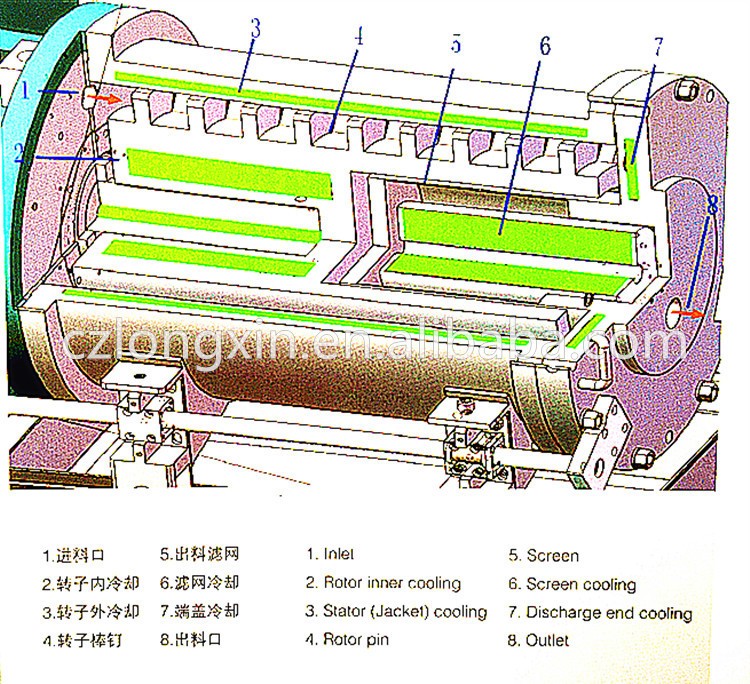

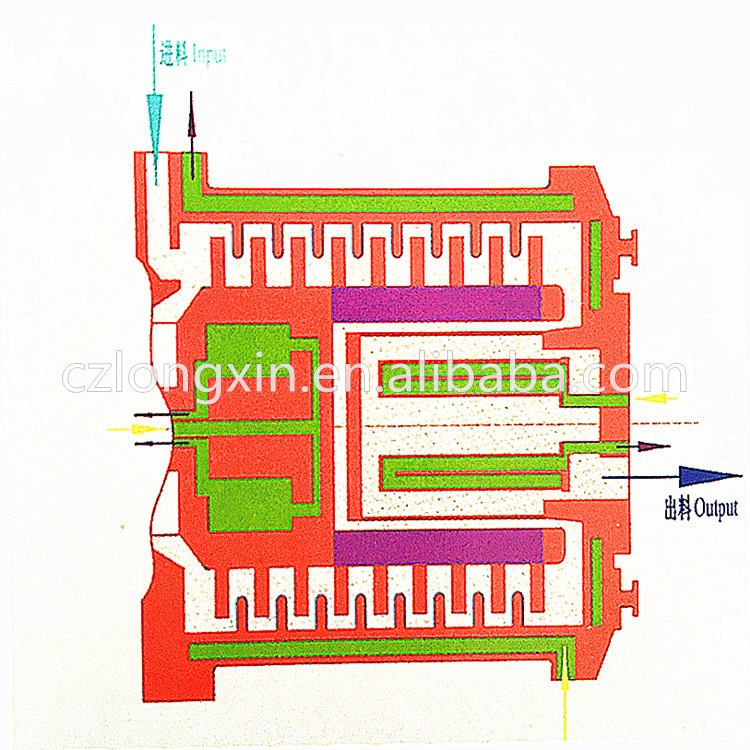

Materials are fed from the top inlet to the grinding chamber by feeding pump and distributes evenly with the rotation of the rotor, the eddy current works on the materials for completely pre-dispersion under the action of centrifugal force of rotor and stater. The rotor and stater have strong impact on the grinding media and meanwhile the grinding media work on the materials.The materiald stay in the grinding chamber after certain grinding time, resulting in a very narrow particle size distribution. Because of different density, grinding media return to the grinding chamber under the effect of feeding pump pressure and centrifugal force, while the materials flow out through the screen separator on the opposite direction of the centrifugal force, this is a re-circulation..
This is the technical parameters of WSP series fast flow bead mill.
| Model | WSP-0.5 | WSP-6 | WSP-10 | WSP-25 | WSP-60 | WSP-150 |
| Volume(L) | 0.5 | 6 | 10 | 25 | 60 | 146 |
| Beads(mm) | 0.1-2.0 | 0.3-2.0 | 0.3-2.0 | 0.3-2.0 | 0.3-2.0 | 0.3-2.0 |
| Batch(L) | 1-30 | 50-150 | 100-1000 | 500-2000 | >1000 | >2000 |
| Motor(KW) | 3 | 15 | 22 | 37 | 75-90 | 160-250 |
| Speed(rpm) | 60-2800 | 60-1500 | 700-1300 | 700-1000 | 500-600 | 200-480 |
| Finess(nm) | D90<100 | D90<100 | D90<100 | D90<100 | D90<100 | D90<100 |
| Length(mm) | 600 | 1150 | 1500 | 1900 | 2200 | 2900 |
| Width(mm) | 400 | 700 | 850 | 950 | 1000 | 1220 |
| Height(mm) | 500 | 1200 | 1600 | 1850 | 2300 | 2600 |
| Weight(kg) | 100 | 600 | 1300 | 2200 | 3000 | 8000 |

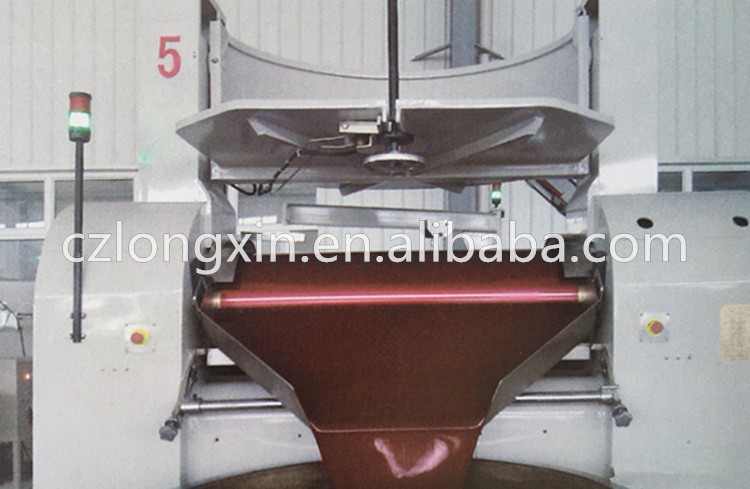

Our company pays much attention to all details of our equipments such as hydraulic three roller mill, improves three roller mill, manual three roller mill, beads mill ,sand mill, etc.
WSP series fast flow bead mill is widely used in nano material wet grinding processing. It is widely used in nano new material such as battery industry, digital jet printing ink, alumina oxide, titanium pigment, pearl powder, etc.
1. Packaging Detail
Outside package: Standard export wooden cases.
Inner package: Moisture-proof plastic film.
2. Payment terms
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment.
3. Shipment
We usually take FOB,but we also accept CIF,CNF.
Changzhou Longxin Machinery Co.,Ltd owns various honorary status, including high-tech enterprise, national special ultra-fine powder technology researching center, micro-nano material preparation engineered and industrialized testing site, and vice chairman unit of Chinese Ink Association. Longxin machines are with certifications of TüV, BV, CE and ISO9001:2008.
In recent years, our company has supplied nearly 10000 sets of equipment to the customers in the industries of coating, ink, sealant and non-metalic mineral processing all over the world. Good performance and high quality, reasonable prices, high quality service have enjoyed high reputation in the users. All customers having good market at home and abroad have ordered the equipment from us. Large quantity of pruducts are exported to the United States, Spain, Russia, Egypt, Namibia, Tunis, Japan, South Korea and other countries and regions.

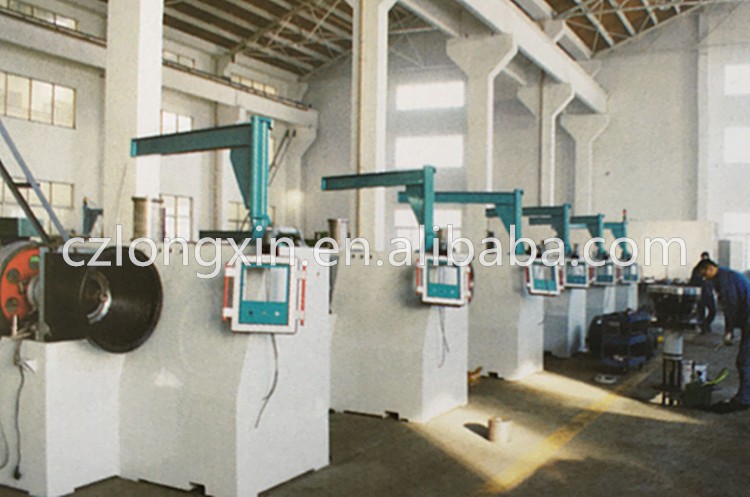

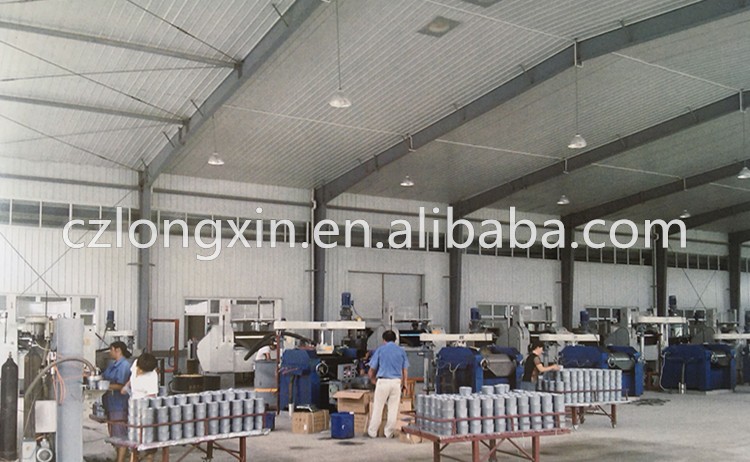

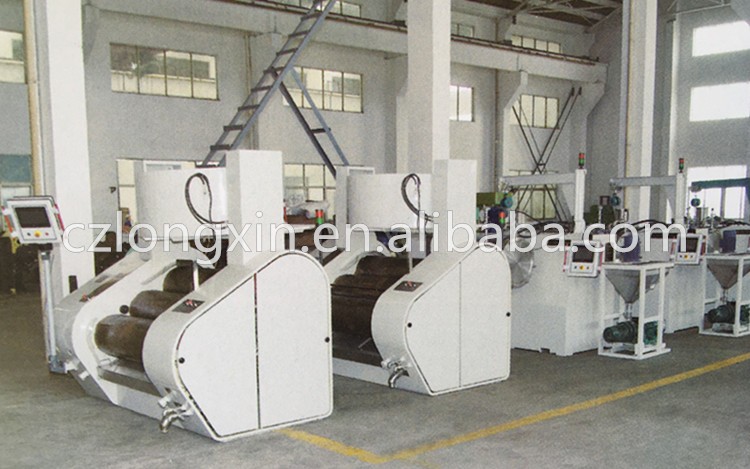

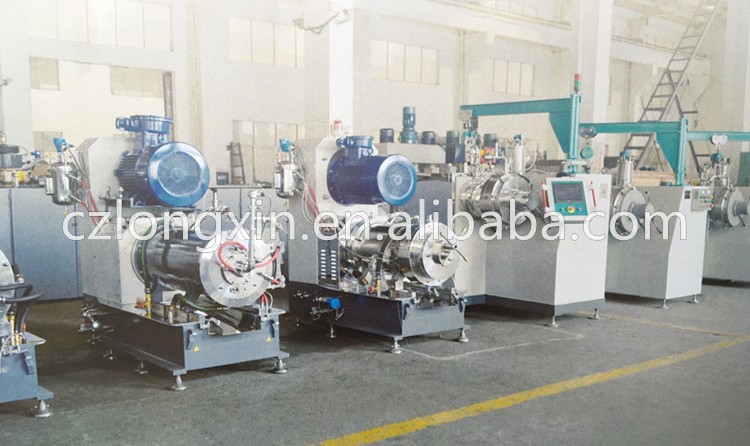

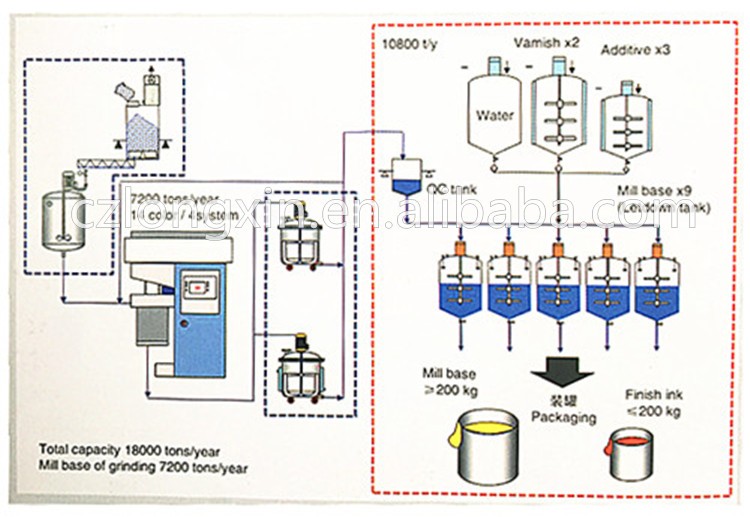

Field of production for equipments(manual three roller mills, hydraulic three roller mill, bead mills, sand mills, etc)

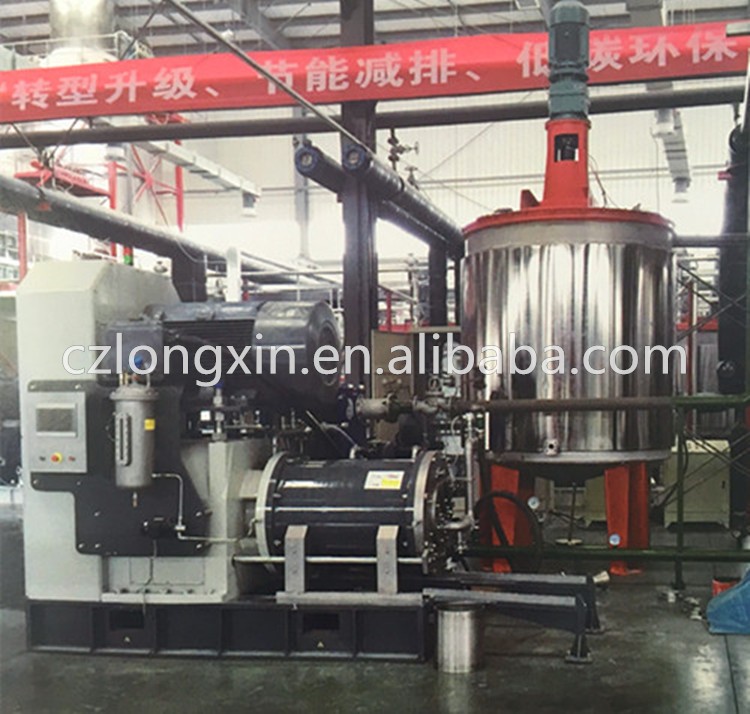

Field of use for product
Our customers
Our company has perfect after-service system:
1.Before puechase our product, we will select a suitable model for you,offering you a reasonable solution. After delivery, we will arrange commissioning &maintenance. We will teach you the processing of handling the machine, help ypu reduce the unexpected risk.
2.Make analysis and treatment of customer’s information(including guidance, part posting and servicemen’s visit and reply customer within 8 hours normally.
3.In case customer cannot use the machine regularly and the doorstep maintenance is needed, we’ll send service man to the site within 24 hours and deal with trouble quickly. The company shall trace for the quality of service and make return visit to customer.
4.Make summary and filling of after-sale service information once every week and feedback to concerned department in time.
5.Make supervision and examination of service quality and attitude of servicemen.
