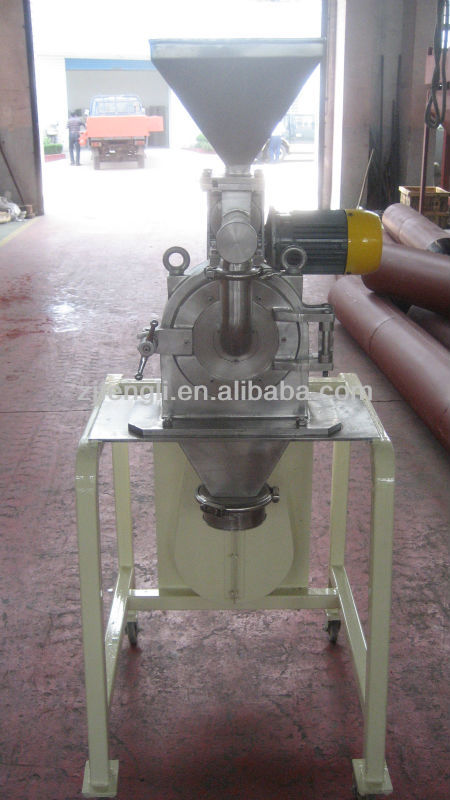

MTM-200 Pin Mill Sucrose Pulverizer

 1.Description

MTM series pin mill is very suitable for sticky and heat-sensitive material ,for it’s special structure. It is a product from German Hober technology.

2.Application

n Foodstuff:sugar, rice, corn, starch, oat, flour, soya, pea, spice, cocoa, potato powder, salt, milk powder, onion, coffee, dextrose etc

n Chemical: pigment, alumina, ferric oxide, copper, graphite etc

n lastic:polythene, PVC, rubber, bakelite, epoxy resin etc

n Construction material:limestone, gypsum, fluorite, mica, kaolin clay, straw, shell etc

n edicine:roots, bark, leaves , herb, bone powder etc

3.Principle and structure

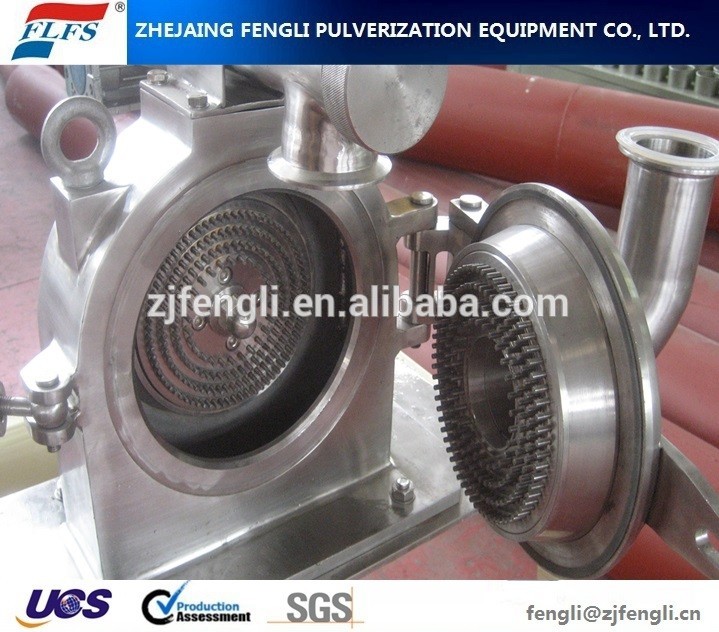

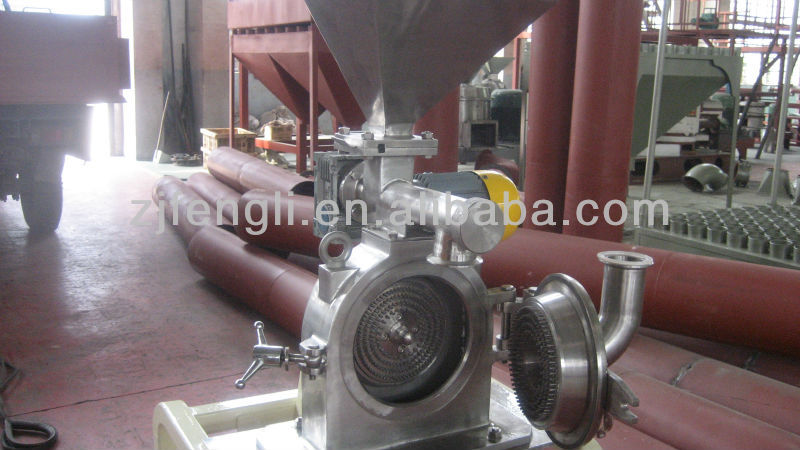

It’s main parts are housing, door, rotary disc, static disc, shaft, air sealing.( see attached drawing) There is a rubber ring between door and housing for prevent power out.

It’s milling zone is consist of rotary pins and static pins. Particles hit these pins and get split. Particles can get abundant times of hit because there are several rows of pins. The rotary pins can suck airs to reduce the heat generated by friction. There is a air sealing device to protect bearing keep clean.

4.Main Parameters
