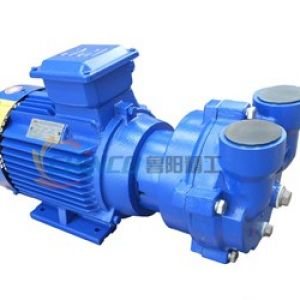

2BV Series vacuum pump

PRIMARY PARAMETERS

Brand name

JINGGONG

Application

Vacuum filtration, Vacuum distillation, Vacuum disinfection, Polyester production, Vacuum packing, Food drying, Vacuum water diversion, Vacuum immersion, Plastic molding, liquid separating from gas, Operating room and medical sputum suction

Process input material

Process output material

Place of origin

China

Equipment material

SS & CS

Power (kW)

Depends

Weight (kg)

Depends

Outer dimension (mm)

Depends

Warranty

One year

Delivery

30 days

Main spare parts

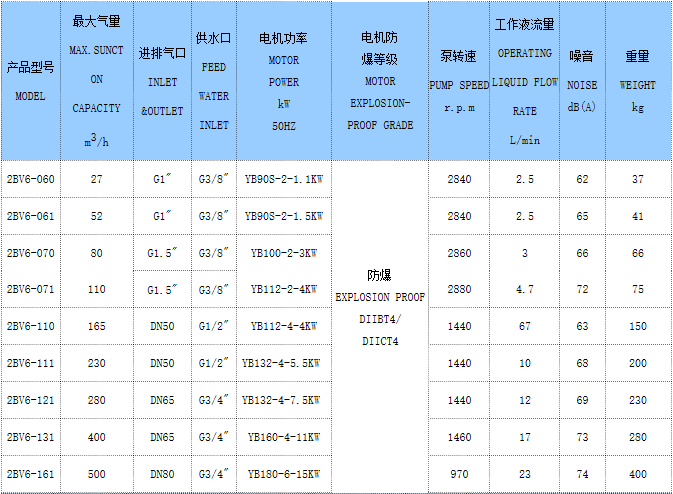

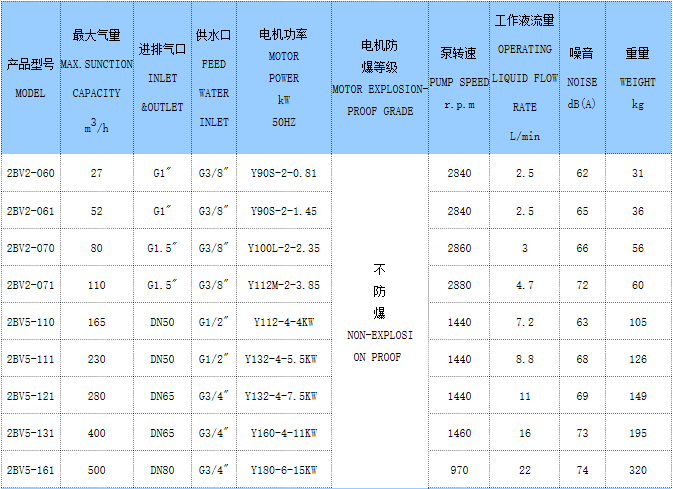

MODEL SPECIFICATIONS

Model	2BV2-060	2BV2-061	2BV2-070	2BV2-071	2BV5-110	2BV5-111	2BV5-121	2BV5-131	2BV5-161	2BV6-060	2BV6-061	2BV6-070	2BV6-071	2BV6-110	2BV6-111	2BV6-121	2BV6-131	2BV6-161
Max. sunction capacity(m3/h)	27	52	80	110	165	230	280	400	500	27	52	80	110	165	230	280	400	500
Inlet & outlet	G1"	G1"	G1.5"	G1.5"	DN50	DN50	DN65	DN65	DN80	G1"	G1"	G1.5"	G1.5"	DN50	DN50	DN65	DN65	DN80
Feed water inlet	G3/8"	G3/8"	G3/8"	G3/8"	G1/8"	G1/2"	G3/4"	G3/4"	G3/4"	G3/8"	G3/8"	G3/8"	G3/8"	G1/2"	G1/2"	G3/4"	G3/4"	G3/4"
Motor power(kw 50Hz)	Y90S-2-0.81	Y90S-2-1.45	Y100L-2-2.35	Y112M-2-3.85	Y112-4-4	Y132-4-5.5	Y132-4-7.5	Y160-4-11	Y180-6-15	YB90S-2-1.1	YB90S-2-1.5	YB100-2-3	YB112-2-4	YB112-4-4	YB132-4-5.5	YB132-4-7.5	YB160-4-11	YB180-6-15
Motor explosion-proof grade	NO	NO	NO	NO	NO	NO	NO	NO	NO	DIIBT4/DIICT4	DIIBT4/DIICT4	DIIBT4/DIICT4	DIIBT4/DIICT4	DIIBT4/DIICT4	DIIBT4/DIICT4	DIIBT4/DIICT4	DIIBT4/DIICT4	DIIBT4/DIICT4
Pump speed(rpm)	2840	2840	2860	2880	1440	1440	1440	1460	970	2840	2840	2860	2880	1440	1440	1440	1460	970
Operating liquid flow rate(L/min)	2.5	2.5	3	4.7	7.2	8.8	11	16	22	2.5	2.5	3	4.7	67	10	12	17	23
Noise(dB)	62	65	66	72	63	68	69	73	74	62	65	66	72	63	68	69	73	74
Weight(kg)	31	36	56	60	105	126	149	195	320	37	41	66	75	150	200	230	280	400

DETAIL DESCRIPTION

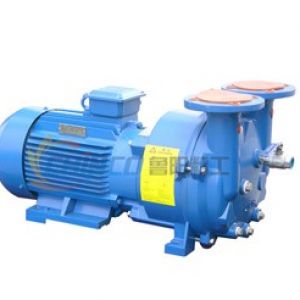

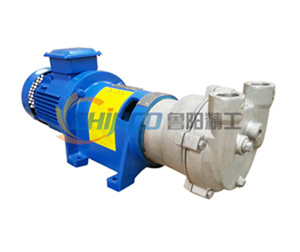

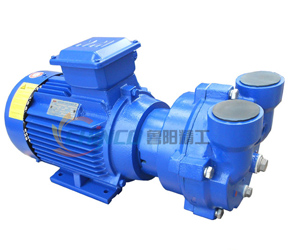

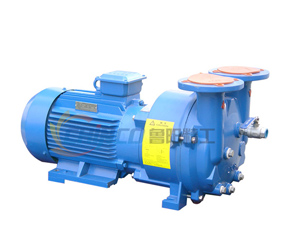

2BV Series vacuum pump

Overview：

2BV series water ring vacuum pumps are suitable for pumping the gases and steam. Its suction pressure can reach 33mbar (abs) (i.e. 97 % vacuum degree). If the transformer oil is used as the operating liquid, these pumps are called oil ring vacuum pump and the suction pressure can reach 6.7mbar (abs) (i.e. 99 % vacuum degree). So the oil ring vacuum pumps can replace the reciprocated vacuum pumps completely. When the liquid ring vacuum pumps work under the condition near the limited vacuum for a long time, it is necessary to couple with the cavitation protection pipe in order to get rid of the screaming and protect the pump.When the 2BV series are used as compressor, it should pay attention to the discharge pressure and select suitable motor power as the increase of the discharge pressure will increase the 2BV pump power.

Structure and features:

The direct connection of the motor and pump with the same shaft saves space and is convenient to install.

Adopting mechanical seal as standard equipment, which eliminates leakage and makes the maintenance convenient.

Stable working and the noise can low to 62 decibel.

Unique design of flexible discharge port will not cause over compression which therefore, makes sure the best efficiency of 2BV in the performance scope.

All the 2BV series have the connection port of the cavitation protection pipe. E.g. when the pump work under limited pressure, opening the connection port of the cavitation protection pipe or connecting with the separator can eliminate the cavitation sound under the condition that the suction effect can be made sure at utmost and protect the pump.

All the roughs of all the models in the 2BV series adopt precise casting( stainless steel and normal material).

All the components are processed precisely by the CNC lathe, and the mechanical seal adopts imported johncrane or Dalian Bergman to ensure the precision.

All adopt NTN or NSK imported bearing.

We decide to make the 2BV series to be the name-brand of Shandong Province in three years on the basis of advancing comprehensive technology by perfecting our management and enhancing quality control ability.

2BV series liquid ring pump can be combined with ZJ seires Roots pump to form JZJ2B Roots package unit. The ultimate vacuum can be 5pa and can be coupled with separator and heat exchanger to form 2BV closed recycle unit, which improve the safety and reliability of the system through one open one prepared, more open more prepared form.

2BV-F series liquid ring vacuum pump/compressor is mainly applied to pump explosive gas, and operates in all the flammable and explosive environment. Its performance parameters are the same as relevant models in 2BV-B, 2BV-E series.

The main application area of the 2BV liquid ring vacuum pump：
