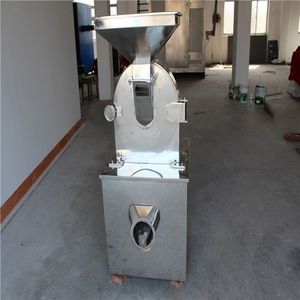

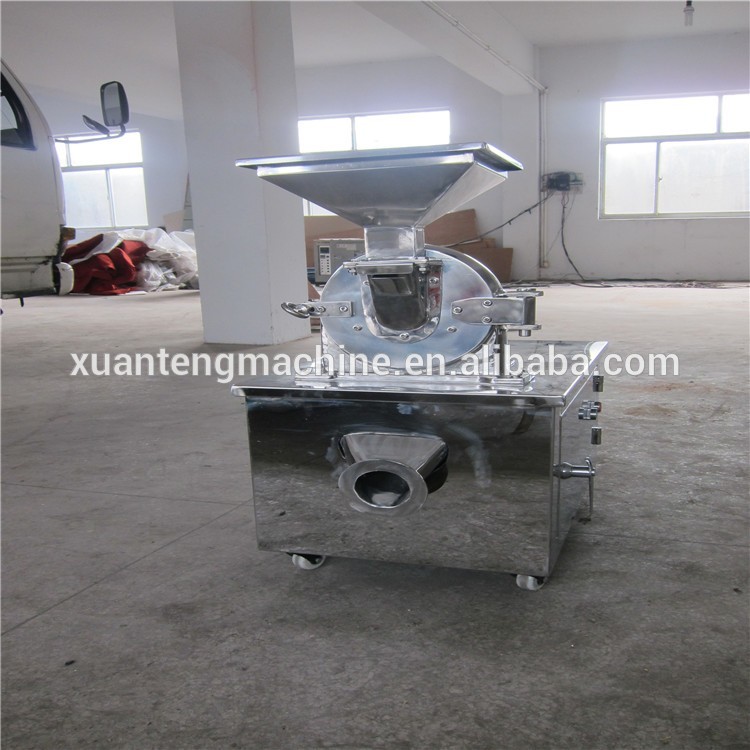

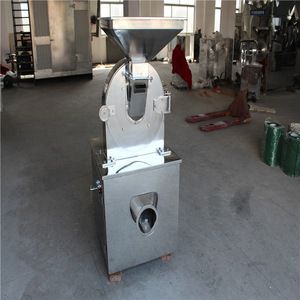

water cooled pin mill
Application
This machine is a Multifunctional Super fine powder grinder .It is widely used in pharmaceutics,chemical and foodstuff,etc.
It can be used for making sugar powder , salt powder and crystal material.
Spice industry like chili , pepper , pimento,coriander,cumin , cinnamon , cardamom , Star anise, celery seed , , ginger , Licorice ,etc
Grains like rice , chaff , corn , Sweet potato bran , cocoa bean,coffee ,etc
Chemical like resin,plastic .......
Advantages
1 Material,usually all material use stainless steel 304,if you want stainless steel 316,we can make for you.
2 Automatic operating :just press button
Easy to clean,usually use water cooling and air compressor is ok .

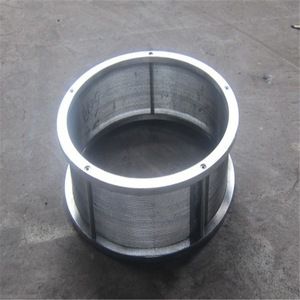

3 Final powder size range from 12 mesh -120 mesh,we have screener like 12 mesh,20mesh,30mesh,40mesh,60mesh,80mesh,100mesh,120 mesh for your choose.

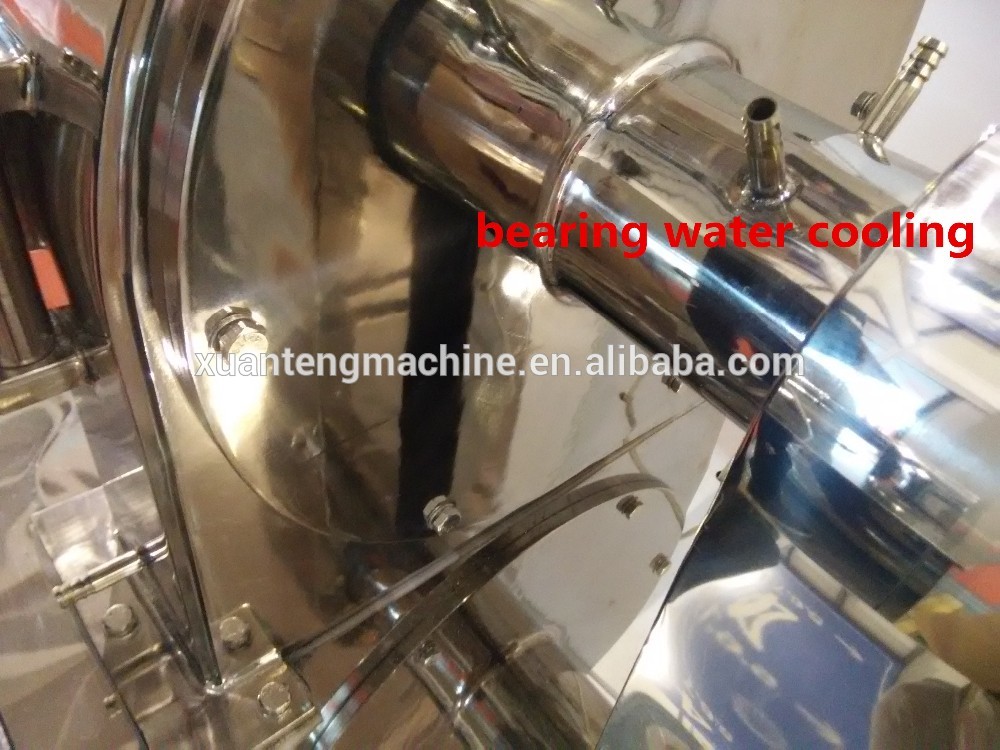

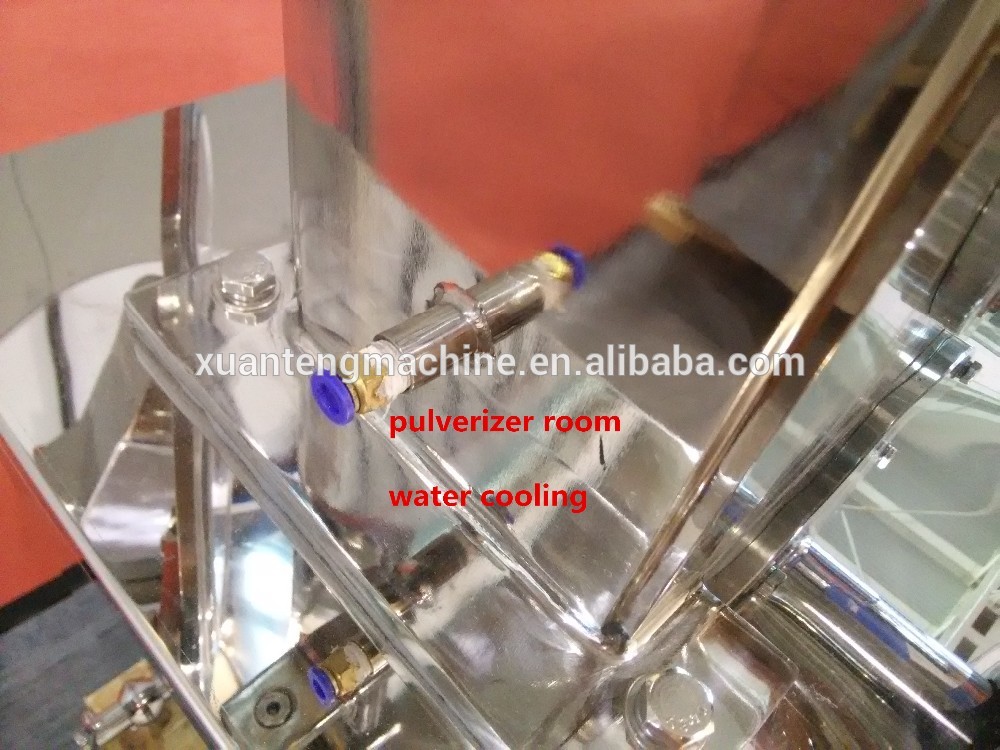

4 Machine has water cooling system to reduce working temperature,so can working long hours.
| WF Series Universal Crusher | |||||
| Model | 180 | 200 | 300 | 400 | 600 |
| Capacity (kg/h) | 5-30 | 20-150 | 30-300 | 40-800 | 60-1200 |
| Speed of principal axis (r/min) | 5200 | 4500 | 3800 | 3400 | 2600 |
| Size of input granules (mm) | <5 | <6 | <10 | <12 | <15 |
| Fineness of products (Mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
| Power (kw) | 2.2 | 4 | 7.5 | 11 | 22 |
| Weight (kg) | 80 | 200 | 320 | 550 | 960 |
| Overall Size(L×W×H) mm | 400*400*800 | 650*500*1250 | 750*600*1450 | 900*750*1650 | 1000*950*1800 |

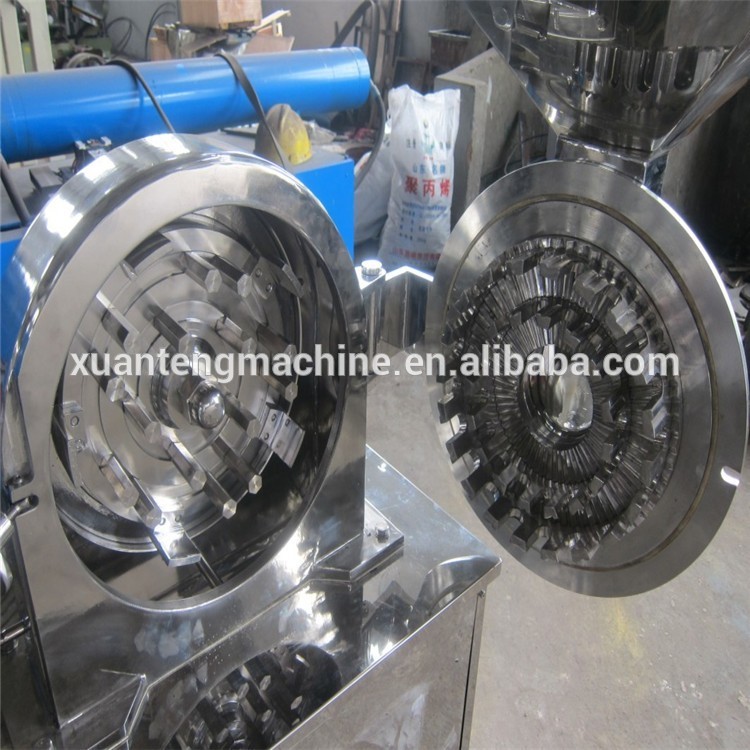

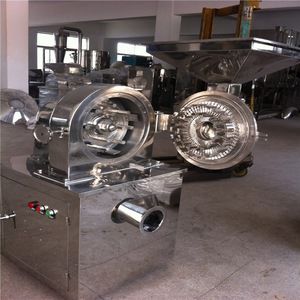

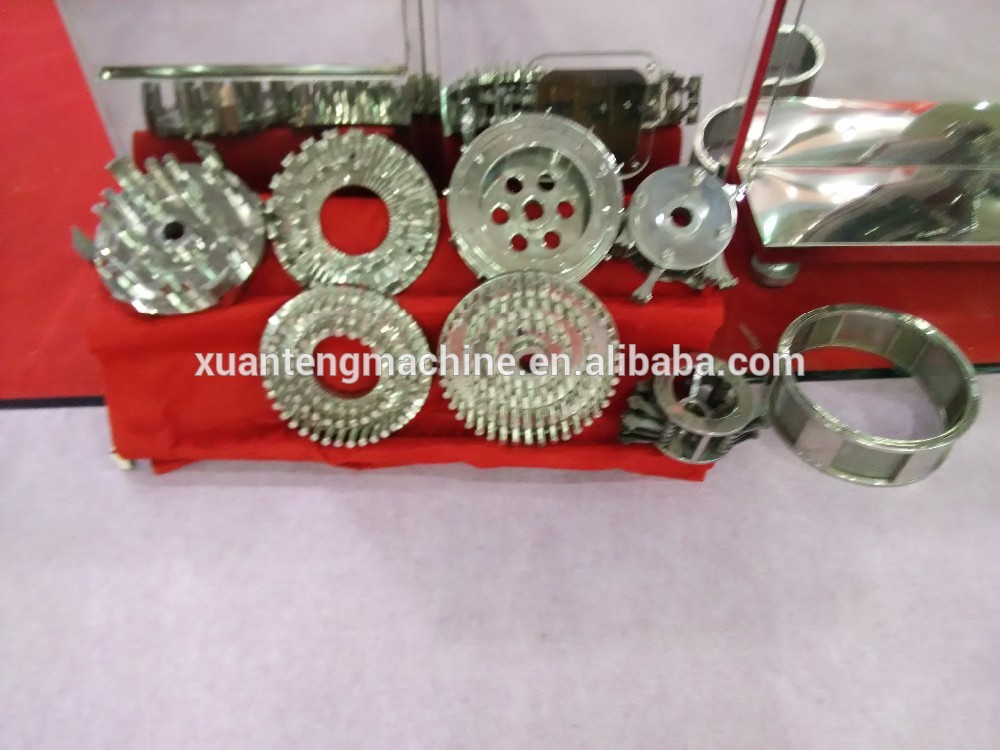

Different material use different knives
1) Professional advice and rich experience help to choose machine.
2) Lifelong maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
4) Any problem before or after delivery, you could find and talk with us anytime.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine.
1. What material do you want to grind?is it dry, what is the size of raw material ?
2. What capacity you expect ? (kg/h) What mesh or mm or micron(size) of the powder you want?
The more meshes ,the lower capacity.
3. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)
